Skynest
FU639317 Almond

Skynest C

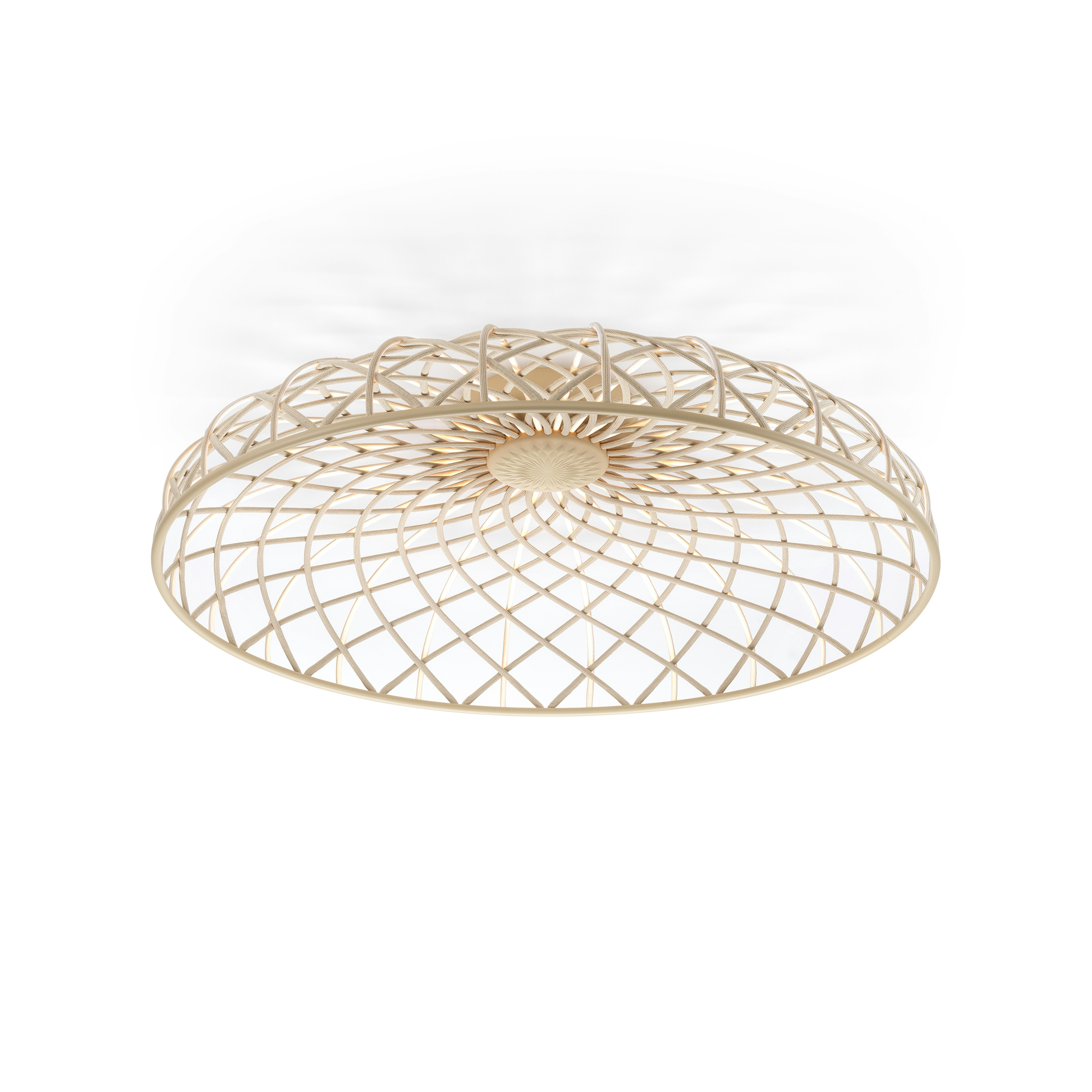

Diffuse lighting hanging appliance. The dome is a combination of luminous and dark elements arranged into a network and formed of core structures covered with a thin interwoven colourful tubular mesh made from recycled and recyclable fabric produced from polyester. Every single luminous element is powered by special micro-connectors located at the top of the dome and is covered with a two-tone mesh, while the side facing the inside of the dome is always white in order to allow for optimal light emission from the LED module. The appliance is fitted with a built-in balancing system at the top of the dome which helps adjust its balance, making it perfectly stable. The bottom of the dome is completed by an aluminium ring that keeps the dome’s entire network structure in place through a simple snap-fit system. The product is assembled with absolutely no glue so it can be fully separated to be recycled in the future and in case of any repairs or replacements. Available lamp finishes: Blue Tourmaline, Almond, Anthracite or Brick Red.Fitted with built-in electronics that allow for the use of different dimmer systems: 0-10V / 1-10V / DALI / PUSH."

57W - 1385lm - 2700-2900K - CRI> 90

Technical Drawing
Skynest-ceiling-marcel_wanders-flos-spech-tech-300x263-in
Main specifications
EAN
8059607076378
Mounting
Ceiling
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
57
System power (W)
57
System flux (lm)
1385
Schematic light drawing
F6393017WSKYNEST-C-BEI_57W-LED
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700-2900
CRI>
90
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmer on board
Dimming interface
Dimmer Integrated
Physical
Color
Almond
Length (in)
35.59
Canopy color
Almond
Canopy lenght/diameter (in)
8.504
Canopy height (in)
2.283
Net weight (lb)
8.82
Package height (in)
12.6
Package width (in)
39.37
Package length (in)
39.37
Package volume (in)
19527.67
IP internal
20
CE
Canada & USA
Risk 0
20
Notes

Class 2

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE4 Replaceable (LED only) light source by an end-user

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F6393003-skynest-c-flos-boom
01. Assembly Led Arm for Skynest Suspension Almond
RF34719
02. Led dimmer kit
RF35452
03. Skynest Suspension Driver 100W 100-277V
RF33061
04. Rose for Skynest Ceiling Almond
RF35173
