Skynest
F6394003 Blue Tourmaline

Skynest Motion

Diffuse lighting hanging appliance. The dome is a combination of luminous and dark elements arranged into a network and formed of core structures covered with a thin interwoven colourful tubular mesh made from recycled and recyclable fabric produced from polyester. Every single luminous element is powered by special micro-connectors located at the top of the dome and is covered with a two-tone mesh, while the side facing the inside of the dome is always white in order to allow for optimal light emission from the LED module. The appliance is fitted with a built-in balancing system at the top of the dome which helps adjust its balance, making it perfectly stable. The bottom of the dome is completed by an aluminium ring that keeps the dome’s entire network structure in place through a simple snap-fit system. The product is assembled with absolutely no glue so it can be fully separated to be recycled in the future and in case of any repairs or replacements. Available lamp finishes: Blue Tourmaline, Almond, Anthracite or Brick Red. Plastic structure painted with the same finish as the lamp, fitted with built-in electronics and dimmer.

57W - 1385lm - 2700-2900K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Suspension-Skynest-Motion
Main specifications
EAN
8059607057193
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
57
System power (W)
57
System flux (lm)
1385
Schematic light drawing
F6394003WSKYNEST-MOTION-AZZ_57W-LED
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700-2900
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
100-240
Driver
Integrated
Dimmable
Yes
Dimming type
Electronic 48V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Physical
Color
Blue Tourmaline
Length (in)
90.55
Cord color
Light Blue
Cord length (in)
236.220
Canopy color
Blue Tourmaline
Canopy lenght/diameter (in)
0.709
Canopy height (in)
0.984
Net weight (lb)
13.23
Package volume (in)
20039.3
IP internal
20
CE
RG
UL
EAC
CMIM
UKCA
IECEC
RETILAP

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE4 Replaceable (LED only) light source by an end-user

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

F6394003-skynest-motion-flos-boom
01. Skynest Motion – Light blue ceiling rose and steel cable assembly
RF6391003
02. Assembly Led Arm for Skynest Suspension Blue Tourmaline
RF34718

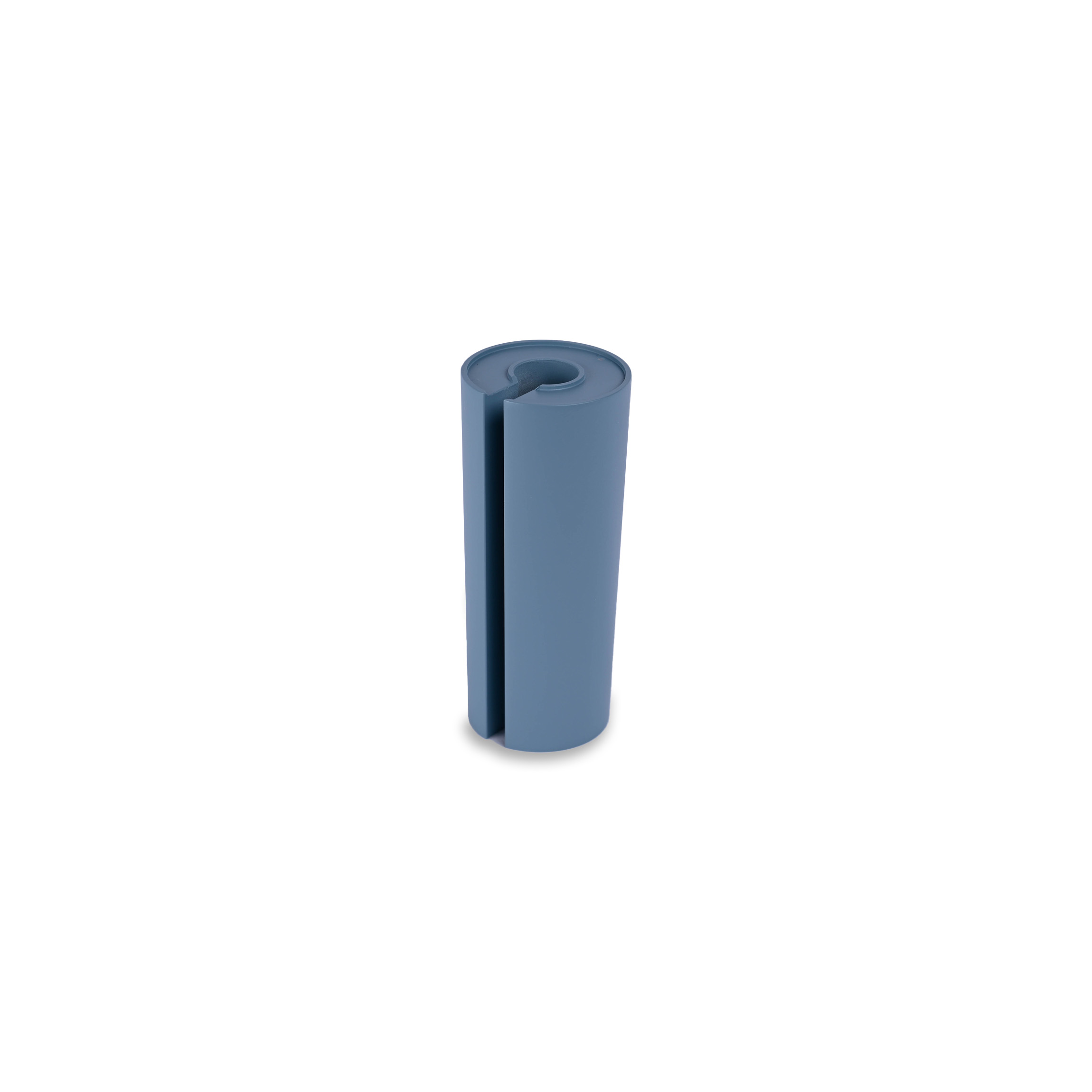

03. Skynest Motion Light blue counterweight
RF35048
04. Skynest Motion Light blue emc dimmer assembly
RF37532
05. Black plug assembly kit & 48V driver
RF6600130
