Spine
F02523CAU30 Black

Spine T 1 Ultra Hp

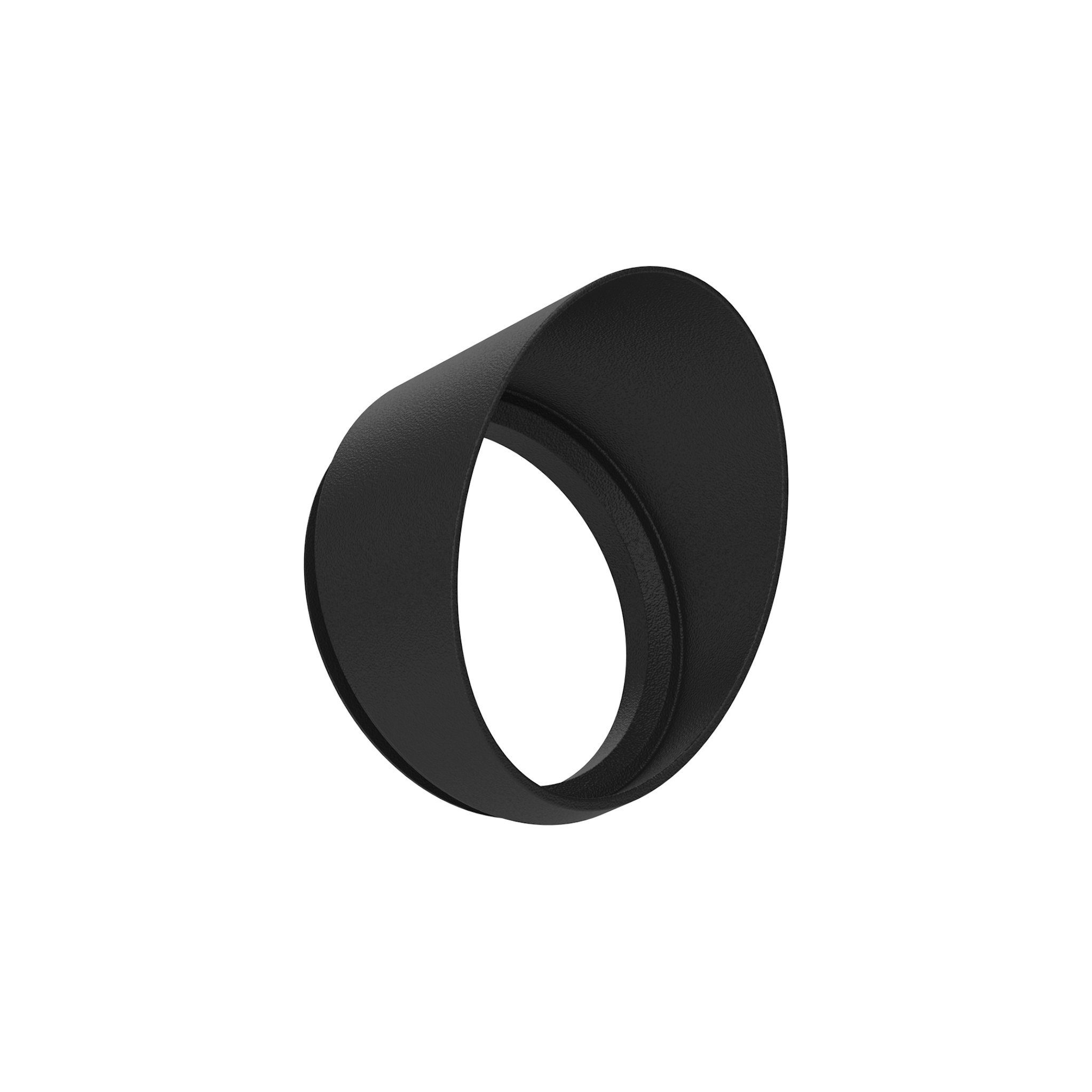

Energy-efficient Power LED source included Equipped with an integrated snoot for higher visual comfort: the asymmetrical cut visor is available as an accessory. Collimators are available as an accessory to modify the beam opening. Integrated electric power supply ON/OFF. Integrated support for pole fixing, for poles with a diameter between 60 and 120 mm and a maximum thickness of 3 mm. Equipped with a 5 m neoprene cable (10 m upon request) for remote connection. To guarantee its water tightness, it is recommended to use flexible cables designed for outdoor use. Upon request: 1-10 V or DALI dimmable version with 24 Vdc remote power supply.

630lm - 3000K - CRI> 80 - Beam° 27

Find a Flos store
Request a quote
Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Pole_Top-Spine-T_1_Ultra
Main specifications
EAN
8054793414171
Mounting
Pole Top
Environments
Outdoor wet location
Light Source Type
LED
Light sources included
Yes
LED type
Power LED
System power (W)
10.5
Source flux (lm)
966
System flux (lm)
630
Schematic light drawing
F02523CA0XX
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
27
Beam angle C90-270 (º)
27
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
110-127
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Physical
Color
Black
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
270
Cord length (in)
196.850
Net weight (lb)
1.98
Package height (in)
10.43
Package width (in)
11.42
Package length (in)
8.07
Package volume (in)
961.37
IP internal
66
IP external
66
EAC
CE
Canada & USA
Risk 1
66
IK09 - 10.00 Joule
Notes

5 m neoprene cable (10 m upon request) for remote connection.

Download

Family spec sheet
Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

Accessories & Power Supply

Optional (10)
