Spine

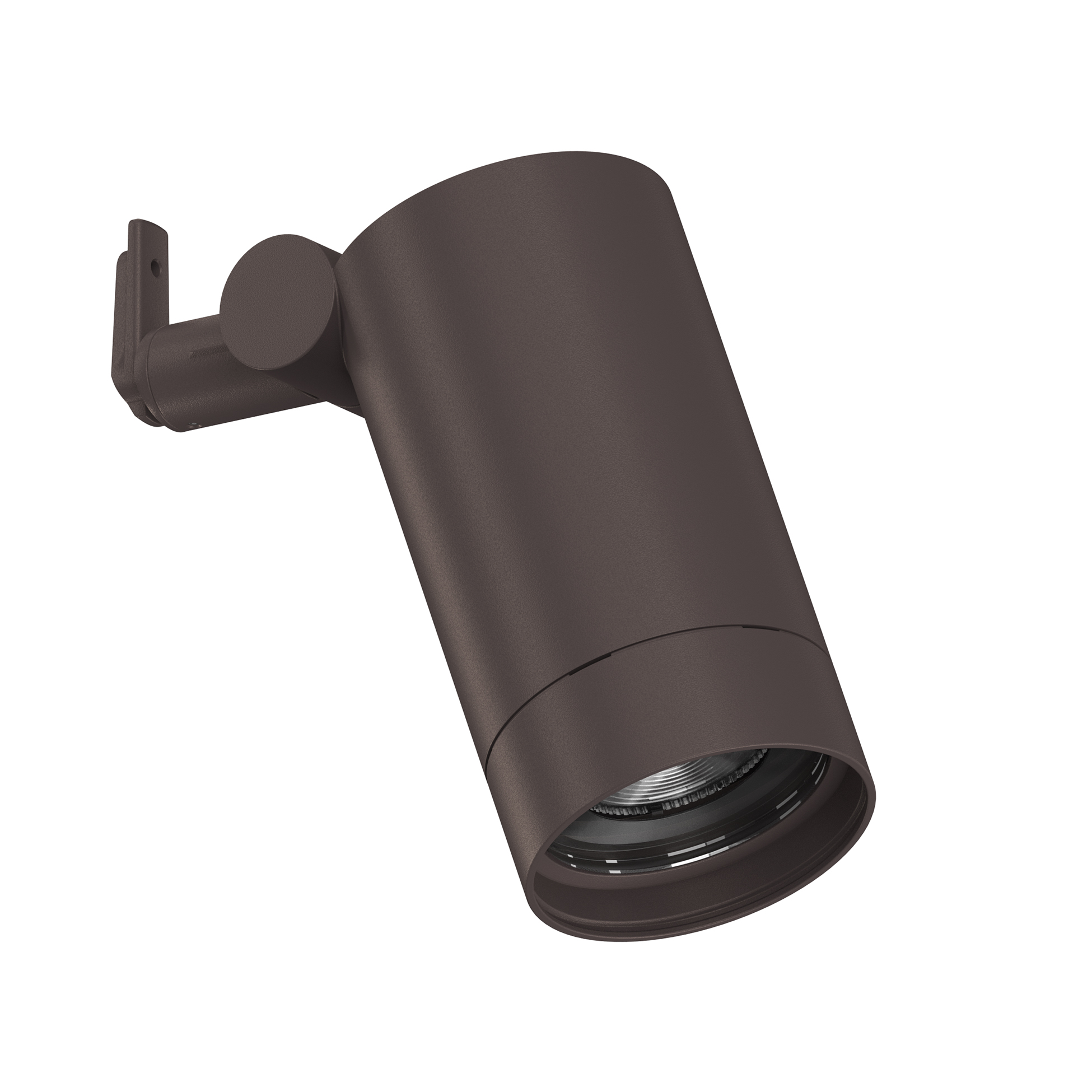

F02624EBU18Deep BrownSpine T 2 Ultra Hp Dimmable 1-10V
Designed by Vincent Van Duysen, 2021

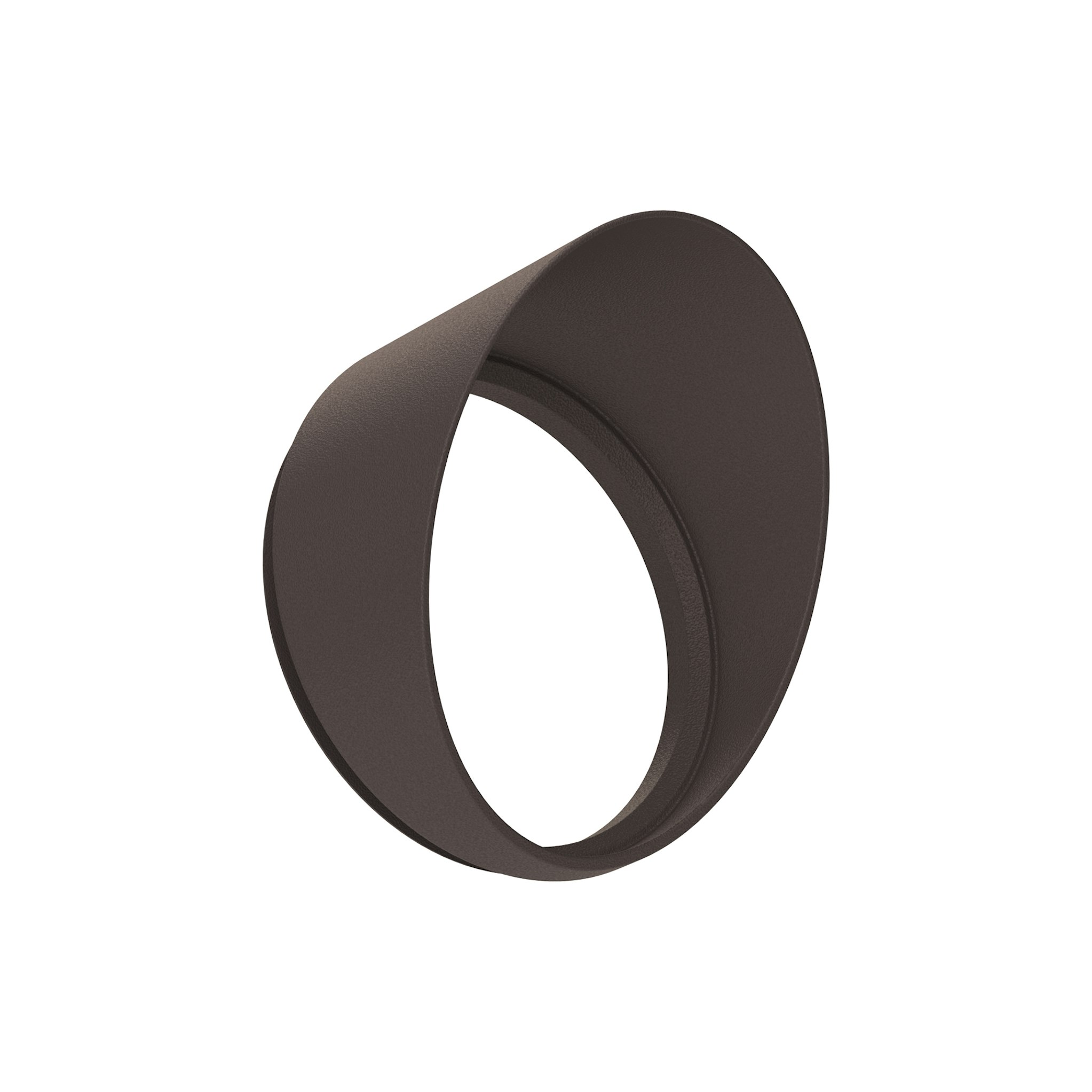

Energy-efficient Power LED source included Equipped with an integrated snoot for higher visual comfort: the asymmetrical cut visor is available as an accessory. Collimators are available as an accessory to modify the beam opening. Integrated electric power supply ON/OFF and adjustable 1-10 V or DALI. Integrated support for pole fixing, for poles with a diameter between 60 and 120 mm and a maximum thickness of 3 mm. Equipped with a 5 m neoprene cable (10 m upon request) for remote connection. To guarantee its water tightness, it is recommended to use flexible cables designed for outdoor use.
1411lm - 4000K - CRI> 80 - Beam° 52
Technical Drawing
Main specifications
EAN
8054793455891
Mounting
Pole Top
Environments
Outdoor wet location
Light Source Type
LED
Light sources included
Yes
LED type
Power LED
System power (W)
17
Source flux (lm)
1868
System flux (lm)
1411
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
4000
CRI>
80
Beam angle C0-180 (º)
52
Beam angle C90-270 (º)
52
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
110-127
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 1-10V
Dimming interface
Dimmer Integrated
Physical
Color
Deep Brown
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
270
Cord length (in)
0.197
Net weight (lb)
5.51
Gross weight (lb)
6.61
Package height (in)
8.07
Package width (in)
10.43
Package length (in)
11.42
Package volume (in)
961.37
IP internal
66
IP external
66
Notes
5 m neoprene cable (10 m upon request) for remote connection.
