Stylos
FU631004 White

Stylos

First designed by Achille Castiglioni in 1984, the Stylos floor lamp illuminates with a striking simplicity that is anything but ordinary. A halogen floor lamp lights the column at its base, and an incandescent light provides additional diffused lighting that glows through the top. Each bulb is operated via a separate on/off switch, and the metallic base is finished with silver and weighted to prevent toppling. The halogen lamp source emits diffused and reflected light. Inspiration behind the design: Designer Achille Castiglioni drew his inspiration from the ordinary - the everyday materials that are a part of daily life. His philosophy of "less is more" is evident in his designs, hallmarked by the minimalist use of materials to craft larger than life pieces.

Halogen - 2 x 100W

Technical Drawing
stylos-floor-castiglioni-flos-F6310004-spech-tech-300x263-in
Main specifications
EAN
8059607011935
Mounting
Floor
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp type
T, PAR38
Lamp holders
E26
Number of lamps
2
Power (W)
100
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120
Dimmable
No
Dimming interface
Switch Integrated (Not Dimmable)
Plug type
Type B
Batteries inside
No
Physical
Color
White
Length (in)
6.69
Cord color
Black
Cord length (in)
112.205
Net weight (lb)
21.72
Package volume (in)
9432.84
IP internal
20
20

Download

Tech spec pdf
Mounting instructions

Technical Drawings

2D
3D

Spare Parts

01. Ring Nut Lamp Holder
RF30384

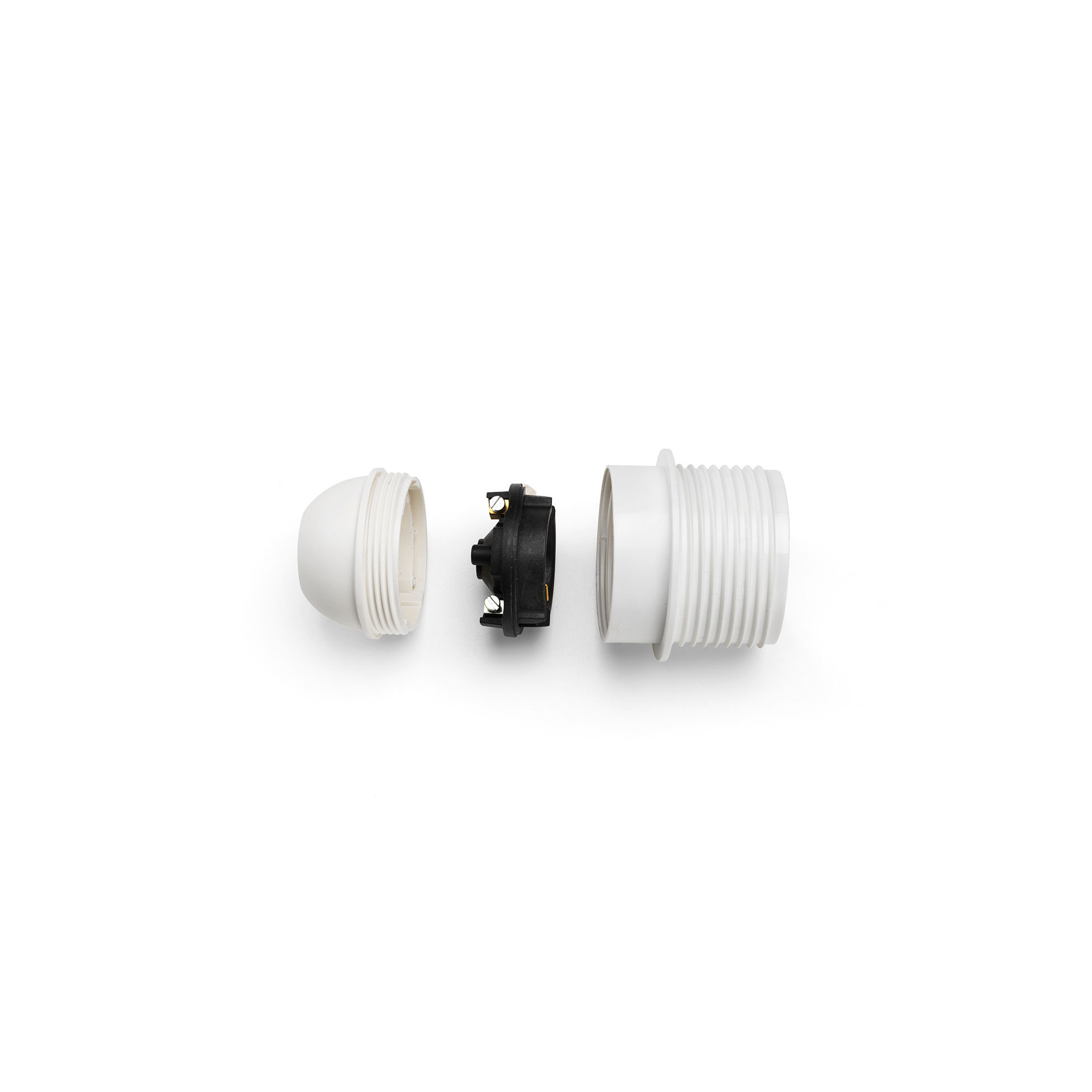

02. Stylos top E26 lampholder
RF32716
03. Stylos external diffuser
RF6330000

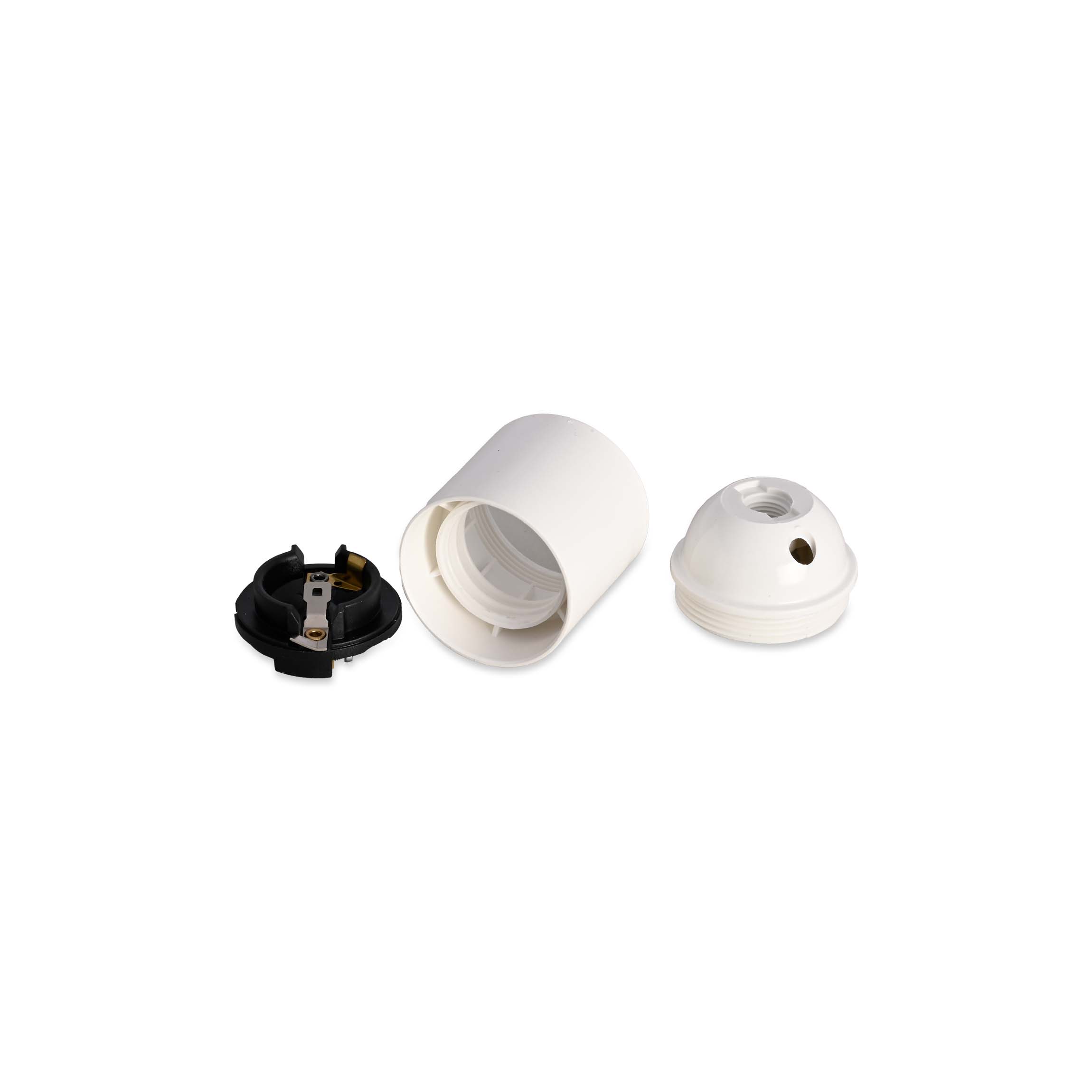

04. E26 lamp holder assembly
RF32715
06. Stylos Double Black switch
RF03631
07. Stylos Kit of n.3 diffuser bracket supports
RF6330100
08. Stylos Polycarbonate spacer
RF05861
09. Stylos Kit of screws and metal bracket for diffuser assembly
RF6330200
