Superarchimoon
FU636741 Green Wall

Superarchimoon outdoor Green wall

Floor lamp for outdoor use providing direct and dif-fused light. External diffuser obtained from braided colored PVC tubes, internal frame in polyester-painted aluminum tubular. Internal diffuser in injection-molded opal polycarbonate. The structural parts of the luminaire (base support, diffusers support, arms, brackets, levers and tie rods) have been treated with a chemical conversion for enhanced weather resistance. The body is painted in grey. Springs and main mechanical components are also made with special materials for good weather resistance.

Halogen - 250W - Beam° 74

Find a Flos store
Request a quote
Also available in:
Technical Drawing
Superarchimoon_outdoor-in
Main specifications
Mounting
Floor
Environments
Outdoor wet location
Light Source Type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp type
T Shielded
Lamp holders
E26
Number of lamps
1
Power (W)
250
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
Beam angle C0-180 (º)
74
Beam angle C90-270 (º)
74
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Plug type
Type A
Batteries inside
No
Physical
Color
Green Wall
Orientation
Adjustable
Length (in)
31.1
Net weight (lb)
353.4
Package volume (in)
88877.34
IP internal
55
Notes

Light source not included. HSGS E27: 1x250W or 1 LED: 21W - 2450 lm - 3000K
We recommend using a connection system with a degree of protection greater than or equal to the degree of protection of the luminaire.

Download

Family spec sheet
Tech spec pdf
Mounting instructions

Spare Parts

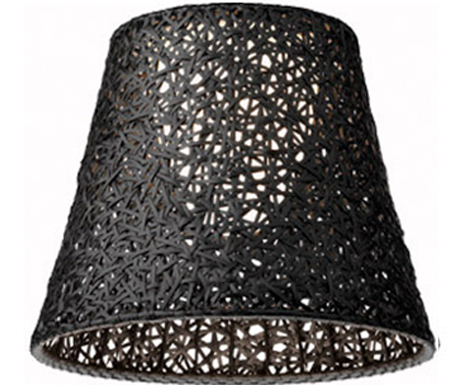

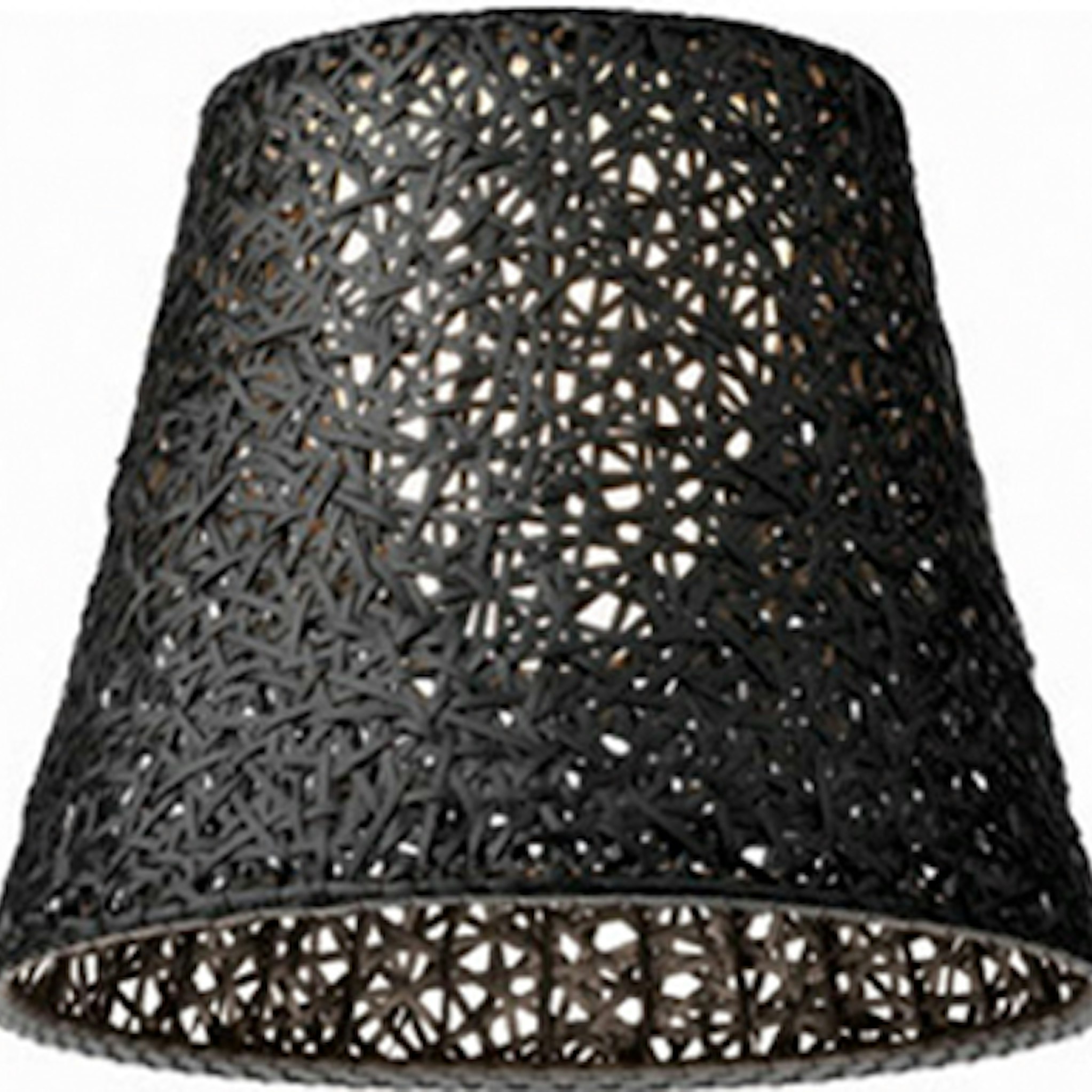

01. Superarchimoon/Romeo C3 Outdoor Diffuser Green Wall
F6377041
02. Internal diffuser for Panama & Green Wall version
RF6377100
03. Superachimoon Outdoor Cover
RF6376200
04. Superarchimoon Floor support bag kit
RF6372200
