SuperWire
D301F01C3EAF2 Steel

SuperWire F

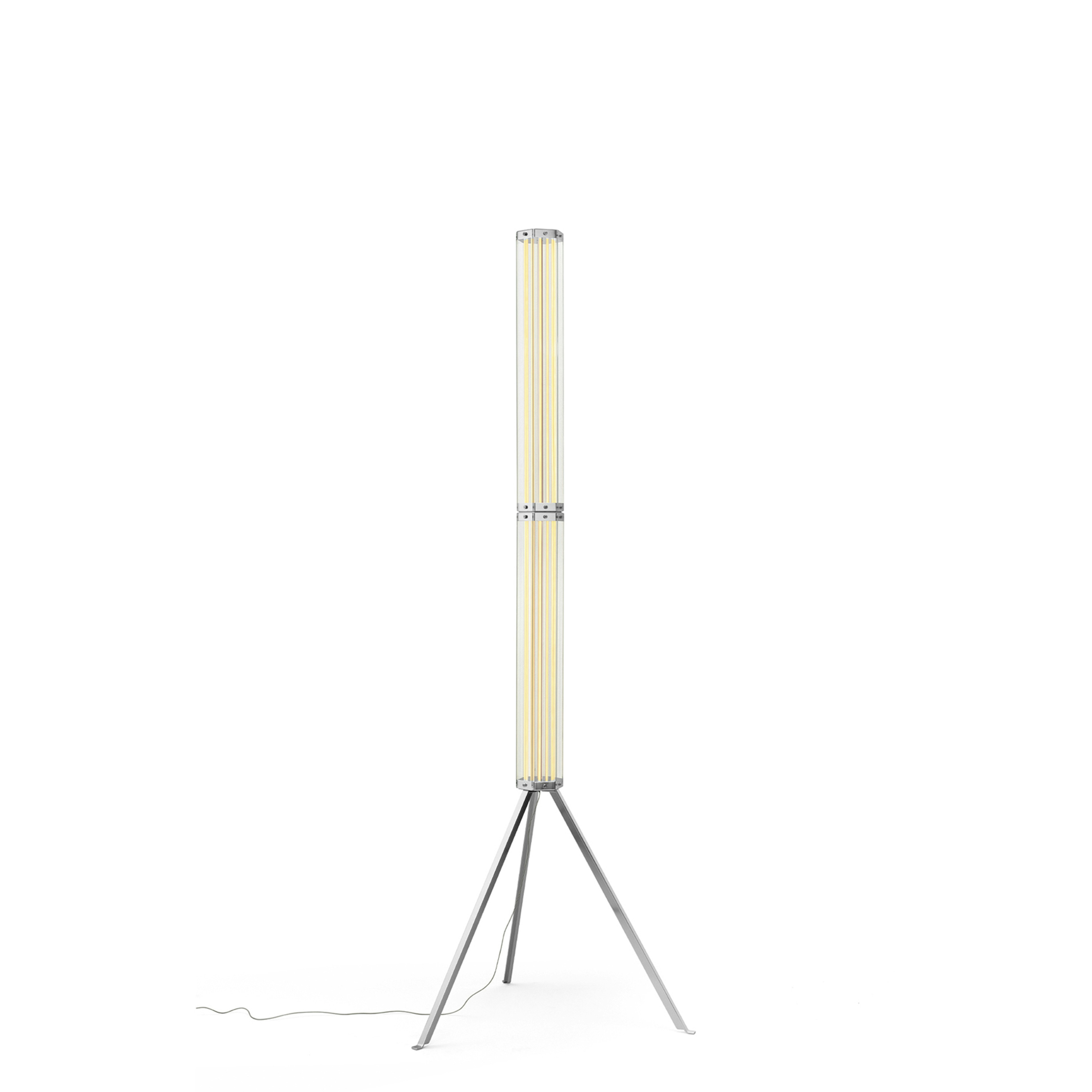

Floor lamp emitting diffused light. Structure of planar glass panels joined by polished aluminium elements, forming hexagonal modules stacked on a steel tripod base. Equipped with a custom-made light source that emits warm, uniform light along its entire length and can be easily removed for replacement or repair.

Formafantasma’s SuperWire is born from the designers’ experimentation with LED technology, resulting in a modular collection that merges an industrial attitude with timeless design codes. Stemming from a complex creative process, it reflects the studio’s blend of poetic aesthetics with environmental commitment and is a rare example of a lighting design with a removable, replaceable LED light source. The floor version is a tribute to the historic Luminator by the Castiglioni brothers.

56W - 4134lm - 2700K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Floor-Superwire
Main specifications
EAN
8059607068304
Mounting
Floor
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Filament LED
Power (W)
56
System power (W)
56
System flux (lm)
4134
Schematic light drawing
D301F01C3EAF2_SUPERWIRE-F-S3_modulo_long
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Remote included
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Dimmer Integrated
Plug type
Type A, Type C, Type G
Batteries inside
No
Physical
Color
Steel
Length (in)
31.18
Cord color
Clear
Cord length (in)
118.110
Net weight (lb)
27.12
Gross weight (lb)
40.35
Package volume (in)
8593.64
IP internal
20
CE
RG
UL
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

ULD
LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE4 Replaceable (LED only) light source by an end-user

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

D301F01C3EAF2-Superwire-F-flos-boom
01. Superwire Floor/Suspension Long glass plate and bushings
RF301F200
02. Superwire Floor/Suspension Long glass plate and bushings kit 6 pcs
RF301F300
03. Superwire Floor/Suspension Led L750 40MA/42VDC/27K filament
RF301F400
04. Superwire Floor/Suspension Led L750 40MA/42VDC/27K filament kit 6 pcs
RF301F500
05. Superwire Floor Brill leg assembly
RF301F164
06. Black plug assembly kit & 48V driver
RF6600130
07. Superwire Floor Switch dimmer assembly 48V
RF37195
08. Superwire Kit with special screws
RF301T100
09. Superwire F - Leg fixing screw kit
RF301F600
