Related to
SuperWire
D301S31C3UAF2SteelSuperWire S3
Designed by Formafantasma, 2025

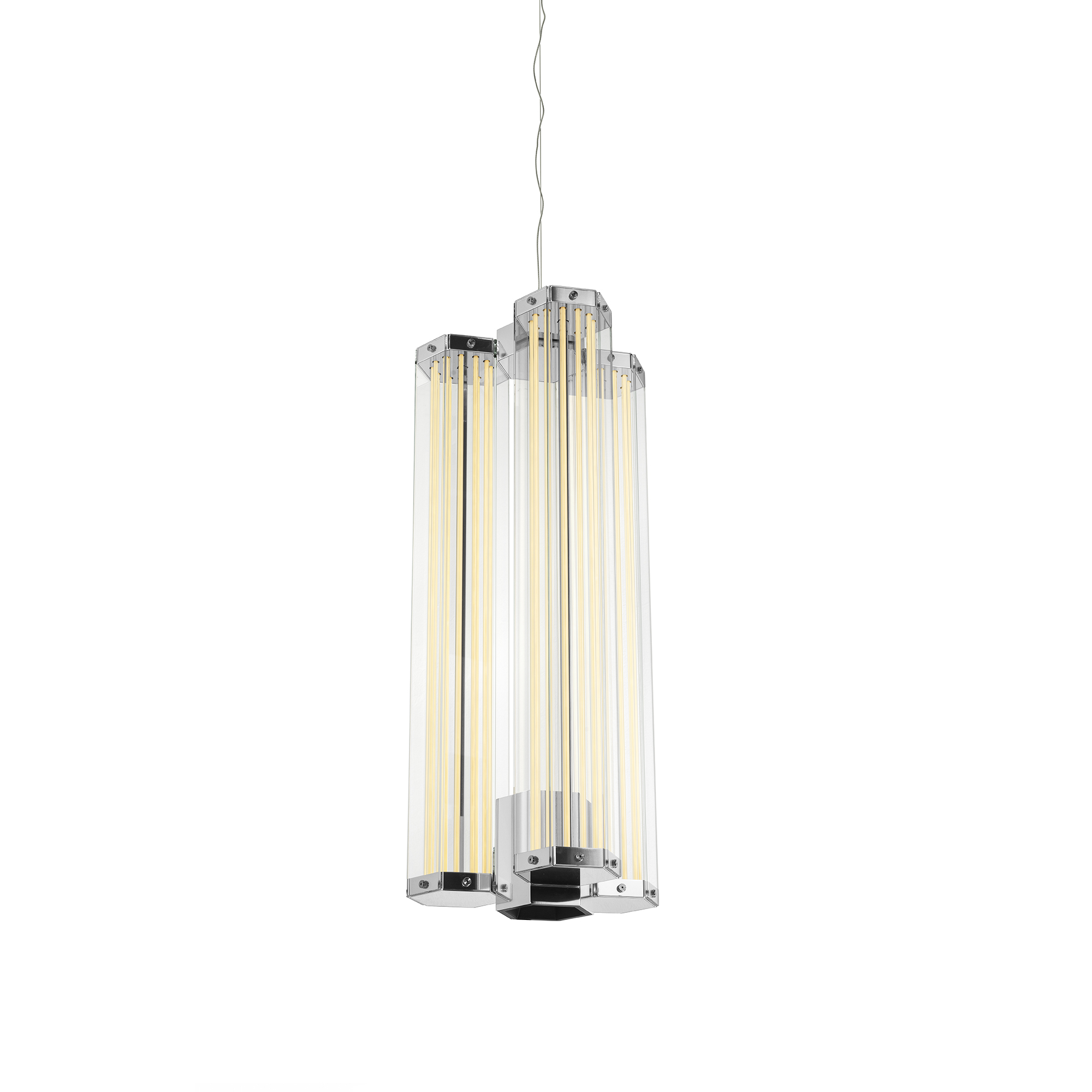

Suspension lamp emitting diffused light. Structure of planar glass panels joined by polished aluminium elements, forming hexagonal modules connected by a polished aluminum element. Equipped with a custom-made light source that emits warm, uniform light along its entire length and can be easily removed for replacement or repair.
90W - 6450lm - 2700K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607075616
Mounting
Suspension
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Filament LED
Power (W)
90
System flux (lm)
6450
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Remote included
Dimmable
Yes
Dimming type
Dimmable
Dimming interface
Dimmer Integrated
Batteries inside
No
Physical
Color
Steel
Length (in)
11.61
Cord length (in)
118.110
Canopy width (in)
8.504
Canopy height (in)
1.850
Net weight (lb)
39.68
Gross weight (lb)
61.07
Package volume (in)
19833.28
IP internal
20
Spare Parts
01. SuperWire S3 Ceiling rose brill cover
RF301S164
02. SuperWire S3 Plate assembly
RF36592
03. Super magnet diam. 22
RF37394
04. Skynest Power Supply 100W 100-277V
RF33061
05. Led dimmer kit
RF35452
06. Superwire Floor/Suspension Led L750 40MA/42VDC/27K filament kit 6 pcs
RF301F500
07. Superwire Floor/Suspension Led L750 40MA/42VDC/27K filament
RF301F400
08. Superwire Floor/Suspension Long glass plate and bushings kit 6 pcs
RF301F300
09. Superwire Floor/Suspension Long glass plate and bushings
RF301F200
10. Superwire Kit with special screws
RF301T100
