Related to
Tab
F6564031 Dark Green

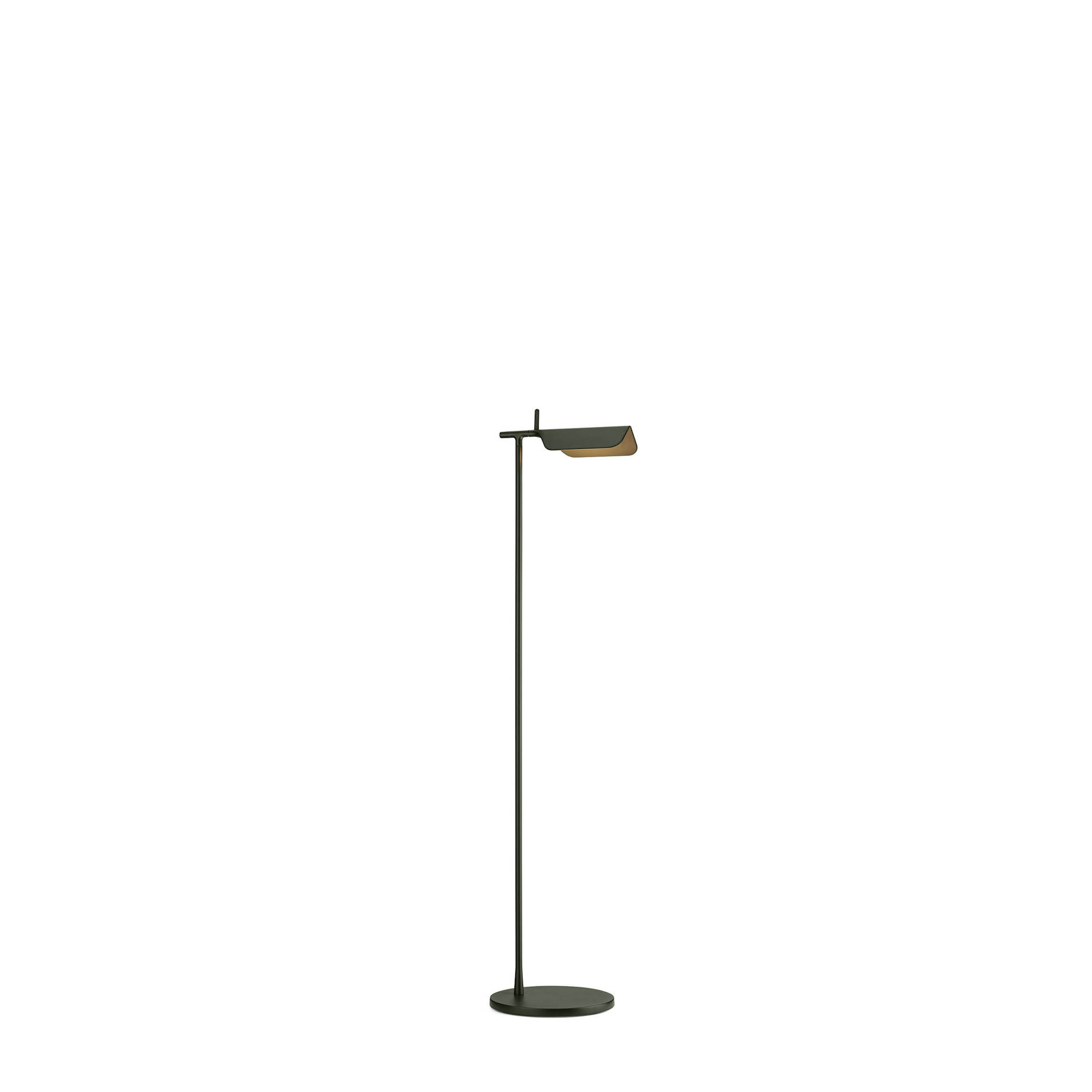

Tab Floor

A brand new edition of the Tab family, now with new capabilities in new colors. This new edition of Tab floor lamp has an adjustable head with a 90-degree rotation capability emitting non-dimmable, direct light. Available in 2 new finishes matte blue and matte dark green as well as the original black and white.Brought to life by the design duo of Edward Barber and Jay Osgerby originally designed in 2011, the Tab floor lamp is a tribute to the spirit of innovation.Lamp body painted with pressofused aluminum. Its multi-led diffuser is specially designed PMMA (Polymethyl methacrylate), created to avoid multi-shadow effect and dazzle.Inspiration behind the design: Designers Edward Barber and Jay Ogersby keep one goal in mind when they begin a creation: Challenge everything. When we are commissioned to design a product, we seek to re-evaluate the archetype, to challenge precedents. We always look at different ways in which products can be manufactured, not necessarily by using new materials or radical re-thinking, but maybe by using existing techniques in a more original or intelligent way.

9W - 347lm - 2700K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing_US-Luminaire-Floor-Tab
Main specifications
EAN
8059607006580
Mounting
Floor
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
9
System flux (lm)
347
Schematic light drawing
F65610WTAB_F_LED_9W-LED
Photometric
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Driver
Remote included
Dimmable
No
Dimming type
Electronic 24V
Dimming interface
Switch Integrated (Not Dimmable)
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Color
Dark Green
Length (in)
9.45
Cord color
Black
Net weight (lb)
4.19
Package height (in)
6.3
Package width (in)
12.99
Package length (in)
47.64
Package volume (in)
3898.7
IP internal
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
UKCA
Canada & USA
Risk 0
03 - Italy
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class D

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL3 Replaceable control gear by an end-user

Spare Parts

F6564031-tab-f-flos-boom
01. Black plug assembly kit & 24V driver
RF6600230
02. Locking key tool
RF13905
