Tatou
FU776409 White

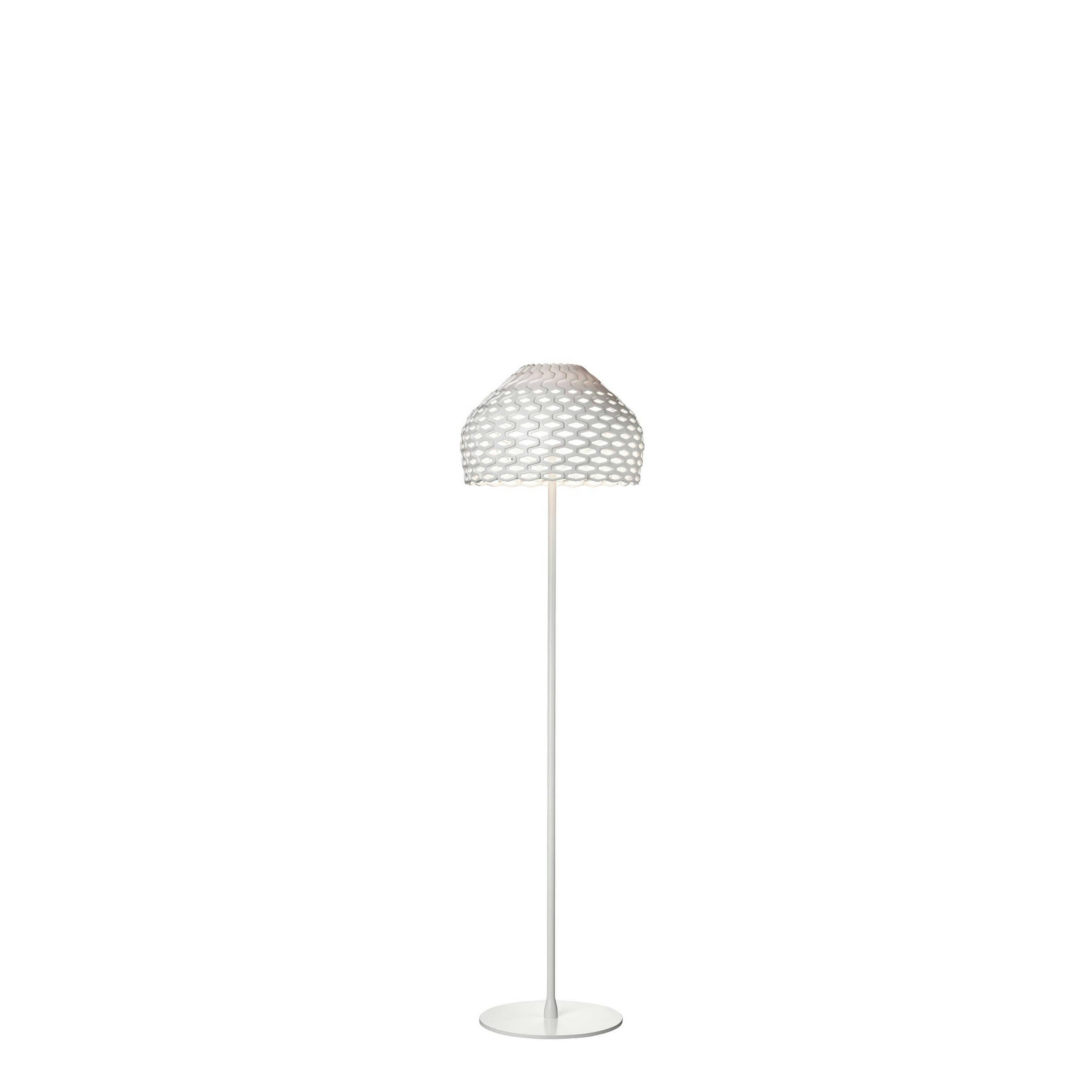

Tatou Floor

Its name is French for "armadillo," the unassuming animal whose brilliant structure keeps it protected-and makes it unique. Designer Patricia Urquiola conceptualized this floor lamp to play on the filtration of light, with remarkable results. The Tatou offers diffused light and has an exterior diffuser in PC (polycarbonate). Its internal diffuser is injection-printed opal PC. The support and base are painted steel. The lamp is dimmable.

Halogen - 150W

Also available in:
Technical Drawing
tatou-floor-urquiola-flos-F77640-spech-tech-300x263-in
Main specifications
Mounting
Floor
Environments
Indoor dry location
Light Source Type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp type
T Shielded
Lamp holders
E26
Number of lamps
1
Power (W)
150
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
60
Main voltage (Vac)
120
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type A
Batteries inside
No
Physical
Color
White
Length (in)
19.68
Cord color
Black
Cord length (in)
66.929
Net weight (lb)
36.16
Package volume (in)
36370.29
IP internal
20
UL
RETILAP

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Technical Drawings

2D
3D

Spare Parts

01. Floor-Suspension 2 white assembly diffuser
F7755009
02. Kit with screws for f-s2 opal reflector assembly
RF7755100
03. reflector assembly
RF7755200
04. 4W -25W Black Led Dimmer
RF28209
05. Kit of 5 white feed pads for base
RF3020100
