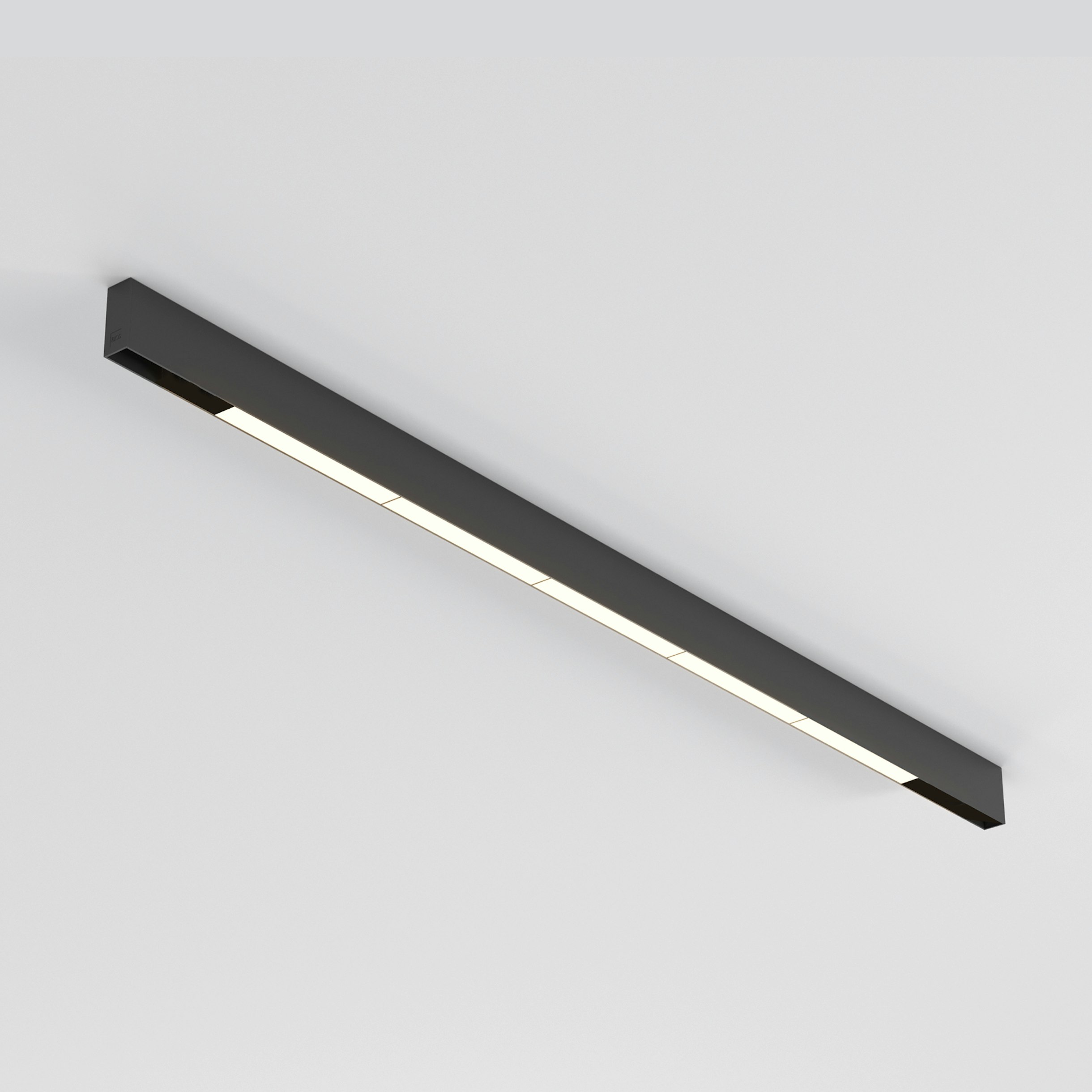

MJ002U2400001 BlackThe Running Magnet Kit 2 - Surface Version Light Stripe JA8 Black
Designed by FLOS Architectural, 2016
Fun with magnets and light. Simultaneously graphic and subtle, the Running Magnet is flexible, precise, and as creative as you. It is track lighting redesigned and elegantly refined. Light elements snap in place and connect automatically though the magic of magnets. Extruded aluminum housings create a clean 1-3/8-inch slot and preconfigured corners complete the system that can run up, around and across walls and ceilings. Finishes align perfectly, always, because Running Magnet can be easily cut on site (except Suspension Up&Down). Linear LED and accent fixtures, available in a variety of sizes, can be exchanged and repositioned quickly, without tools, with artistic results. The Running Magnet is perfect for retail displays where frequent changes are typical and absolute performance is mandatory.
LED - Top LED - 5 x 7.5W - 5 x 416lm - 2700K - CRI> 90 - Beam° 105
Technical Drawing
Main specifications
Schematic light drawing
Photometric
Electrical
Physical
EC to supply site cabling from driver to track location and site UL listed enclosure.
All components required for the installation are included with the system with the exception of 0-10V control.
The only permissible light modules compatible with JA8 are those specifically included in the Kit.
3000K, 3500K, 4000K and other CCT available but not cataloged. Consult factory for additional color temperatures.
Class 2
Replaceable (LED only) light source by a professional
