Easy Kap 30
New

Designed by FLOS Architectural

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Download Documentation

Product highlight

Functional minimalism

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Discover the Story


Luminaire

(96)

Orientation

Optical Type

Lumen Output (lm)

CCT (K)

Certifications

Colour


Easy Kap 30 Fixed. Set of 4 Spots

24 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7628.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	174	3000	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7628.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	185	3000	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7628.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	163	3000	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7627.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	198	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7627.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	203	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7627.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	192	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7626.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	208	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7626.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	215	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7626.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	202	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7625.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	211	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7625.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	218	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7625.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	200	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7623.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	169	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7623.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	179	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7623.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	158	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7622.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	193	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7622.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	197	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7622.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	186	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7621.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	202	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7621.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	209	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7621.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	196	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7620.GLA	Easy Kap Ø30 Fixed Set of 4 spots	3	205	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7620.B1A	Easy Kap Ø30 Fixed Set of 4 spots	3	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7620.74A	Easy Kap Ø30 Fixed Set of 4 spots	3	194	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

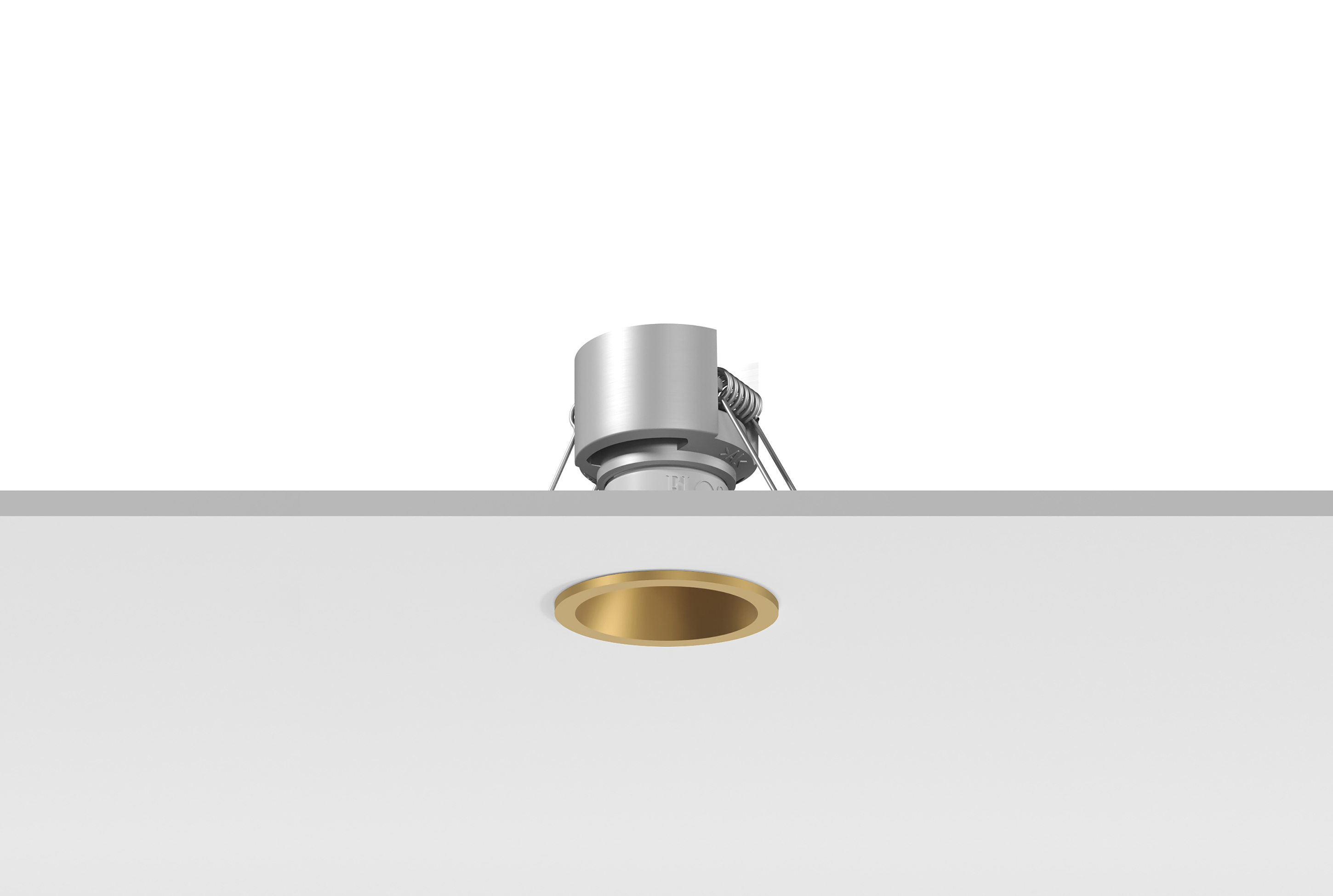

Easy Kap 30 Fixed. Set of 1 Spot

24 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7608.GLA	Easy Kap Ø30 Fixed	3	174	3000	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7608.B1A	Easy Kap Ø30 Fixed	3	185	3000	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7608.74A	Easy Kap Ø30 Fixed	3	163	3000	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7607.GLA	Easy Kap Ø30 Fixed	3	198	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7607.B1A	Easy Kap Ø30 Fixed	3	203	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7607.74A	Easy Kap Ø30 Fixed	3	192	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7606.GLA	Easy Kap Ø30 Fixed	3	208	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7606.B1A	Easy Kap Ø30 Fixed	3	215	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7606.74A	Easy Kap Ø30 Fixed	3	202	3000	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7605.GLA	Easy Kap Ø30 Fixed	3	211	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7605.B1A	Easy Kap Ø30 Fixed	3	218	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7605.74A	Easy Kap Ø30 Fixed	3	200	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7603.GLA	Easy Kap Ø30 Fixed	3	169	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7603.B1A	Easy Kap Ø30 Fixed	3	179	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7603.74A	Easy Kap Ø30 Fixed	3	158	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7602.GLA	Easy Kap Ø30 Fixed	3	193	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7602.B1A	Easy Kap Ø30 Fixed	3	197	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7602.74A	Easy Kap Ø30 Fixed	3	186	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7601.GLA	Easy Kap Ø30 Fixed	3	202	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7601.B1A	Easy Kap Ø30 Fixed	3	209	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7601.74A	Easy Kap Ø30 Fixed	3	196	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7600.GLA	Easy Kap Ø30 Fixed	3	205	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7600.B1A	Easy Kap Ø30 Fixed	3	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7600.74A	Easy Kap Ø30 Fixed	3	194	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

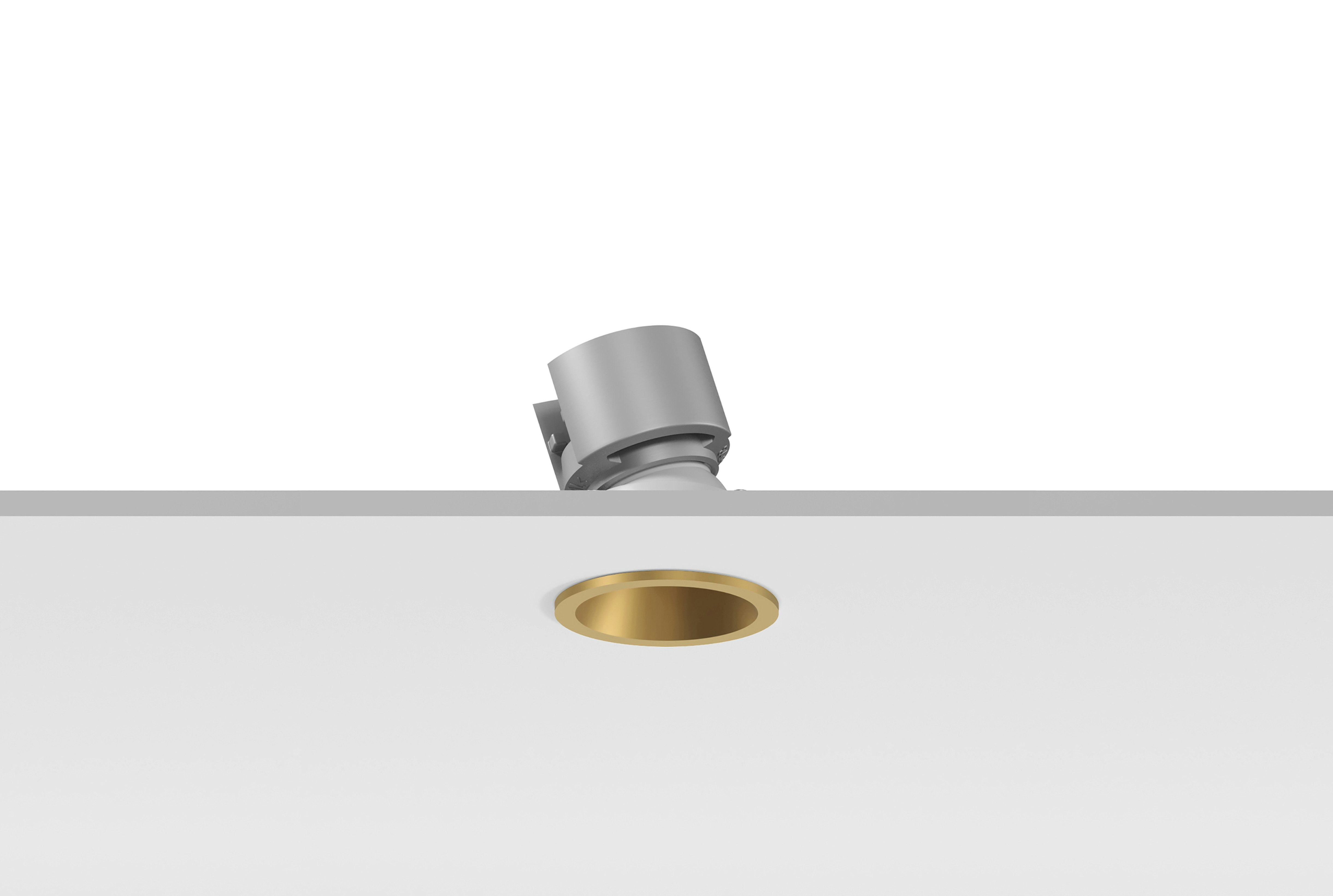

Easy Kap 30 Adjustable. Set of 4 Spots

24 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7638.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	177	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7638.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	187	3000	90	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7638.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	164	3000	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7637.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	191	3000	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7637.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	203	3000	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7637.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	190	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7636.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	205	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7636.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	213	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7636.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	203	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7635.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	207	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7635.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	218	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7635.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	203	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7633.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	172	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7633.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	182	2700	90	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7633.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	159	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7632.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	185	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7632.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	197	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7632.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	184	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7631.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	199	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7631.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	207	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7631.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	197	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7630.GLA	Easy Kap Ø30 Adjustable Set of 4 spots	3	201	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7630.B1A	Easy Kap Ø30 Adjustable Set of 4 spots	3	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7630.74A	Easy Kap Ø30 Adjustable Set of 4 spots	3	197	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

Easy Kap 30 Adjustable. Set of 1 Spot

24 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7618.GLA	Easy Kap Ø30 Adjustable	3	177	3000	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7618.B1A	Easy Kap Ø30 Adjustable	3	187	3000	90	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7618.74A	Easy Kap Ø30 Adjustable	3	164	3000	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7617.GLA	Easy Kap Ø30 Adjustable	3	191	3000	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7617.B1A	Easy Kap Ø30 Adjustable	3	203	3000	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7617.74A	Easy Kap Ø30 Adjustable	3	190	3000	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7616.GLA	Easy Kap Ø30 Adjustable	3	205	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7616.B1A	Easy Kap Ø30 Adjustable	3	213	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7616.74A	Easy Kap Ø30 Adjustable	3	203	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7615.GLA	Easy Kap Ø30 Adjustable	3	207	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7615.B1A	Easy Kap Ø30 Adjustable	3	218	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7615.74A	Easy Kap Ø30 Adjustable	3	203	3000	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7613.GLA	Easy Kap Ø30 Adjustable	3	172	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7613.B1A	Easy Kap Ø30 Adjustable	3	182	2700	90	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7613.74A	Easy Kap Ø30 Adjustable	3	159	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7612.GLA	Easy Kap Ø30 Adjustable	3	185	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7612.B1A	Easy Kap Ø30 Adjustable	3	197	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7612.74A	Easy Kap Ø30 Adjustable	3	184	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7611.GLA	Easy Kap Ø30 Adjustable	3	199	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7611.B1A	Easy Kap Ø30 Adjustable	3	207	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7611.74A	Easy Kap Ø30 Adjustable	3	197	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7610.GLA	Easy Kap Ø30 Adjustable	3	201	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7610.B1A	Easy Kap Ø30 Adjustable	3	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7610.74A	Easy Kap Ø30 Adjustable	3	197	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
