Easy Kap 50

Designed by FLOS Architectural

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Download Documentation

Product highlight

Functional minimalism

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Discover the Story


Luminaire

(54)

Orientation

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Certifications

Colour


Easy Kap 50 Fixed IP65

18 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7226.GL	Easy Kap 50 Fixed IP65 Optic Spot	7	595	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7226.B1	Easy Kap 50 Fixed IP65 Optic Spot	7	583	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7226.74	Easy Kap 50 Fixed IP65 Optic Spot	7	567	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7225.GL	Easy Kap 50 Fixed IP65 Optic Medium	7	485	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7225.B1	Easy Kap 50 Fixed IP65 Optic Medium	7	524	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7225.74	Easy Kap 50 Fixed IP65 Optic Medium	7	476	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7224.GL	Easy Kap 50 Fixed IP65 Optic Flood	7	476	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7224.B1	Easy Kap 50 Fixed IP65 Optic Flood	7	496	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7224.74	Easy Kap 50 Fixed IP65 Optic Flood	7	416	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7223.GL	Easy Kap 50 Fixed IP65 Optic Medium	7	452	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7223.B1	Easy Kap 50 Fixed IP65 Optic Medium	7	488	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7223.74	Easy Kap 50 Fixed IP65 Optic Medium	7	443	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7222.GL	Easy Kap 50 Fixed IP65 Optic Flood	7	511	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7222.B1	Easy Kap 50 Fixed IP65 Optic Flood	7	532	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7222.74	Easy Kap 50 Fixed IP65 Optic Flood	7	447	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7220.GL	Easy Kap 50 Fixed IP65 Optic Spot	7	554	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7220.B1	Easy Kap 50 Fixed IP65 Optic Spot	7	543	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7220.74	Easy Kap 50 Fixed IP65 Optic Spot	7	528	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

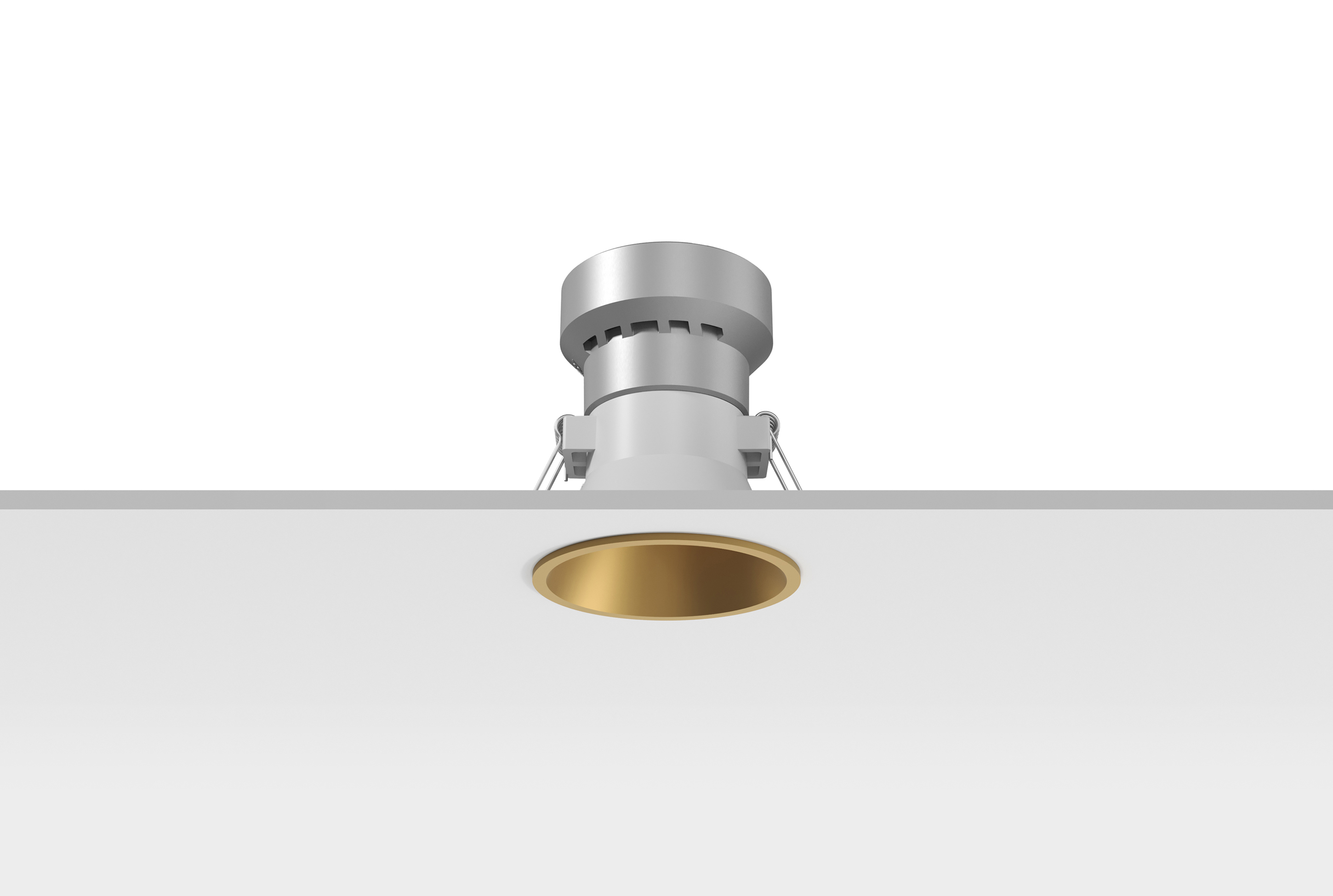

Easy Kap 50 Fixed

18 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7207.GL	Easy Kap Ø 50 Fixed Optic Flood	7.3	511	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7207.B1	Easy Kap Ø 50 Fixed Optic Flood	7.3	532	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7207.74	Easy Kap Ø 50 Fixed Optic Flood	7.3	447	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7206.GL	Easy Kap Ø 50 Fixed Optic Medium	7.3	485	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7206.B1	Easy Kap Ø 50 Fixed Optic Medium	7.3	524	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7206.74	Easy Kap Ø 50 Fixed Optic Medium	7.3	476	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7205.GL	Easy Kap Ø 50 Fixed Optic Spot	7.3	595	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7205.B1	Easy Kap Ø 50 Fixed Optic Spot	7.3	583	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7205.74	Easy Kap Ø 50 Fixed Optic Spot	7.3	567	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7202.GL	Easy Kap Ø 50 Fixed Optic Flood	7.3	476	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7202.B1	Easy Kap Ø 50 Fixed Optic Flood	7.3	496	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7202.74	Easy Kap Ø 50 Fixed Optic Flood	7.3	416	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7201.GL	Easy Kap Ø 50 Fixed Optic Medium	7.3	452	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7201.B1	Easy Kap Ø 50 Fixed Optic Medium	7.3	488	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7201.74	Easy Kap Ø 50 Fixed Optic Medium	7.3	443	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7200.GL	Easy Kap Ø 50 Fixed Optic Spot	7.3	554	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7200.B1	Easy Kap Ø 50 Fixed Optic Spot	7.3	543	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7200.74	Easy Kap Ø 50 Fixed Optic Spot	7.3	528	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

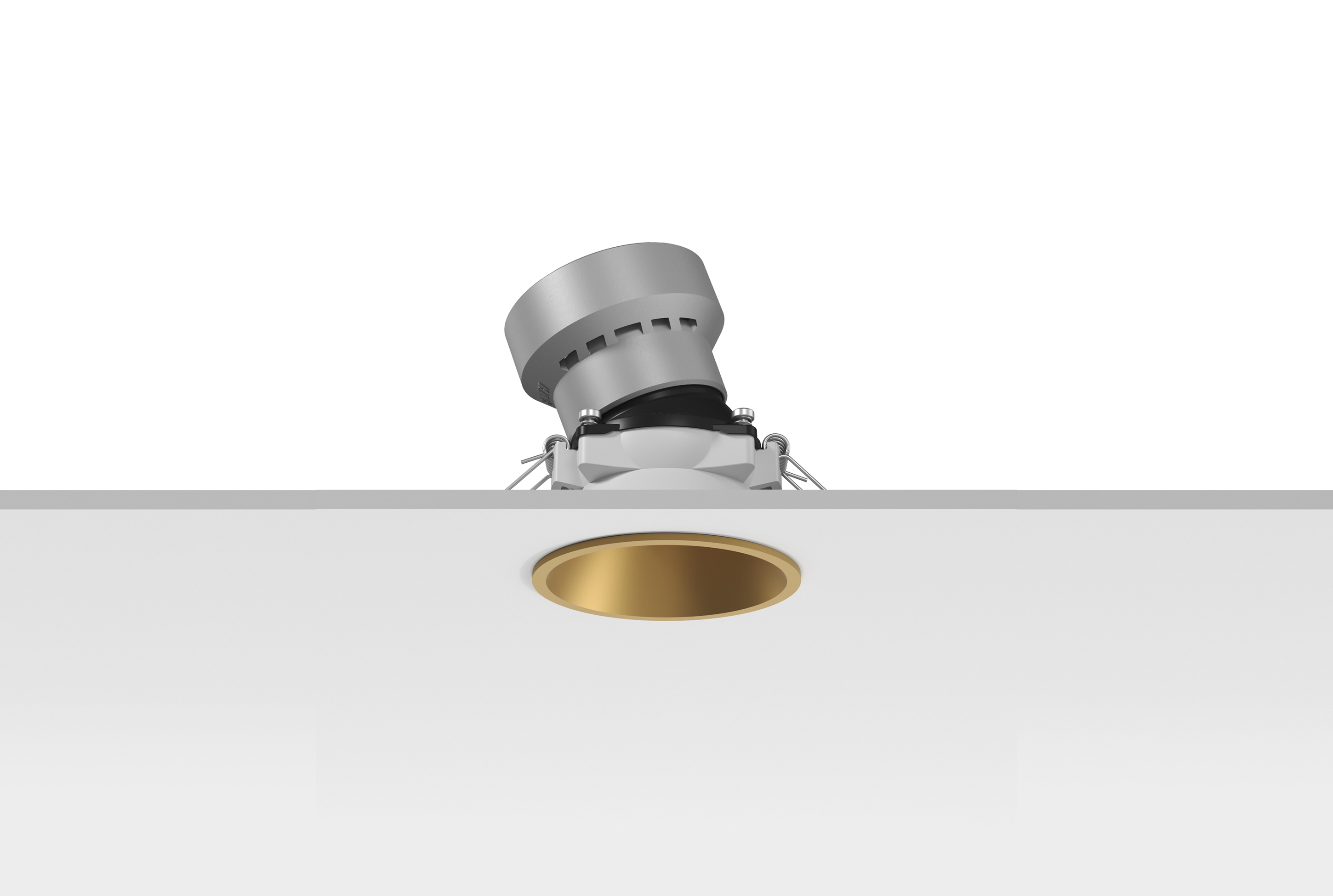

Easy Kap 50 Adjustable

18 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7217.GL	Easy Kap Ø 50 Adjustable Optic Flood	7.3	511	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7217.B1	Easy Kap Ø 50 Adjustable Optic Flood	7.3	532	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7217.74	Easy Kap Ø 50 Adjustable Optic Flood	7.3	447	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7216.GL	Easy Kap Ø 50 Adjustable Optic Medium	7.3	485	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7216.B1	Easy Kap Ø 50 Adjustable Optic Medium	7.3	524	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7216.74	Easy Kap Ø 50 Adjustable Optic Medium	7.3	476	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7215.GL	Easy Kap Ø 50 Adjustable Optic Spot	7.3	595	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7215.B1	Easy Kap Ø 50 Adjustable Optic Spot	7.3	583	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7215.74	Easy Kap Ø 50 Adjustable Optic Spot	7.3	567	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7212.GL	Easy Kap Ø 50 Adjustable Optic Flood	7.3	476	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7212.B1	Easy Kap Ø 50 Adjustable Optic Flood	7.3	496	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7212.74	Easy Kap Ø 50 Adjustable Optic Flood	7.3	416	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7211.GL	Easy Kap Ø 50 Adjustable Optic Medium	7.3	452	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7211.B1	Easy Kap Ø 50 Adjustable Optic Medium	7.3	488	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7211.74	Easy Kap Ø 50 Adjustable Optic Medium	7.3	443	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7210.GL	Easy Kap Ø 50 Adjustable Optic Spot	7.3	554	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7210.B1	Easy Kap Ø 50 Adjustable Optic Spot	7.3	543	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7210.74	Easy Kap Ø 50 Adjustable Optic Spot	7.3	528	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
