Light Shadow Spot 45

Designed by FLOS Architectural

LED accent lighting module for installation in The Tracking Magnet system.
For wireless control of luminaires, please select Casambi integrated versions.

Download Documentation

Product highlight

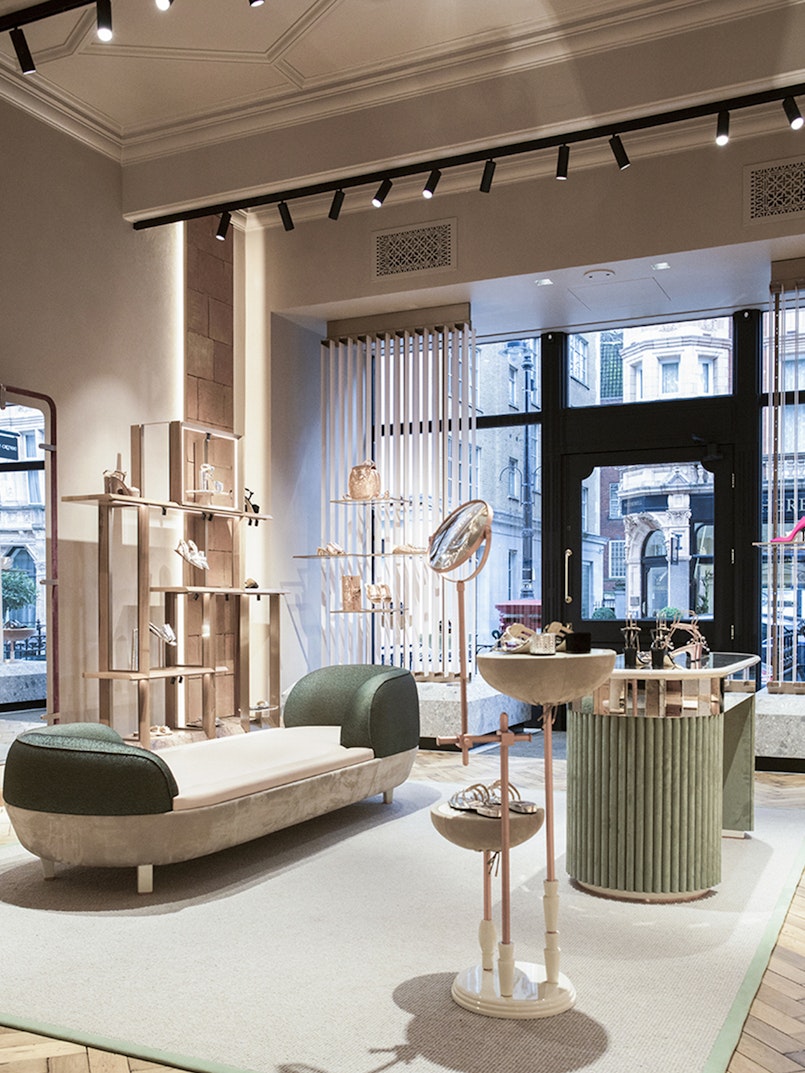

Mixing magnetism and design

Flexible lighting system hinging on the magic of a magnetic support and infinite possibilities.

Discover the Story


Luminaire

(96)

Optical Type

Lumen Output (lm)

Dimmable

Certifications

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.9037.ESADA	Light Shadow Spot 45 Dali Version	-	734	-	-	31	Dimmable DALI 2	Track
05.9037.ESACB	Light Shadow Spot 45 Casambi	-	734	-	-	31	Dimmable Casambi	Track
05.9037.ESA1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	31	Dimmable 1-10V	Track
05.9037.ESA	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	31	Non Dimmable	Track
05.9037.ERADA	Light Shadow Spot 45 Dali Version	-	734	-	-	31	Dimmable DALI 2	Track
05.9037.ERACB	Light Shadow Spot 45 Casambi	-	734	-	-	31	Dimmable Casambi	Track
05.9037.ERA1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	31	Dimmable 1-10V	Track
05.9037.ERA	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	31	Non Dimmable	Track
05.9037.40ADA	Light Shadow Spot 45 Dali Version	-	734	-	-	31	Dimmable DALI 2	Track
05.9037.40ACB	Light Shadow Spot 45 Casambi	-	734	-	-	31	Dimmable Casambi	Track
05.9037.40A1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	31	Dimmable 1-10V	Track
05.9037.40A	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	31	Non Dimmable	Track
05.9037.14ADA	Light Shadow Spot 45 Dali Version	-	734	-	-	31	Dimmable DALI 2	Track
05.9037.14ACB	Light Shadow Spot 45 Casambi	-	734	-	-	31	Dimmable Casambi	Track
05.9037.14A1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	31	Dimmable 1-10V	Track
05.9037.14A	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	31	Non Dimmable	Track
05.9036.ESADA	Light Shadow Spot 45 Dali Version	-	734	-	-	21	Dimmable DALI 2	Track
05.9036.ESACB	Light Shadow Spot 45 Casambi	-	734	-	-	21	Dimmable Casambi	Track
05.9036.ESA1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	21	Dimmable 1-10V	Track
05.9036.ESA	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	21	Non Dimmable	Track
05.9036.ERADA	Light Shadow Spot 45 Dali Version	-	734	-	-	21	Dimmable DALI 2	Track
05.9036.ERACB	Light Shadow Spot 45 Casambi	-	734	-	-	21	Dimmable Casambi	Track
05.9036.ERA1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	21	Dimmable 1-10V	Track
05.9036.ERA	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	21	Non Dimmable	Track
05.9036.40ADA	Light Shadow Spot 45 Dali Version	-	734	-	-	21	Dimmable DALI 2	Track
05.9036.40ACB	Light Shadow Spot 45 Casambi	-	734	-	-	21	Dimmable Casambi	Track
05.9036.40A1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	21	Dimmable 1-10V	Track
05.9036.40A	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	21	Non Dimmable	Track
05.9036.14ADA	Light Shadow Spot 45 Dali Version	-	734	-	-	21	Dimmable DALI 2	Track
05.9036.14ACB	Light Shadow Spot 45 Casambi	-	734	-	-	21	Dimmable Casambi	Track
05.9036.14A1V	Light Shadow Spot 45 Dimmable 1-10V	-	734	-	-	21	Dimmable 1-10V	Track
05.9036.14A	Light Shadow Spot 45 Dimmer On Board	-	734	-	-	21	Non Dimmable	Track
05.9035.ESADA	Light Shadow Spot 45 Dali Version	-	739	-	-	15	Dimmable DALI 2	Track
05.9035.ESACB	Light Shadow Spot 45 Casambi	-	739	-	-	15	Dimmable Casambi	Track
05.9035.ESA1V	Light Shadow Spot 45 Dimmable 1-10V	-	739	-	-	15	Dimmable 1-10V	Track
05.9035.ESA	Light Shadow Spot 45 Dimmer On Board	-	739	-	-	15	Non Dimmable	Track
05.9035.ERADA	Light Shadow Spot 45 Dali Version	-	739	-	-	15	Dimmable DALI 2	Track
05.9035.ERACB	Light Shadow Spot 45 Casambi	-	739	-	-	15	Dimmable Casambi	Track
05.9035.ERA1V	Light Shadow Spot 45 Dimmable 1-10V	-	739	-	-	15	Dimmable 1-10V	Track
05.9035.ERA	Light Shadow Spot 45 Dimmer On Board	-	739	-	-	15	Non Dimmable	Track
05.9035.40ADA	Light Shadow Spot 45 Dali Version	-	739	-	-	15	Dimmable DALI 2	Track
05.9035.40ACB	Light Shadow Spot 45 Casambi	-	739	-	-	15	Dimmable Casambi	Track
05.9035.40A1V	Light Shadow Spot 45 Dimmable 1-10V	-	739	-	-	15	Dimmable 1-10V	Track
05.9035.40A	Light Shadow Spot 45 Dimmer On Board	-	739	-	-	15	Non Dimmable	Track
05.9035.14ADA	Light Shadow Spot 45 Dali Version	-	739	-	-	15	Dimmable DALI 2	Track
05.9035.14ACB	Light Shadow Spot 45 Casambi	-	739	-	-	15	Dimmable Casambi	Track
05.9035.14A1V	Light Shadow Spot 45 Dimmable 1-10V	-	739	-	-	15	Dimmable 1-10V	Track
05.9035.14A	Light Shadow Spot 45 Dimmer On Board	-	739	-	-	15	Non Dimmable	Track
05.9032.ESADA	Light Shadow Spot 45 Dali Version	-	704	-	-	31	Dimmable DALI 2	Track
05.9032.ESACB	Light Shadow Spot 45 Casambi	-	704	-	-	31	Dimmable Casambi	Track
05.9032.ESA1V	Light Shadow Spot 45 Dimmable 1-10V	-	704	-	-	31	Dimmable 1-10V	Track
05.9032.ESA	Light Shadow Spot 45 On Board Dimmer	-	704	-	-	31	Non Dimmable	Track
05.9032.ERADA	Light Shadow Spot 45 Dali Version	-	704	-	-	31	Dimmable DALI 2	Track
05.9032.ERACB	Light Shadow Spot 45 Casambi	-	704	-	-	31	Dimmable Casambi	Track
05.9032.ERA1V	Light Shadow Spot 45 Dimmable 1-10V	-	704	-	-	31	Dimmable 1-10V	Track
05.9032.ERA	Light Shadow Spot 45 On Board Dimmer	-	704	-	-	31	Non Dimmable	Track
05.9032.40ADA	Light Shadow Spot 45 Dali Version	-	704	-	-	31	Dimmable DALI 2	Track
05.9032.40ACB	Light Shadow Spot 45 Casambi	-	704	-	-	31	Dimmable Casambi	Track
05.9032.40A1V	Light Shadow Spot 45 Dimmable 1-10V	-	704	-	-	31	Dimmable 1-10V	Track
05.9032.40A	Light Shadow Spot 45 On Board Dimmer	-	704	-	-	31	Non Dimmable	Track
05.9032.14ADA	Light Shadow Spot 45 Dali Version	-	704	-	-	31	Dimmable DALI 2	Track
05.9032.14ACB	Light Shadow Spot 45 Casambi	-	704	-	-	31	Dimmable Casambi	Track
05.9032.14A1V	Light Shadow Spot 45 Dimmable 1-10V	-	704	-	-	31	Dimmable 1-10V	Track
05.9032.14A	Light Shadow Spot 45 On Board Dimmer	-	704	-	-	31	Non Dimmable	Track
05.9031.ESADA	Light Shadow Spot 45 Dali Version	-	703	-	-	21	Dimmable DALI 2	Track
05.9031.ESACB	Light Shadow Spot 45 Casambi	-	703	-	-	21	Dimmable Casambi	Track
05.9031.ESA1V	Light Shadow Spot 45 Dimmable 1-10V	-	703	-	-	21	Dimmable 1-10V	Track
05.9031.ESA	Light Shadow Spot 45 On Board Dimmer	-	703	-	-	21	Non Dimmable	Track
05.9031.ERADA	Light Shadow Spot 45 Dali Version	-	703	-	-	21	Dimmable DALI 2	Track
05.9031.ERACB	Light Shadow Spot 45 Casambi	-	703	-	-	21	Dimmable Casambi	Track
05.9031.ERA1V	Light Shadow Spot 45 Dimmable 1-10V	-	703	-	-	21	Dimmable 1-10V	Track
05.9031.ERA	Light Shadow Spot 45 On Board Dimmer	-	703	-	-	21	Non Dimmable	Track
05.9031.40ADA	Light Shadow Spot 45 Dali Version	-	703	-	-	21	Dimmable DALI 2	Track
05.9031.40ACB	Light Shadow Spot 45 Casambi	-	703	-	-	21	Dimmable Casambi	Track
05.9031.40A1V	Light Shadow Spot 45 Dimmable 1-10V	-	703	-	-	21	Dimmable 1-10V	Track
05.9031.40A	Light Shadow Spot 45 On Board Dimmer	-	703	-	-	21	Non Dimmable	Track
05.9031.14ADA	Light Shadow Spot 45 Dali Version	-	703	-	-	21	Dimmable DALI 2	Track
05.9031.14ACB	Light Shadow Spot 45 Casambi	-	703	-	-	21	Dimmable Casambi	Track
05.9031.14A1V	Light Shadow Spot 45 Dimmable 1-10V	-	703	-	-	21	Dimmable 1-10V	Track
05.9031.14A	Light Shadow Spot 45 On Board Dimmer	-	703	-	-	21	Non Dimmable	Track
05.9030.ESADA	Light Shadow Spot 45 Dali Version	-	708	-	-	15	Dimmable DALI 2	Track
05.9030.ESACB	Light Shadow Spot 45 Casambi	-	708	-	-	15	Dimmable Casambi	Track
05.9030.ESA1V	Light Shadow Spot 45 Dimmable 1-10V	-	708	-	-	15	Dimmable 1-10V	Track
05.9030.ESA	Light Shadow Spot 45 On Board Dimmer	-	708	-	-	15	Non Dimmable	Track
05.9030.ERADA	Light Shadow Spot 45 Dali Version	-	708	-	-	15	Dimmable DALI 2	Track
05.9030.ERACB	Light Shadow Spot 45 Casambi	-	708	-	-	15	Dimmable Casambi	Track
05.9030.ERA1V	Light Shadow Spot 45 Dimmable 1-10V	-	708	-	-	15	Dimmable 1-10V	Track
05.9030.ERA	Light Shadow Spot 45 On Board Dimmer	-	708	-	-	15	Non Dimmable	Track
05.9030.40ADA	Light Shadow Spot 45 Dali Version	-	708	-	-	15	Dimmable DALI 2	Track
05.9030.40ACB	Light Shadow Spot 45 Casambi	-	708	-	-	15	Dimmable Casambi	Track
05.9030.40A1V	Light Shadow Spot 45 Dimmable 1-10V	-	708	-	-	15	Dimmable 1-10V	Track
05.9030.40A	Light Shadow Spot 45 On Board Dimmer	-	708	-	-	15	Non Dimmable	Track
05.9030.14ADA	Light Shadow Spot 45 Dali Version	-	708	-	-	15	Dimmable DALI 2	Track
05.9030.14ACB	Light Shadow Spot 45 Casambi	-	708	-	-	15	Dimmable Casambi	Track
05.9030.14A1V	Light Shadow Spot 45 Dimmable 1-10V	-	708	-	-	15	Dimmable 1-10V	Track
05.9030.14A	Light Shadow Spot 45 On Board Dimmer	-	708	-	-	15	Non Dimmable	Track
