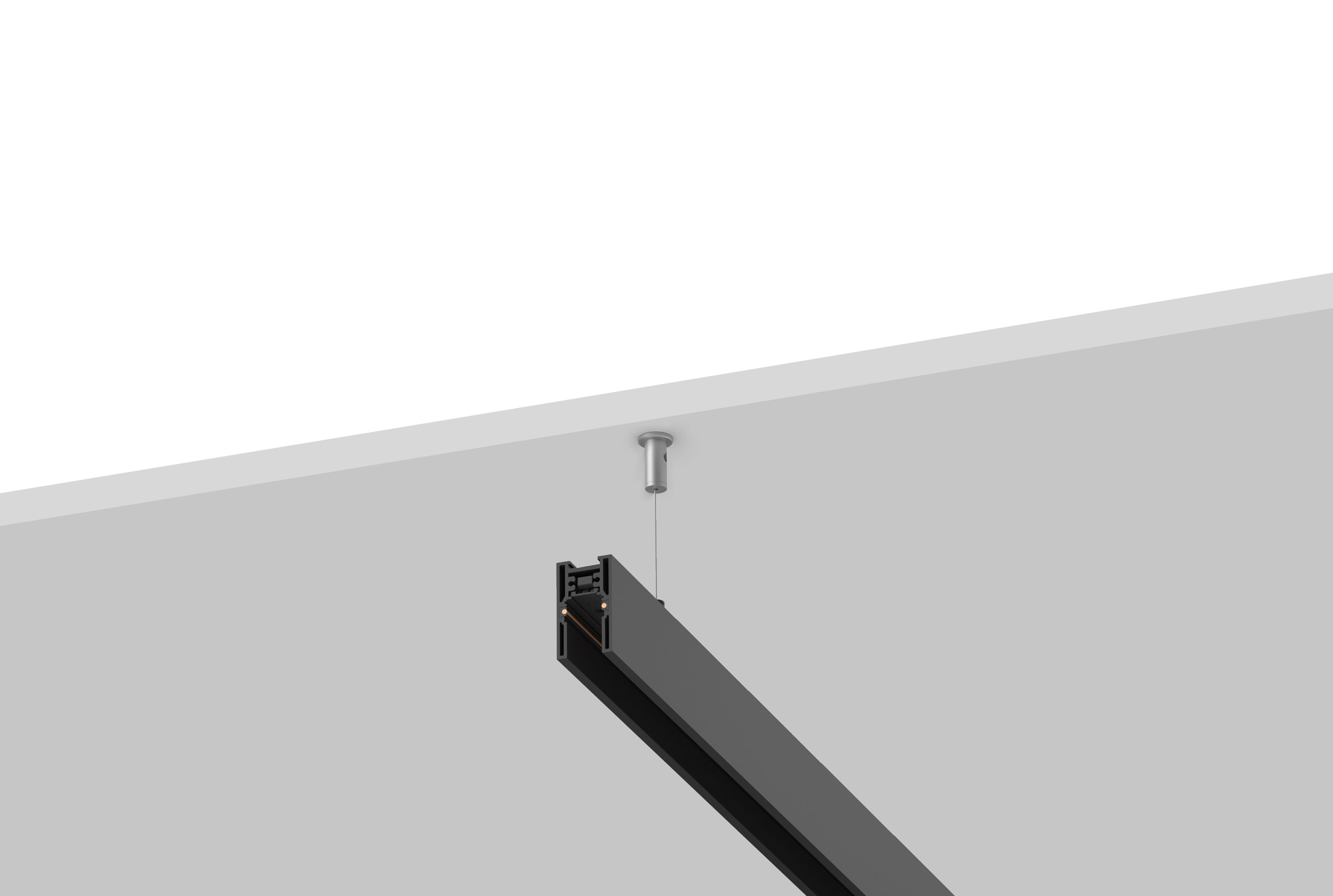

The Tracking Magnet Suspension Up&Down

Designed by FLOS Architectural

Electrical/mechanical profile for suspended installations.

Download Documentation

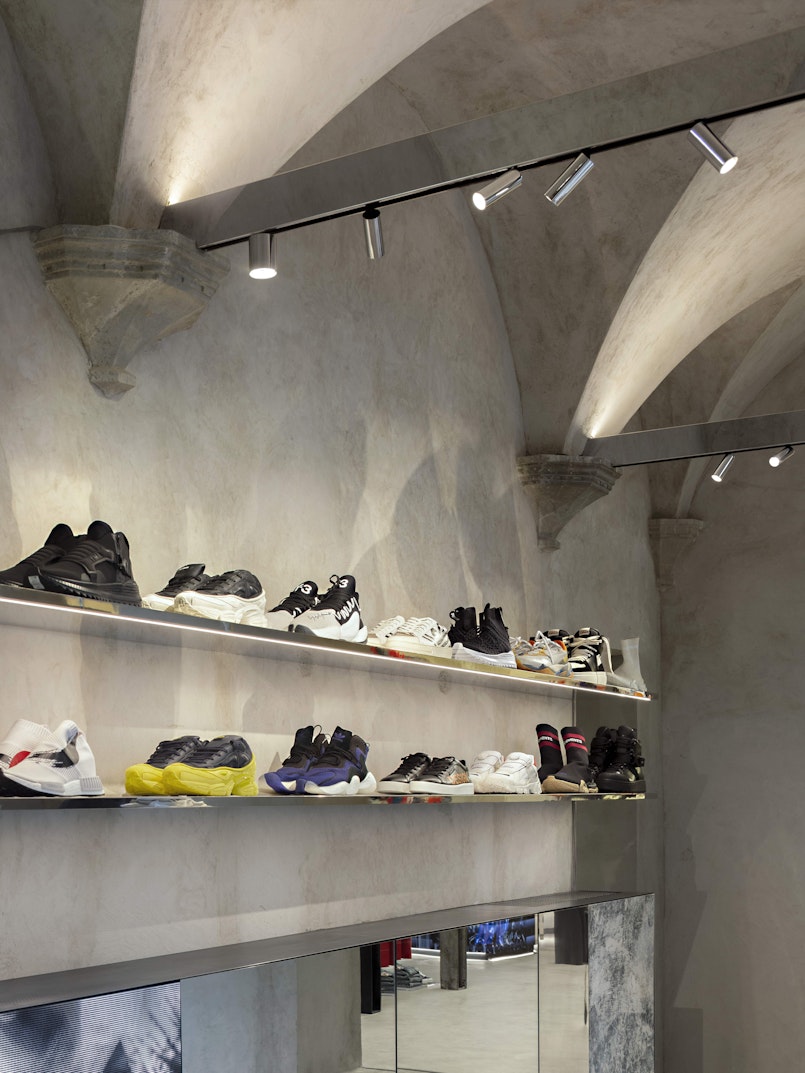

Product highlight

Mixing magnetism and design

Flexible lighting system hinging on the magic of a magnetic support and infinite possibilities.

Discover the Story


Profile

(31)

Length (mm)

Power (W)

Lumen Output (lm)

Certifications

Colour

Profile

28 items

Collapse

Code	Name	Length (mm)	Lumen Output (lm)	CCT (K)	Dimming Type	Mounting
06.5074.40	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	3000	1257	3000	Non Dimmable, Dimmable	Suspension
06.5074.14	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	3000	1257	3000	Non Dimmable, Dimmable	Suspension
06.5073.40	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	2500	1048	3000	Non Dimmable, Dimmable	Suspension
06.5073.14	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	2500	1048	3000	Non Dimmable, Dimmable	Suspension
06.5073.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	2500	1048	3000	Non Dimmable, Dimmable	Suspension
06.5072.40	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	2000	838	3000	Non Dimmable, Dimmable	Suspension
06.5072.14	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	2000	838	3000	Non Dimmable, Dimmable	Suspension
06.5072.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	2000	838	3000	Non Dimmable, Dimmable	Suspension
06.5071.40	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	1500	629	3000	Non Dimmable, Dimmable	Suspension
06.5071.14	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	1500	629	3000	Non Dimmable, Dimmable	Suspension
06.5071.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	1500	629	3000	Non Dimmable, Dimmable	Suspension
06.5070.40	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	1000	419	3000	Non Dimmable, Dimmable	Suspension
06.5070.14	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	1000	419	3000	Non Dimmable, Dimmable	Suspension
06.5070.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / On Board Dimmer compatible	1000	419	3000	Non Dimmable, Dimmable	Suspension
06.5024.40	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	3000	1257	3000	Non Dimmable, Dimmable	Suspension
06.5024.14	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	3000	1257	3000	Non Dimmable, Dimmable	Suspension
06.5023.40	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	2500	1048	3000	Non Dimmable, Dimmable	Suspension
06.5023.14	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	2500	1048	3000	Non Dimmable, Dimmable	Suspension
06.5023.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	2500	1048	3000	Non Dimmable, Dimmable	Suspension
06.5022.40	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	2000	838	3000	Non Dimmable, Dimmable	Suspension
06.5022.14	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	2000	838	3000	Non Dimmable, Dimmable	Suspension
06.5022.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	2000	838	3000	Non Dimmable, Dimmable	Suspension
06.5021.40	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	1500	629	3000	Non Dimmable, Dimmable	Suspension
06.5021.14	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	1500	629	3000	Non Dimmable, Dimmable	Suspension
06.5021.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	1500	629	3000	Non Dimmable, Dimmable	Suspension
06.5020.40	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	1000	419	3000	Non Dimmable, Dimmable	Suspension
06.5020.14	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	1000	419	3000	Non Dimmable, Dimmable	Suspension
06.5020.05A	The Tracking Magnet Suspension Up&Down Profile Casambi / Dali / 1-10V compatible	1000	419	3000	Non Dimmable, Dimmable	Suspension

Corner

3 items

Collapse

Code	Name	Length (mm)	Lumen Output (lm)	CCT (K)	Dimming Type	Mounting
06.5025.40	The Tracking Magnet Suspension Up&Down Profile 90º Mechanical Corner	55	-	-	-	Suspension
06.5025.14	The Tracking Magnet Suspension Up&Down Profile 90º Mechanical Corner	55	-	-	-	Suspension
06.5025.05A	The Tracking Magnet Suspension Up&Down Profile 90º Mechanical Corner	55	-	-	-	Suspension
