Almendra
F0392009 Off-white

Almendra Linear Suspension 4 Primer

Suspension lamp with diffused light emission available in linear and organic compositions. Tubular structure made of aluminium and CNC aluminium terminals with matte or metallized finish. Edge Lighting technology integrated. Light units can be turned by steps of 60º within the structure in order to change the direction of the light emitted. Metal rosette with primer finish.  The integrated electronics in the ceiling rose allow the use of different dimming systems: 1-10V, DALI, push-dim or potentiometer. Useful length of the cable 3 mt. The product has been designed according to the ISCC standards and it is assembled with total absence of glued components so that it can be completely separated for future recyclability.

60W - 2340lm - 2700K - CRI> 95

Find a Flos store
Also available in:
Technical Drawing
Almendra-Linear-S4-Urquiola-flos-spech-tech-01-300x263
Main specifications
EAN
8059607050743
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Edge Lighting
Power (W)
60
Lumen Output (lm)
2340
Schematic light drawing
32514_ALMENDRA_S_BCO_BODY
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable Push, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Off-white
Length (mm)
1665
Cord colour
Clear
Cord length (mm)
2600
Canopy colour
Primer
Canopy length/diameter (mm)
799
Canopy width (mm)
70
Canopy height (mm)
39
Net weight (kg)
10.18
Package volume (m3)
0.22
IP internal
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
KOREA
IRAM Argentina
UKCA
CCC
Risk 0
03 - Italy
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F0392009-almendra-s4-flos-boom
01. Driver 96W 48V 220-240V
RF32405
02. Led dimmer kit
RF34197
04. Terminal Joint L90 Almendra White
RF32773
05. Assembly Almendra Suspension Wiring & Connections White
RF32530
06. Assembly Almendra Suspension Central Feed White
RF32521

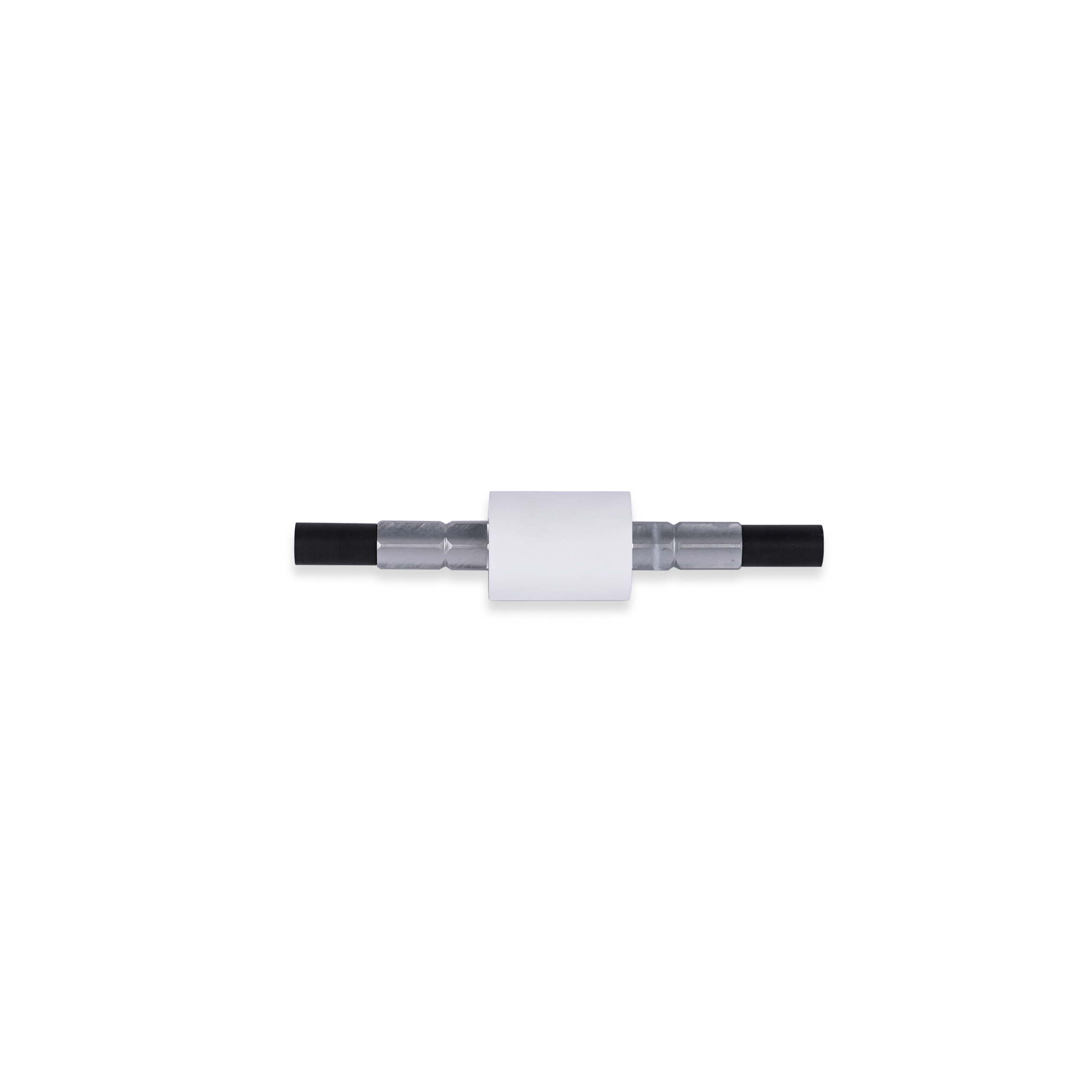

07. Assembly Almendra Suspension Wiring White
RF32569
08. Assembly Almendra Suspension Body White
RF32514
09. Kit with screws and allen key
RF3160100
