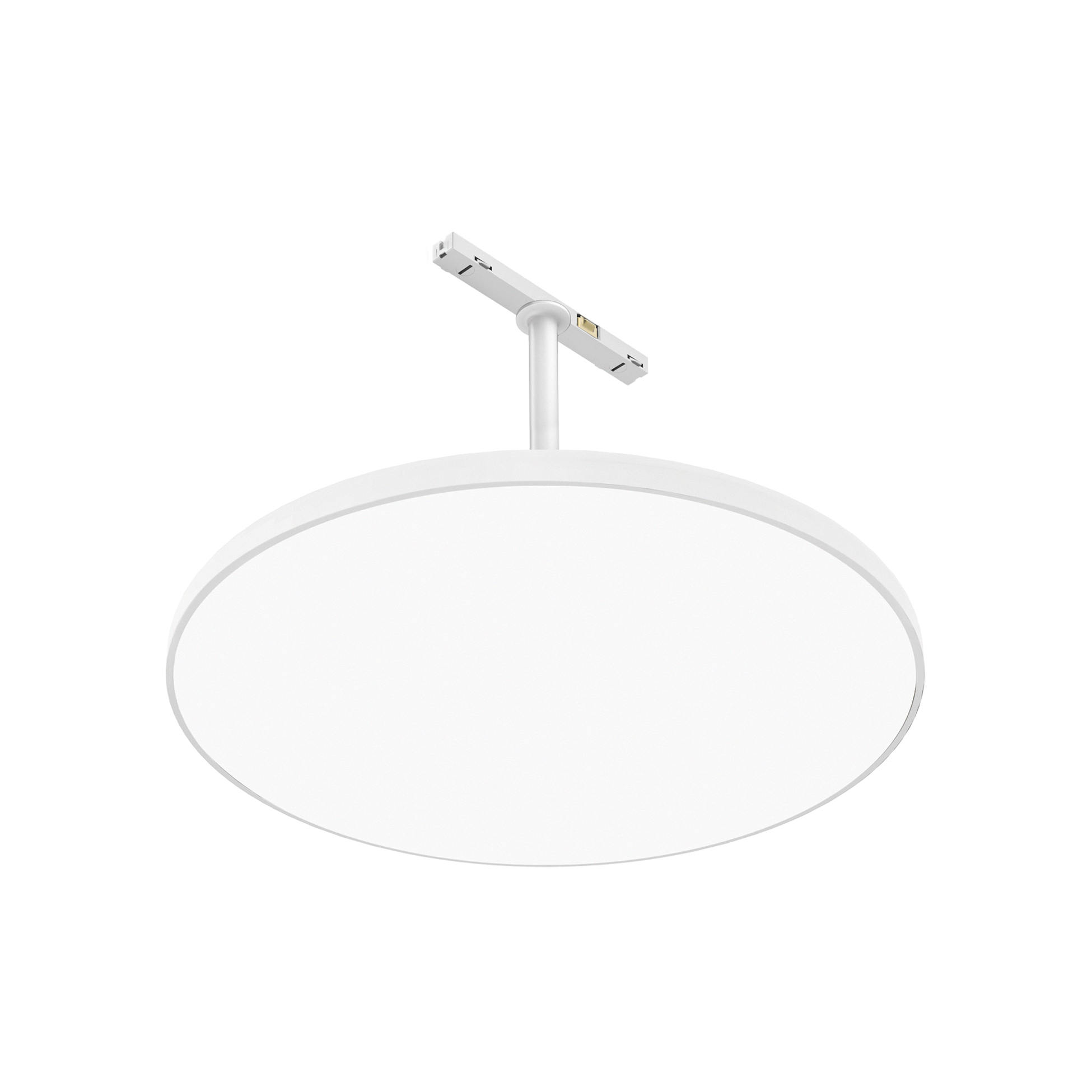

09.3851.40 WhiteAtom 200
Designed by Piero Lissoni, 2018
General lighting LED module to be installed in the Zero Track system. Incorporated DC/DC electronic converter. Module non-dimmable. To individually control the lights, select integrated Casambi versions. Not suitable for vertical installations.
10.5W - 395lm - 2700K - CRI> 90 - Beam° 110
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
10.5
Source flux (lm)
1005
Lumen Output (lm)
395
Efficacy (lm/W)
38
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50>50.000h (Tc=85ºC)
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Extreme cut off
No
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
420
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
192
Net weight (kg)
0.47
IP internal
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
