The Glowing Track Zero Track & Pro
05.5146.14.DA Black

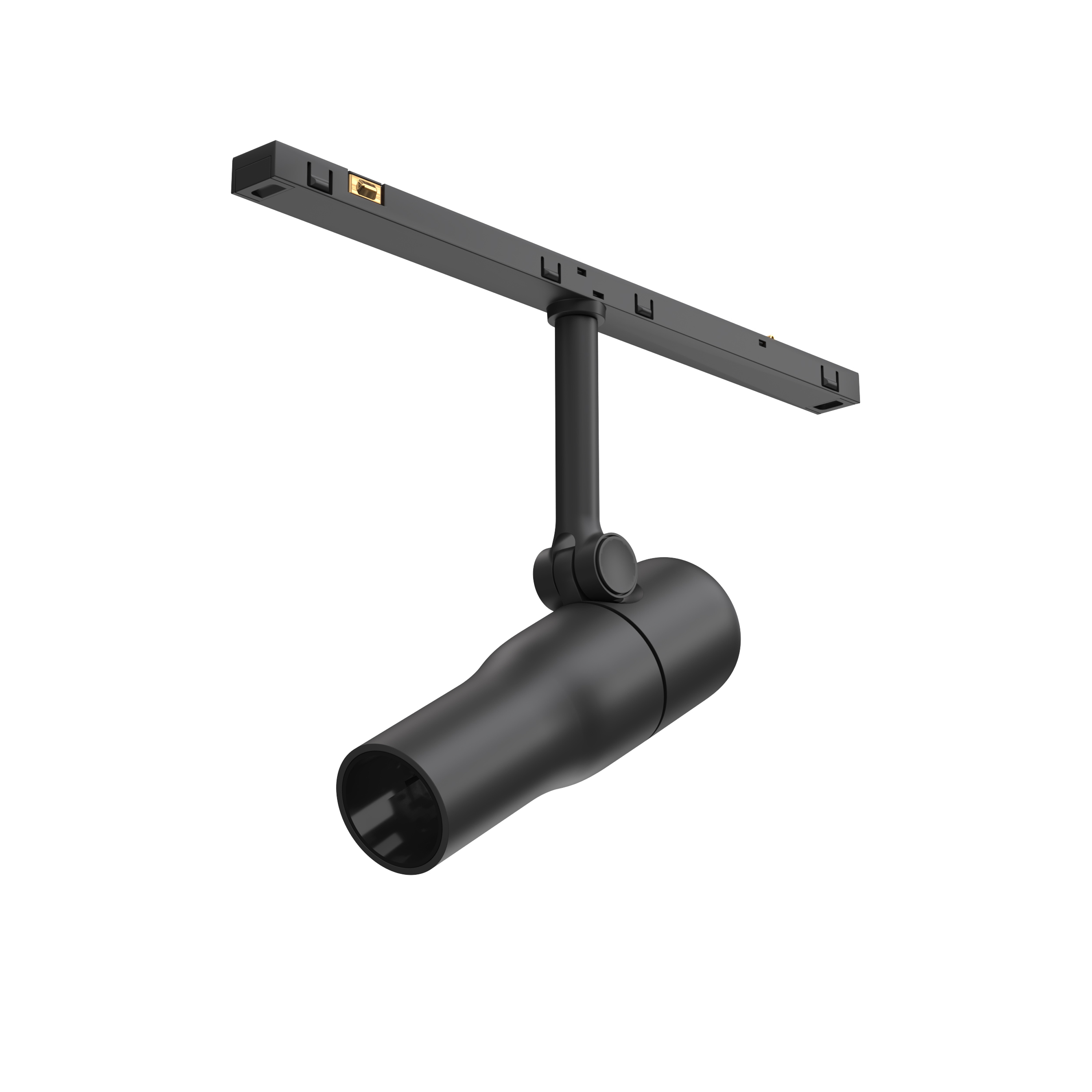

Atom 90 Dali Dimmable

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual control via DALI protocol and broadcast mode via 1-10V.

5.5W - 289lm - 3000K - CRI> 90 - Beam° 25

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-Zero_Track_Pro-Atom_90-Dimmable_1_10V_Dimmable_DALI_2
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
5.5
Source flux (lm)
446
Lumen Output (lm)
289
Efficacy (lm/W)
53
Schematic light drawing
EU_05_5146_XX_XXW5.5
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
25
Beam angle C90-270 (º)
25
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
400
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable DALI 2
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Black
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.1
IP internal
20
CE
RG
UL
EAC
UKCA

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE3 Non-replaceable light source

PWRSUPRPL2 Replaceable control gear by a professional
