Bellhop
F1077009White

Bellhop Glass C2

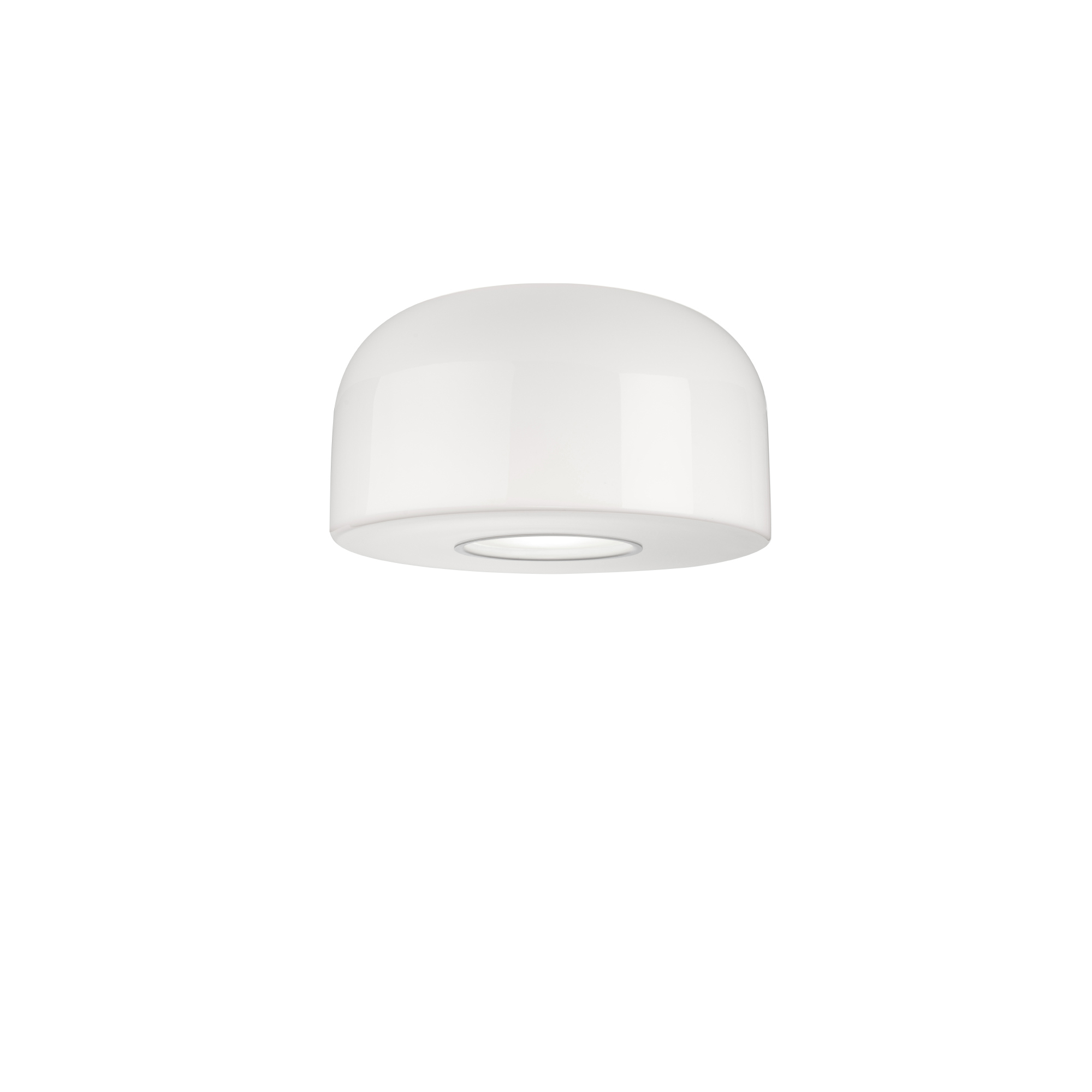

Ceiling-mounted lamp emitting diffused light. Features a triplex opaline glass diffuser formed from three simultaneously blown layers of variable thickness. Lower opening protected by an aluminium ring to shield the bulb from direct view and create accent lighting on the surfaces below the lamp.

One of Edward Barber and Jay Osgerby’s most iconic designs for Flos, Bellhop has evolved from a playful portable lamp into a full family of light. Bellhop Glass reimagines the archetype in triplex opaline glass and metal, materials that give the lamp greater scale, substance and atmosphere. The mouth-blown diffuser allows the entire surface to glow with even warmth. Table, ceiling and suspension versions transform the youthful spirit of the original into a more architectural presence, while evoking the intimacy of candlelight that first inspired the design.

LED retrofit - 30W

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Ceiling-Bellhop-C2
Main specifications
EAN
8059607074411
Mounting
Ceiling
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
LED retrofit
Lamp type
A
Lamp holders
E27
Ilcos
HSGSA
Number of lamps
1
Power (W)
30
System power (W)
30
Schematic light drawing
F10770XXWBELLHOP-GLASS-C2_25W-LED
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
450
Net weight (kg)
6.8
Package volume (m3)
0.14
IP internal
20
CE
EAC
CMIM
ENEC
Autoprotected Lamp
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE4

Spare Parts

F1077009-bellhop-glass-C2-flos-boom

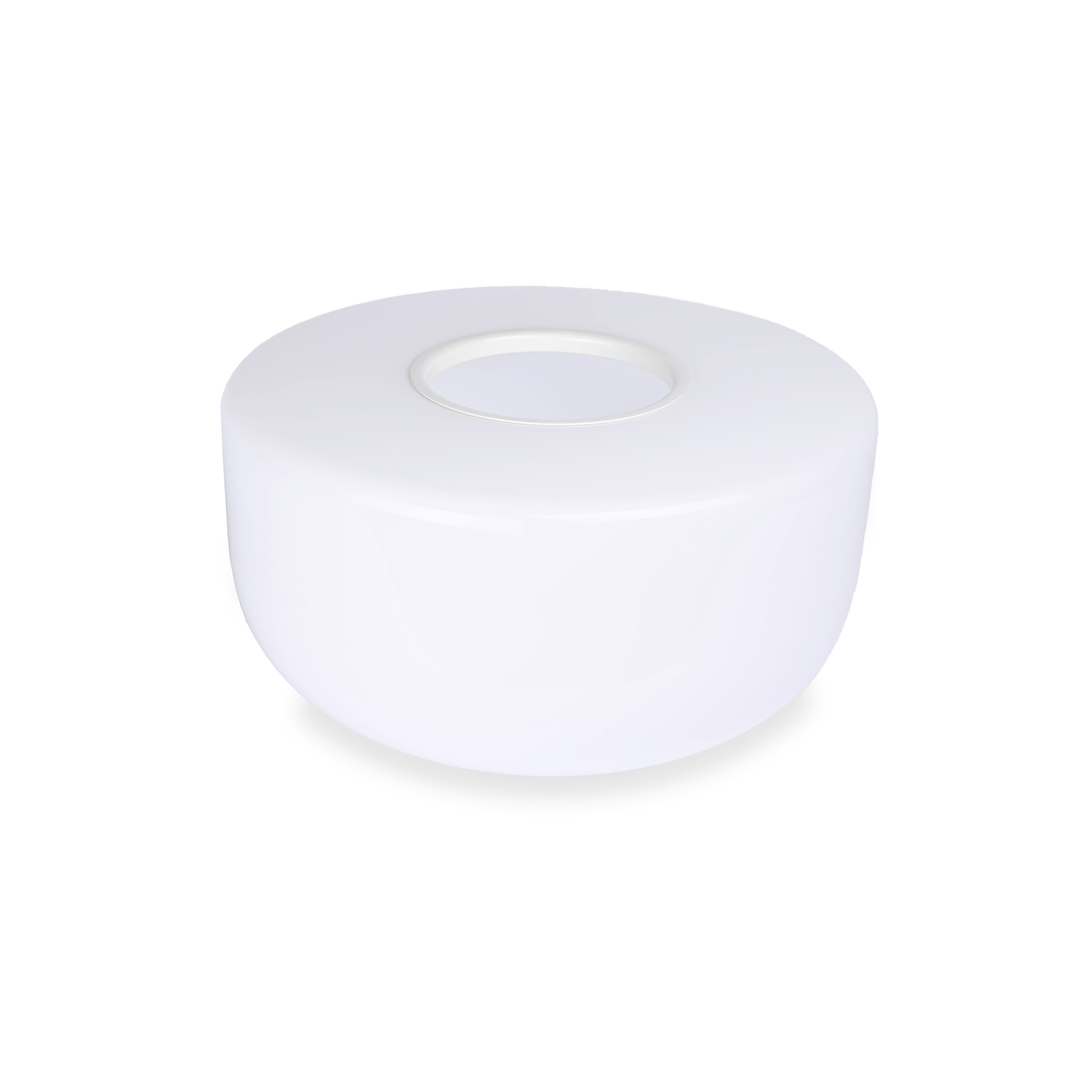

01. Belhop Glass C2 white diffuser white ring
F1079009
02. Bellhop Glass 2 hole frame shiny white
RF1077109
03. Bellhop Glass C2 Opal diffuser
RF37457
