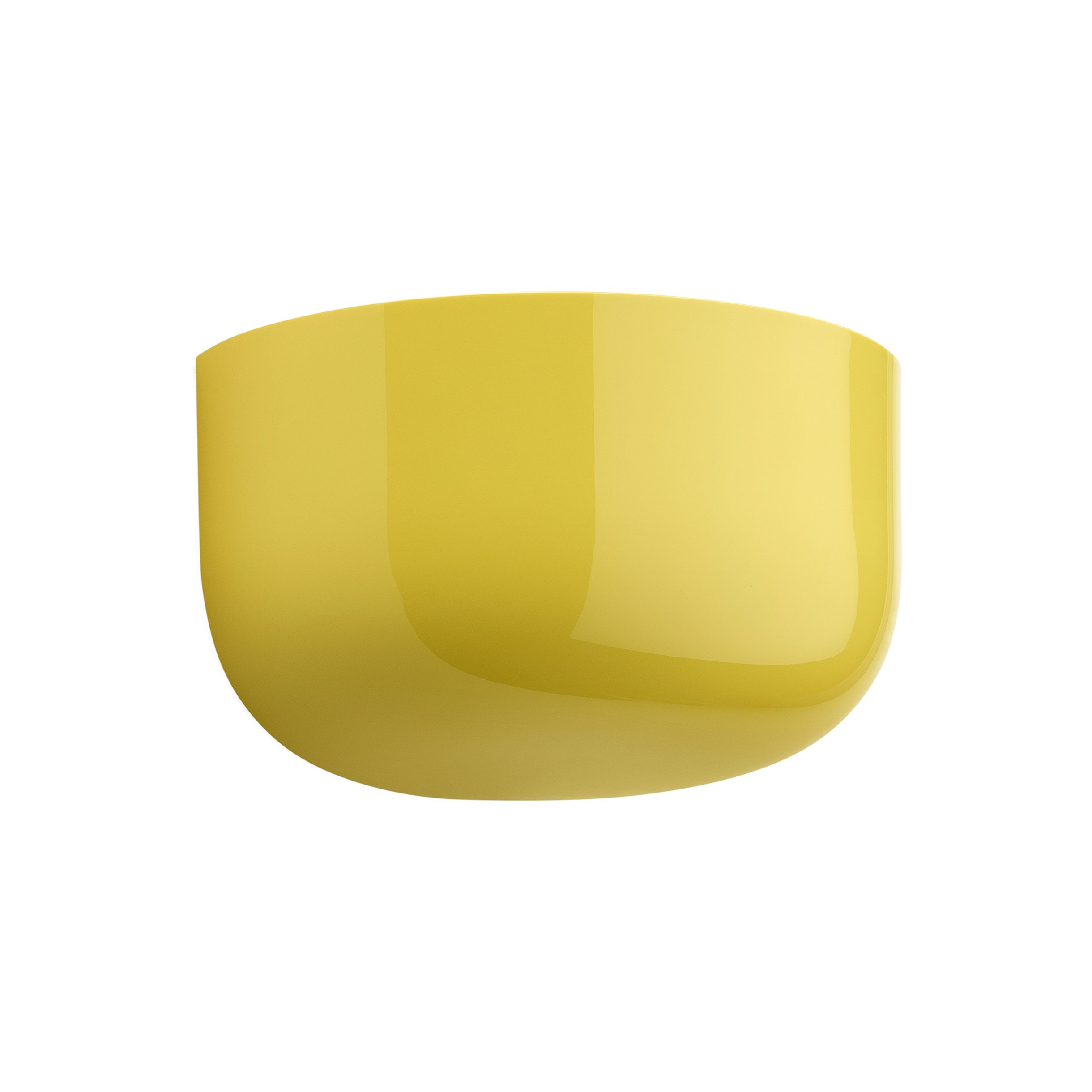

F1080019 YellowBellhop Wall Up
Designed by Edward Barber and Jay Osgerby, 2022
Designed by Edward Barber and Jay Osgerby Indirect light wall lamp. Body in colored polycarbonate. Diffuser made of semi-transparent injection-moulded polycarbonate. The surface of the diffuser has been designed with a special texture to enhance the uniformity of the light distribution. High efficiency LED source with a lifetime of more than 50.000 hours. The LED source can be easily replaced on site by a professional installer when it comes to the end of its lifecycle. Bellhop Wall Up is a future-proof lamp as no glue is used to assemble its different parts. The product can therefore be separated, replaced individually, and recycled separately.
17W - 1314lm - 2700K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607047811
Mounting
Wall
Environments
Indoor damp location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
17
System power (W)
17
Lumen Output (lm)
1314
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Yellow
Length (mm)
150
Net weight (kg)
1.2
Package height (mm)
154
Package width (mm)
225
Package length (mm)
272
Package volume (m3)
0.01
IP internal
44
Replaceable (LED only) light source by a professional
Spare Parts
01.
Bellhop Wall Up Transparent Difusser
RF32828
02.
LED Board for Bellhop Wall Up
RF1080100
