Related to
C1
03.1220.ES Brushed BronzeC1 Mono Spot Ceiling Small Ø 35
Designed by Vincent Van Duysen, 2021

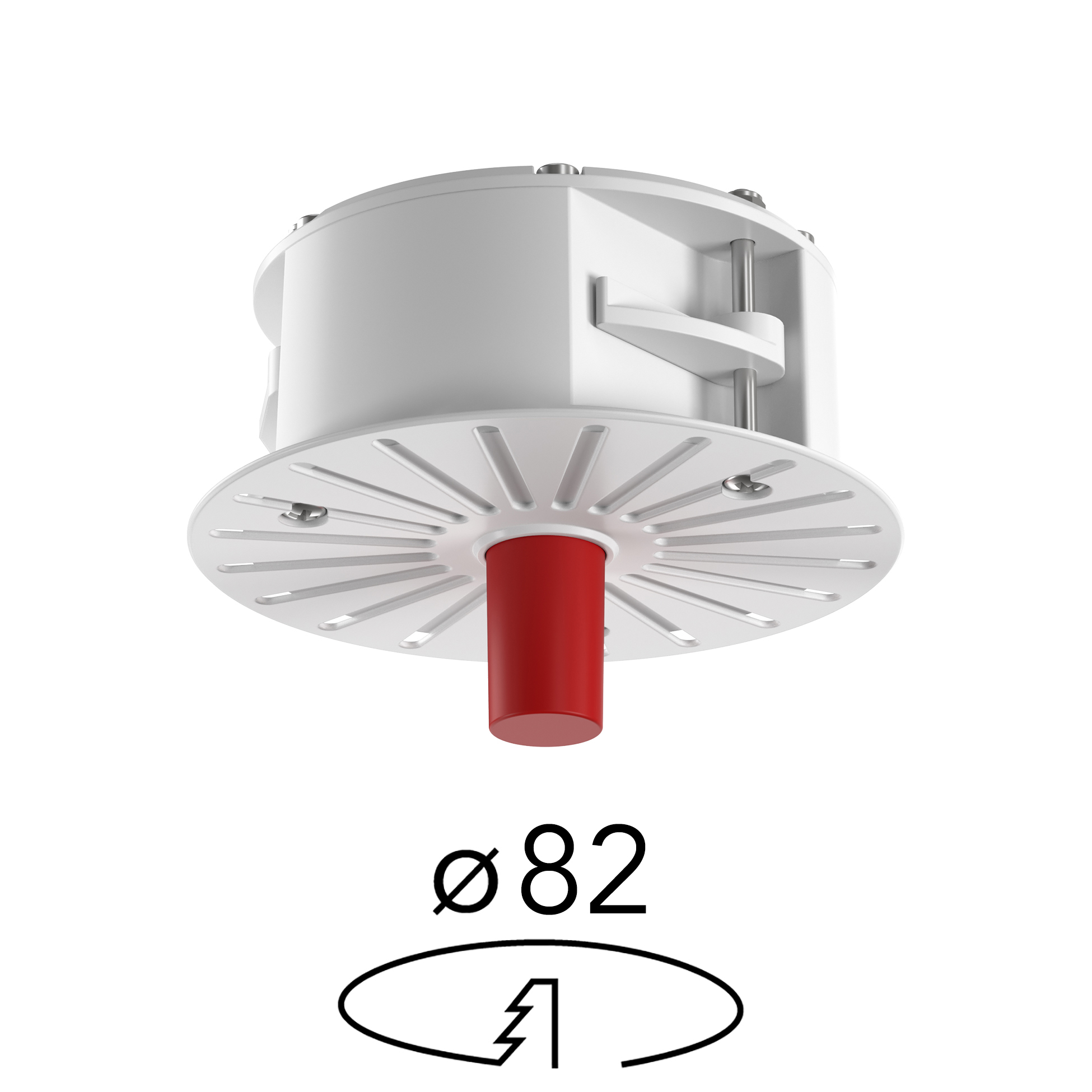

Adjustable luminaire with LED for indoor use, suitable for wall installation. The body can be extracted from the installation surface for 60º orientation on the vertical axis and 180º on the horizontal axis. Integrated Full cut-off optical group. The remote power supply (not included) must be placed in an accessible location. The installation frame must be ordered .separately.
LED - Power LED - 6W - 376lm - 2700K - CRI> 90 - Beam° 15
Technical Drawing
Main specifications
Mounting
Ceiling surface
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Power (W)
6
Lumen Output (lm)
376
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
15
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
III
LED current (mA)
500
Power supply
Remote excluded
Dimmable
Yes
Emergency
No
Physical
Colour
Brushed Bronze
Orientation
Adjustable
Rotation (º)
355
Longitudinal tilting (°)
60
Spot diameter (mm)
35
Net weight (kg)
0.18
IP internal
20
IP external
20
