Chasen
F1636030 Black

Chasen

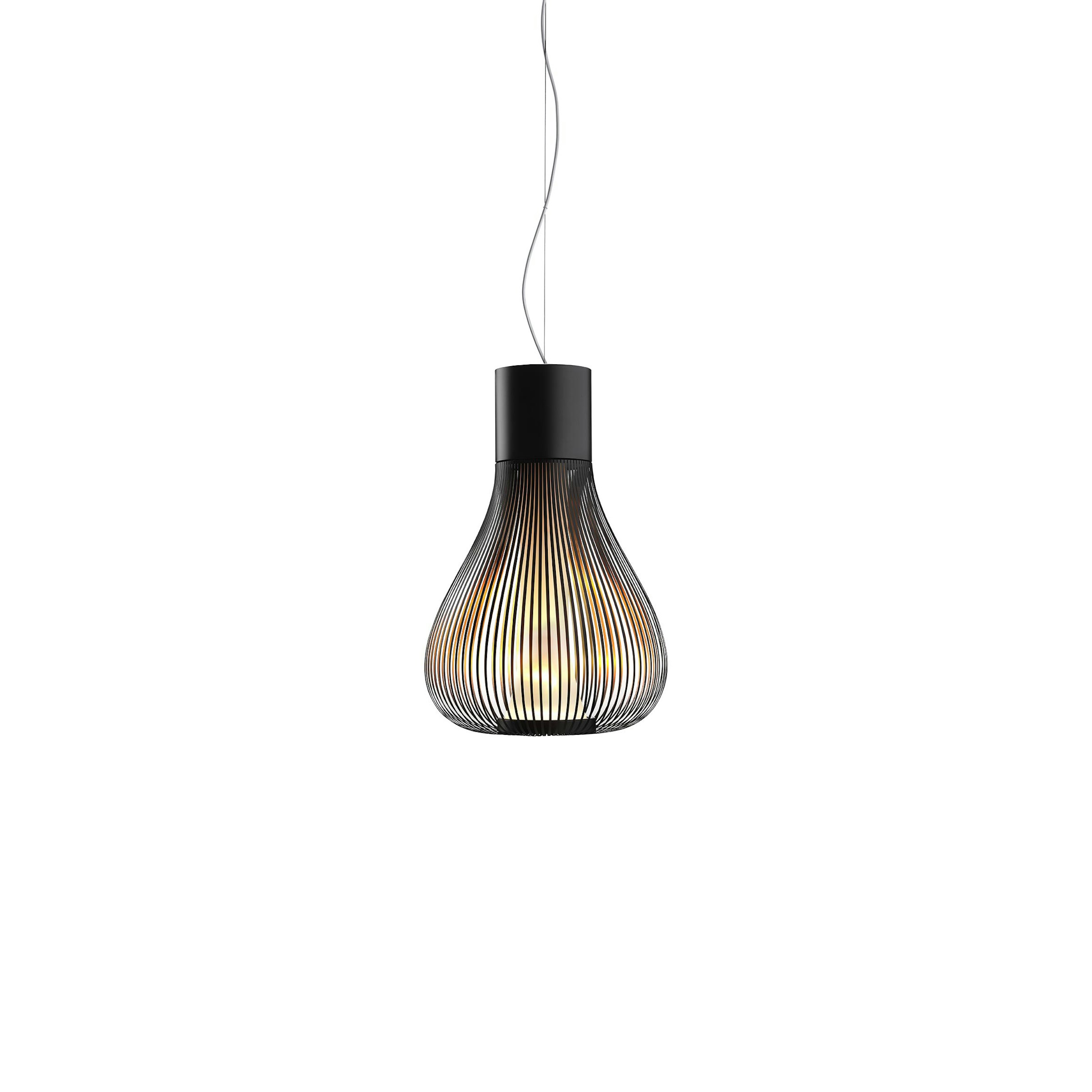

Suspension lamp emitting diffused light. Chemically photo-etched stainless-steel body with liquid paint protection and borosilicate glass diffuser. Die-cast aluminium base with a 30% fibreglass-reinforced polyamide ceiling rose, mounted to a pressed and galvanised steel ceiling fixture. Light emission is adjustable via a mechanical movement that opens or closes the louvres, altering the shape of the luminaire. Steel suspension cable.

Created by Patricia Urquiola, Chasen transforms lighting into a kinetic experience. Inspired by the traditional Japanese tea whisk from which it takes its name, the lamp’s shade can be mechanically adjusted by opening or closing its filaments. This movement alters both the lamp's shape and how the light is diffused, creating a dynamic interplay between form and atmosphere. Sculptural and interactive, Chasen reflects Urquiola’s instinct for innovation and her desire to reinvent the everyday.

Halogen - 16W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Chasen
Main specifications
EAN
8059607001592
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
Yes
Lamp category
Halogen
Lamp holders
E27
Ilcos
IPAR
Number of lamps
1
Power (W)
16
Schematic light drawing
F16360_120W_HL_CHASEN_S2_760MM
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black
Length (mm)
485
Cord colour
Black
Cord length (mm)
2700
Canopy colour
Black
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
7.6
Package height (mm)
940
Package width (mm)
595
Package length (mm)
595
Package volume (m3)
0.32
IP internal
20
CE
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Autoprotected Lamp
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions

Technical Drawings

2D
3D

Spare Parts

F1636030-chasen-flos-boom
01. Black rose assembly
RA3690230
02. Chasen Suspension 2 Black diffuser assembly
RF1636030
