Coordinates

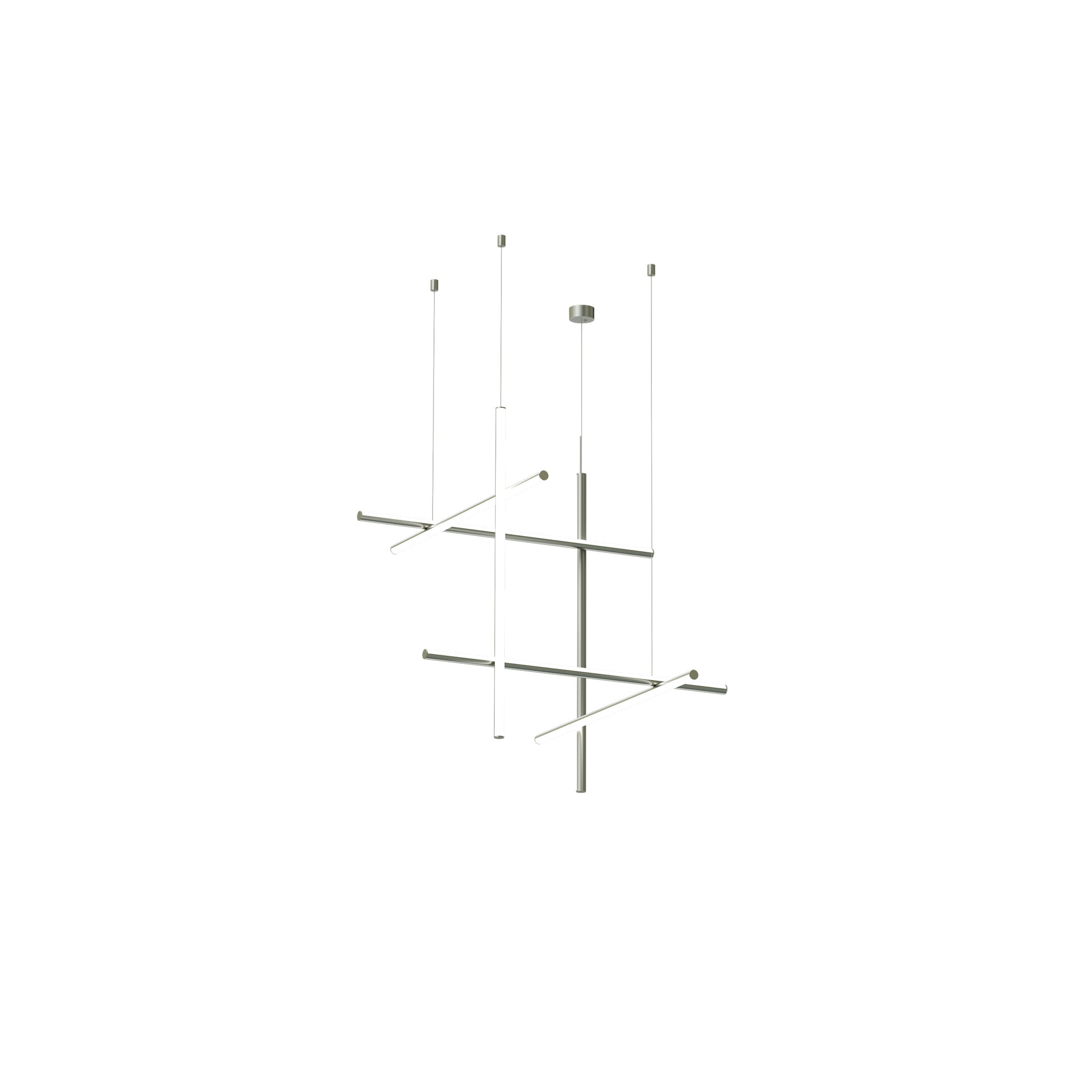

F1846033ArgentCoordinates Suspension 3 CLIII
Designed by Michael Anastassiades, 2020
Suspension lighting system emitting diffused light. Composed of horizontal and vertical luminaires arranged in a grid. Elements made of extruded anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Invisible electrical and mechanical connection with 2.4 m cables. Each configuration includes a ceiling rose with integrated electronics for push, 1–10 V or DALI dimming.
64W - 3850lm - 2700K - CRI> 95
Also available in:
Technical Drawing
Main specifications
EAN
8059607038352
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
64
Lumen Output (lm)
3850
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
48
Power supply
Remote excluded
Power supply type
Electronic 48V
Batteries inside
No
Physical
Colour
Argent
Length (mm)
1770
Cord colour
Clear
Cord length (mm)
2400
Canopy length/diameter (mm)
61
Canopy height (mm)
29
Net weight (kg)
2.3
Package volume (m3)
0.03
IP internal
20
Accessories & Power Supply
Spare Parts
01. Coordinates S CL. III Assembly Ceiling Rose Cover Argent
RF1874133
02. Coordinates Suspension S3 Rod Assembly L780 H-02 Argent
RF30910
03. Coordinates Suspension S3 Rod Assembly L780 S-04 Argent
RF30912
04. Coordinates Suspension S3 Rod Assembly L780 SH-03 Argent
RF30911
