Related to
Coordinates
F1846044Anodized ChampagneCoordinates Suspension 3 CLIII
Designed by Michael Anastassiades, 2020
Suspension lighting system emitting diffused light. Composed of horizontal and vertical luminaires arranged in a grid. Elements made of extruded anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Invisible electrical and mechanical connection with 2.4 m cables. Each configuration includes a ceiling rose with integrated electronics for push, 1–10 V or DALI dimming.
64W - 3850lm - 2700K - CRI> 95
Also available in:
Technical Drawing
Main specifications
EAN
8059607032602
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
64
Lumen Output (lm)
3850
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
48
Power supply
Remote excluded
Power supply type
Electronic 48V
Batteries inside
No
Physical
Colour
Anodized Champagne
Length (mm)
1770
Cord colour
Clear
Cord length (mm)
2400
Canopy length/diameter (mm)
61
Canopy height (mm)
29
Net weight (kg)
2.3
Package volume (m3)
0.03
IP internal
20
Accessories & Power Supply
Spare Parts

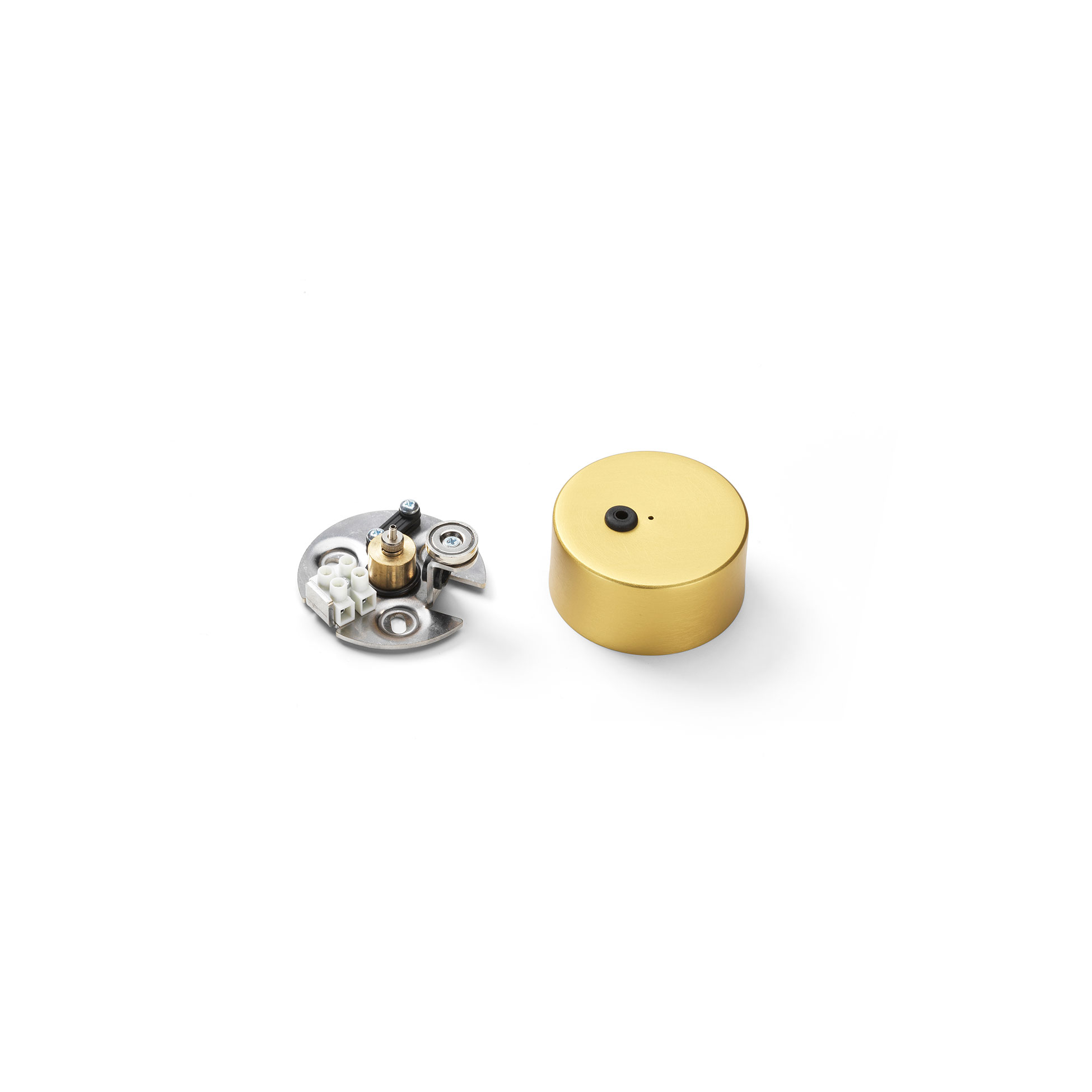

01. Assembly Rose Cover for Coordinates S CLIII Anodized Champagne
RF1874144
03. Coordinates Suspension 3 Rod Assembly L780 H-02 Anodized Champagne
RF31449
04. Coordinates Suspension 3 Rod Assembly L780 SH-03 Anodized Champagne
RF31372
05. Coordinates Suspension 3 Rod Assembly L780 SA-39 Anodized Champagne
RF31452
06. Coordinates Suspension 3 Rod Assembly L780 S-04 Anodized Champagne
RF31450
