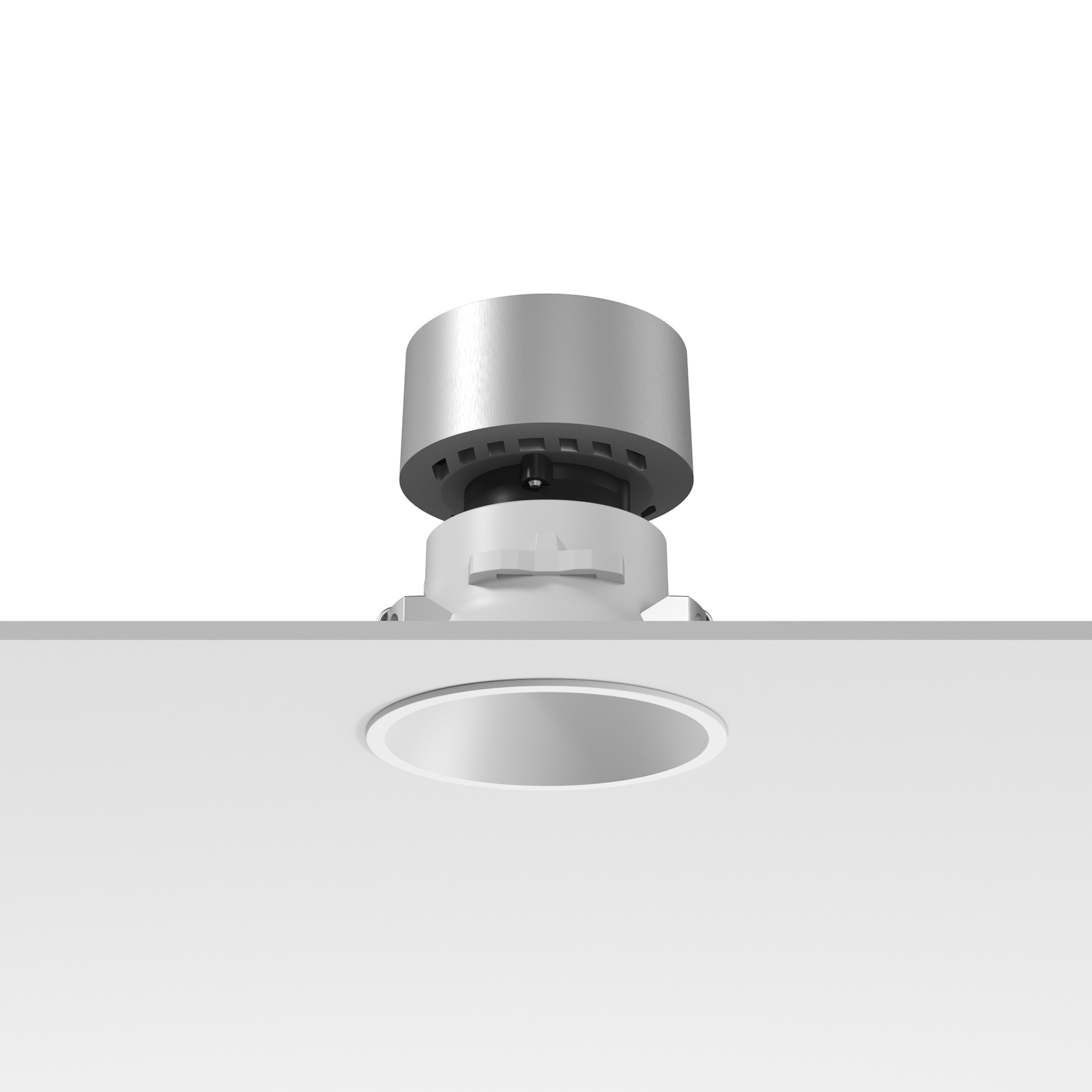

05.7441.B1 WhiteEasy Kap Ø 80 Plus Fixed Optic Spot
Designed by FLOS Architectural, 2019
Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary. Diffusing lens included.
LED - LED array - 13W - 1050lm - 2700K - CRI> 90 - Beam° 19
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
13
System power (W)
13.4
Source flux (lm)
1342
Lumen Output (lm)
1050
Efficacy (lm/W)
78
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
19
Beam angle C90-270 (º)
19
UGRL
<19
Electrical
Insulation class
III
Frequency (Hz)
0
Forward voltage (V)
17.8
LED current (mA)
700
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming
Physical
Colour
White
Trim
Yes
Orientation
Fixed
Recessed depth (mm)
150
Bezel diameter (mm)
80
Spot diameter (mm)
80
Length (mm)
80
Net weight (kg)
0.24
Package height (mm)
90
Package width (mm)
125
Package length (mm)
145
IP internal
20
IP external
54
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
