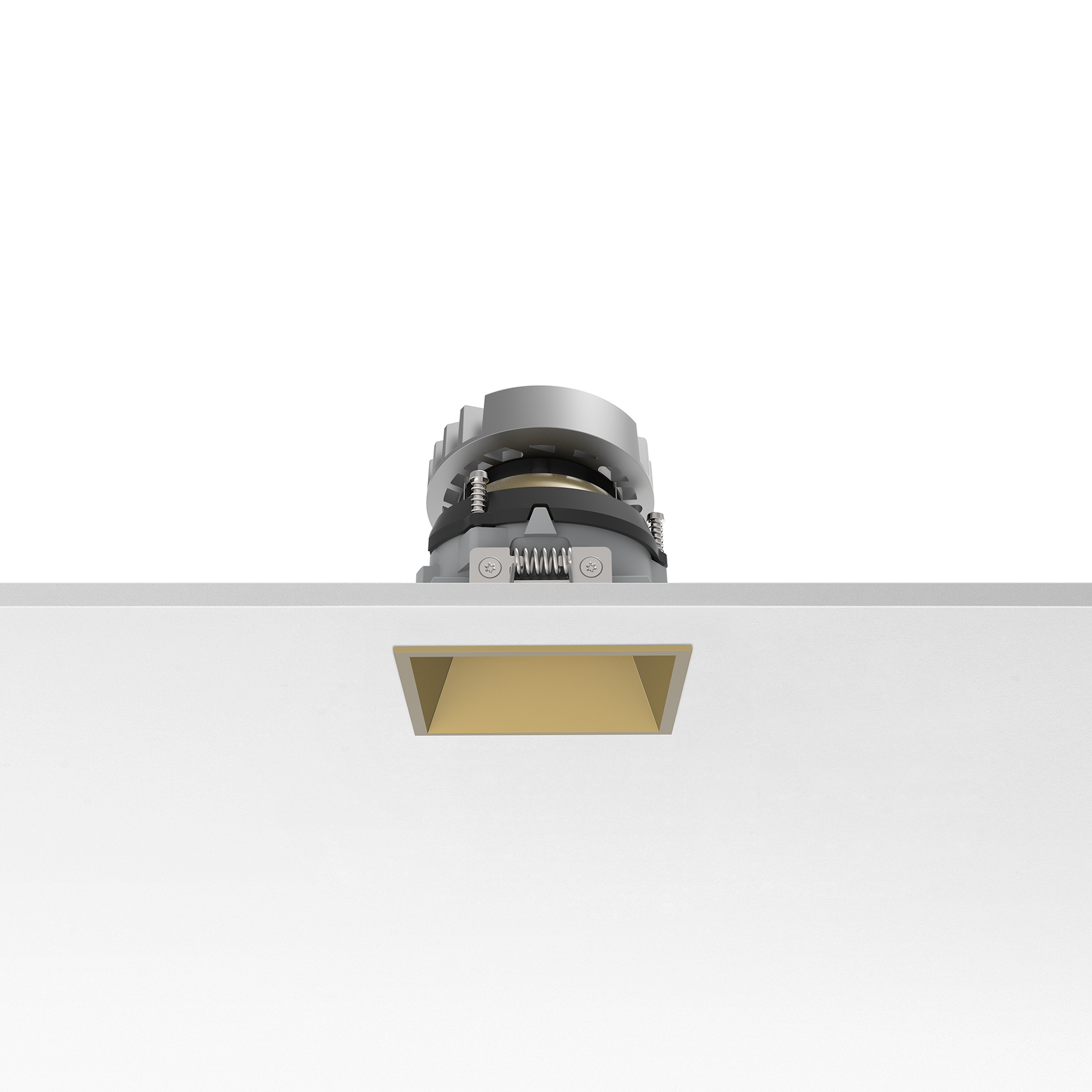

03.4296.GL GoldEasy Kap 80 Square Adjustable Optic Flood
Designed by FLOS Architectural, 2017
Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary.
LED - LED array - 9.2W - 698lm - 2700K - CRI> 90 - Beam° 50
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
9.2
System power (W)
9.2
Source flux (lm)
908
Lumen Output (lm)
698
Efficacy (lm/W)
75
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
50
Beam angle C90-270 (º)
50
UGRL
<16
Electrical
Insulation class
III
Frequency (Hz)
0
Forward voltage (V)
18.4
LED current (mA)
500
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable 0-10V, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1
Physical
Colour
Gold
Trim
Yes
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
20
Transversal tilting (°)
20
Recessed depth (mm)
91
Spot diameter (mm)
80
Length (mm)
80
Net weight (kg)
0.24
Package height (mm)
90
Package width (mm)
145
Package length (mm)
125
IP internal
20
IP external
54
Notes
Diffusing lens included
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
