Eclectic
05.8151.14 Black

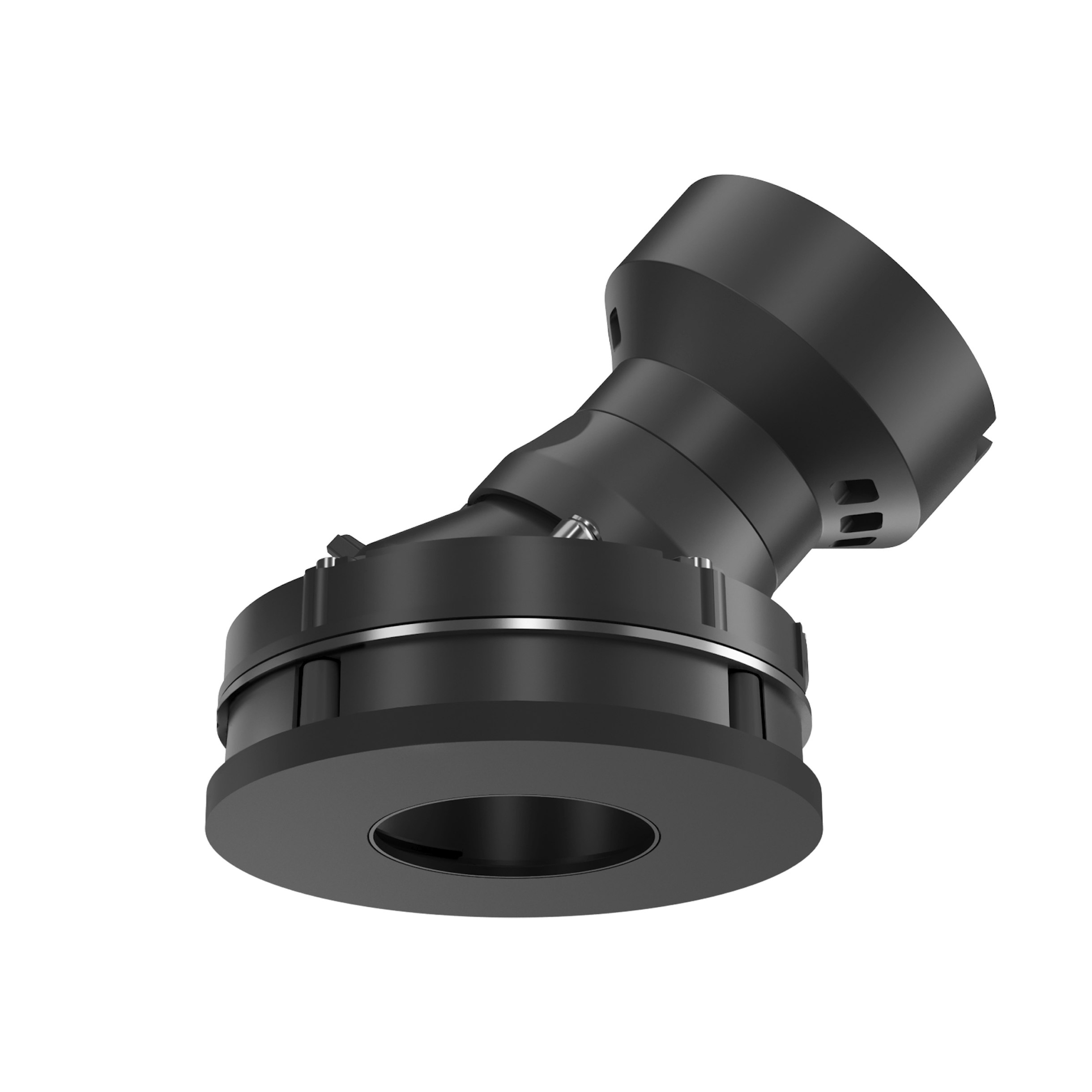

Eclectic 90 Adjustable Flat Led Array

Eclectic Ø90. Adjustable Downlight (40º tilt, 360º rotation). “Flat” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 49º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts.

10.5W - 874lm - 2700K - CRI> 90 - Beam° 24

Find a Flos store
Technical Drawing
DR-Eclectic-90-Adjustable
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
Power (W)
10.5
System power (W)
12.6
Lumen Output (lm)
874
Efficacy (lm/W)
83
Schematic light drawing
EU_05_8151_XX_XXW12.6
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
2
Rf fidelity index
88
Rg gamut index
94
LED Life / Failure Ratio
L70B50>55.000h_Tc=85°C
Beam angle C0-180 (º)
24
Beam angle C90-270 (º)
24
UGRL
<10
Electrical
Insulation class
III
LED current (mA)
300
Power supply
Remote
Dimmable
Yes
Power supply type
Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable Push, Dimmable 1-10V, Mains Cut Dimming
Physical
Colour
Black
Orientation
Adjustable
Recessed depth (mm)
114
Spot diameter (mm)
95
Length (mm)
95
Net weight (kg)
0.29
Package height (mm)
157
Package width (mm)
210
Package length (mm)
135
IP internal
20
CE
UKCA

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

Required (11)
Optional (4)
All
Power supply
Frame
Thumbnail
x1
Electrical Continuous current power supply 220/240V - 50/60Hz. Adjustable Current 300mA-13W / 350mA-15W / 400mA-18W / 450mA-20W / 500mA-22W / 550mA-24W / 600mA-27W / 650mA-29W / 700mA-31W / 750mA-32W / 800mA-33W / 850mA-35W / 900mA-38W / 950mA-40W / 1000/1050mA-4... 60.9162
Thumbnail
x1
Electrical Non dimmable continuous current power supply of 220/240V - 50/60Hz with power current selected through adjustable with switch 200 mA - 8,5W / 250mA - 11W / 300 mA - 13W / 350 mA - 15W / 400 mA - 17,5W / 450 mA - 19,5W / 500 mA - 22W 60.9160
Thumbnail
x1
Electrical Continuous current power supply of 13-20W - Dim 1-10V&Push - 110/240V - 50/60Hz with power current selected through adjustable 60.9208
Thumbnail
x1
Electrical Continuous current power supply 20W, 220/240V - 50/60Hz with power current selected through adjustable switch. Dimmable 0-10V/PWM/RX. Output current: 500mA - 21W / 450mA - 19W / 400mA - 17W / 350mA - 15W / 300mA - 12W / 250mA - 10W. 60.9843
Thumbnail
x1
Electrical 300mA, 20 W, 220/240 V - 50/60 Hz constant current power supply. Dimmable by Dali2 60.9713.0300
x1
Electrical Continuous current supply source of 240V - 50/60Hz with dimmable Dali 2, Push dimming. 150mA - 7.8W / 200mA - 10.4W / 250mA - 13W / 300mA - 15.6W / 350mA - 18.2W / 400mA - 20.8W / 500mA - 26W / 600mA - 31.2W / 700mA - 36.4W / 750mA - 39W / 800mA - 41.6... 60.7678
Thumbnail
x1
Installation Trim Frame 08.0671.14
Thumbnail
x1
Installation Trim Frame 08.0671.40
Thumbnail
x1
Installation No Trim Frame 08.0673.00
x1
Electrical Constant current power supply 42W, 220–240V CASAMBI dimmable. 60.7785
Thumbnail
x1
Electrical Mains dimming 20W Constant current power supply, AC phase-cut adjustable, trailing & leading edge dimming, 220/240V - 50/60Hz, with dip-switch programmable power supply current. Output current: 900mA - 20W / 850mA - 20W / 800mA - 20W / 750mA - 20W / 70... 60.9467

Spare Parts

Eclectic-90-Spare-Parts-Drawing-LED-ARRAY
. Spot Lens for Eclectic 90 Led Array
08.0714.00
. Medium Lens for Eclectic 90 Led Array
08.0715.00
. Flood Lens for Eclectic 90 Led Array
08.0716.00
. Wide Flood Lens for Eclectic 90 Led Array
08.0717.00
. Cone Frontal for Eclectic 90
08.0724.14
. Cone Frontal for Eclectic 90
08.0724.40
. Soft Frontal for Eclectic 90
08.0725.14
. Soft Frontal for Eclectic 90
08.0725.40
. Flat Frontal for Eclectic 90
08.0726.14
. Flat Frontal for Eclectic 90
08.0726.40
. Module Fix for Eclectic 90
08.0741.00
. Module Adjustable for Eclectic 90
08.0742.00
