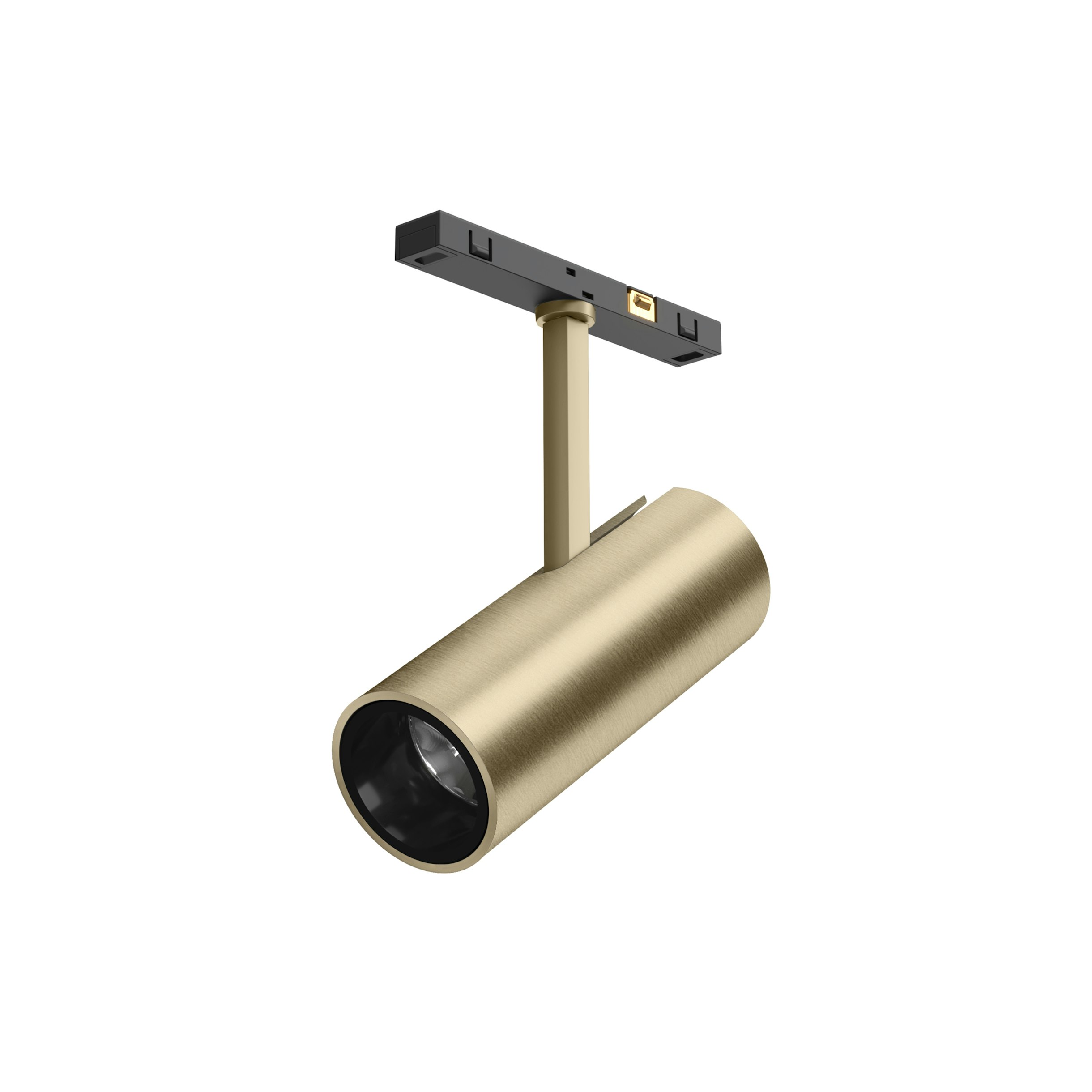

05.5110.ES.CB Brushed BronzeFind Me 1 Casambi Dimmable
Designed by FLOS Architectural, 2023
LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual wireless adjustment via Casambi. Casambi control implemented via the FLOS Control® app for mobile devices (available in the Apple Store and Google Play). Accessories included (honeycomb grid and protection bar).
5.5W - 309lm - 2700K - CRI> 90 - Beam° 14
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
5.5
Source flux (lm)
432
Lumen Output (lm)
309
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
14
Beam angle C90-270 (º)
14
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
400
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable Casambi
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Brushed Bronze
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.11
IP internal
20
Non-replaceable light source
Replaceable control gear by a professional
