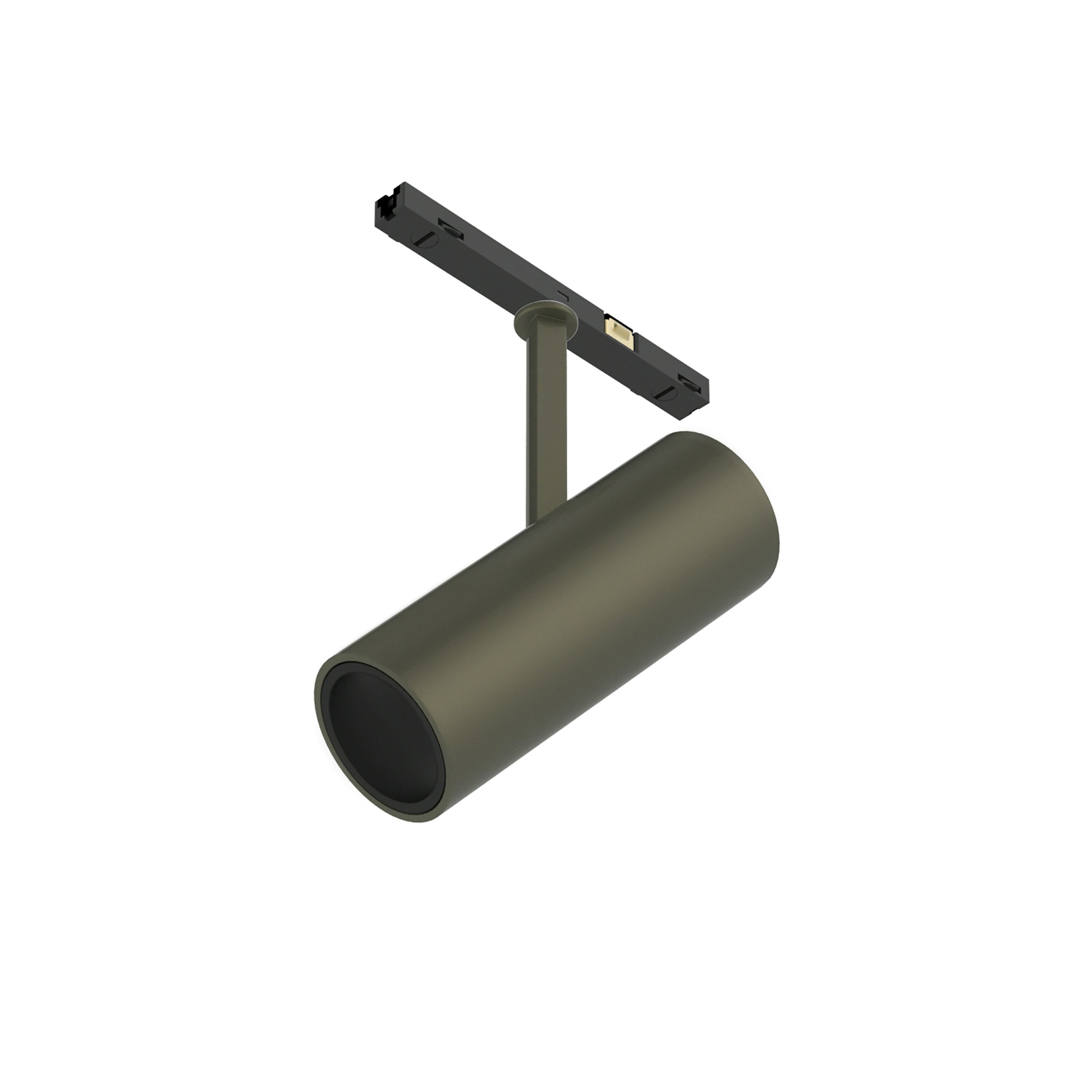

09.3913.CZA BronzeFind Me 1 Casambi integrated
Designed by Jorge Herrera, 2020
Accent lighting LED module. Incorporated DC/DC electronic converter. Casambi via Flos Control App to individually control the lights.
5.5W - 284lm - 2700K - CRI> 90 - Beam° 20
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
5.5
Source flux (lm)
450
Lumen Output (lm)
284
Efficacy (lm/W)
34
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50>50.000h (Tc=85ºC)
Beam angle C0-180 (º)
20
Beam angle C90-270 (º)
20
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
400
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable Casambi
Dimming range (%)
1-100
Physical
Colour
Bronze
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
33
Net weight (kg)
0.11
IP internal
20
Notes
Accessories included (honeycomb and screening crosspiece). The control system with the Casambi version of light fixtures is directly and individually regulated wirelessly using the application FLOS Control® powered by Casambi.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
