Johnny

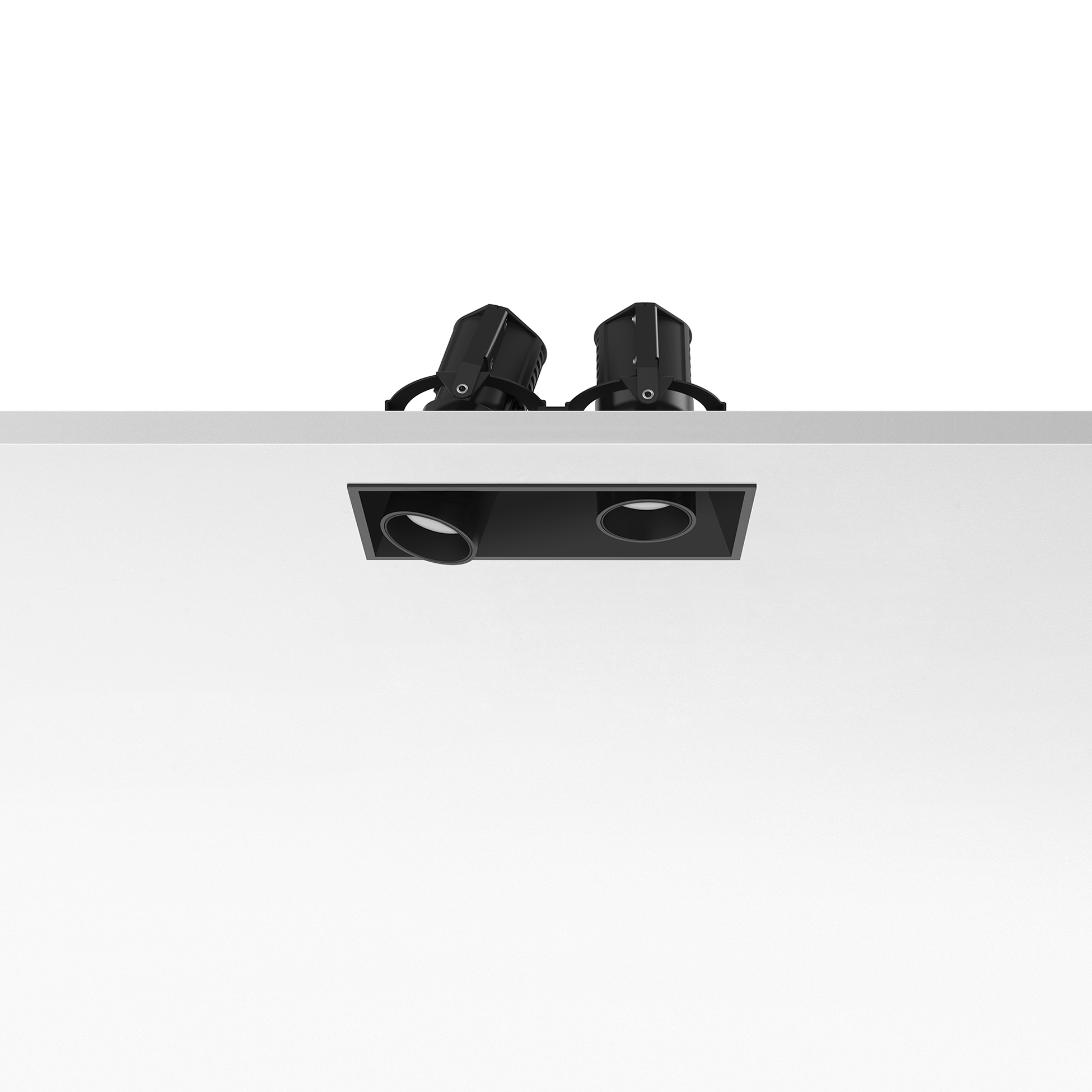

03.0713.14A BlackJohnny 80 Trim 2L Square
Designed by FLOS Architectural, 2016
Recessed luminaire with LED light source. Power supply not included. Requires one power supply for each optic body.
LED - Power LED - 2 x 6.2W - 2 x 385lm - 2700K - CRI> 90 - Beam° 11
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
2
Power (W)
6.2
Lumen Output (lm)
385
Schematic light drawing
.SVG)
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Beam angle C0-180 (º)
11
Beam angle C90-270 (º)
11
Electrical
Insulation class
III
Frequency (Hz)
50/60
Forward voltage (V)
12
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1
Emergency
No
Physical
Colour
Black
Trim
No
Orientation
Adjustable
Longitudinal tilting (°)
20
Transversal tilting (°)
20
Recessed depth (mm)
192
Net weight (kg)
0.45
IP internal
20
IP external
20
Notes
Accessories included (honeycomb and screening crosspiece).
