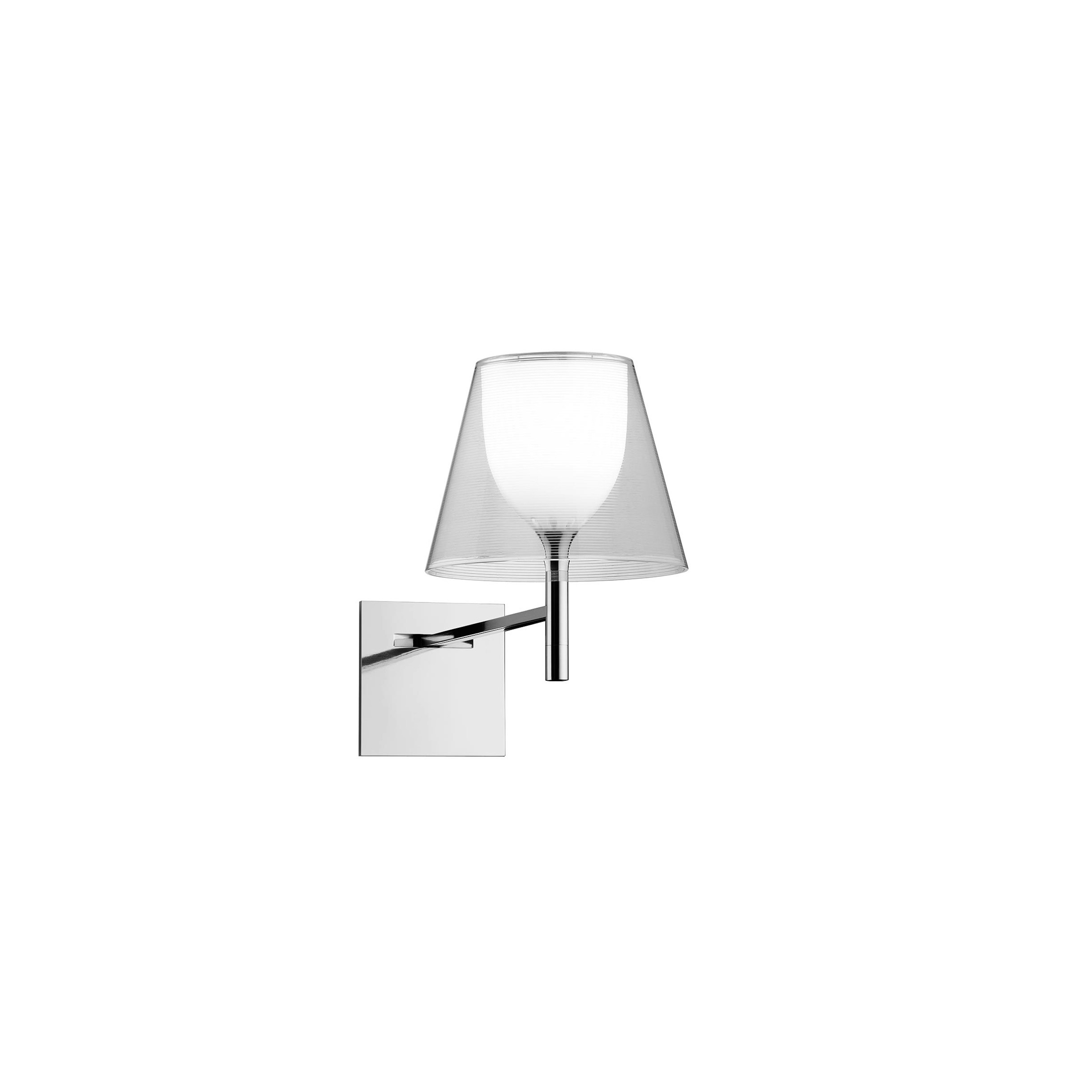

F6307000 TransparentKTribe Wall
Designed by Philippe Starck, 2007
Wall mounted fixture providing diffused lighting; a switch located near the diffuser allows for 4-level light adjustment via a "remote" dimmer. Cover rose in die-cast, polished and chrome-plated Zamak alloy. Arm and diffuser support in polished aluminum tube. Injectionmolded PC (polycarbonate) inner diffuser opal color. Outer diffusers in transparent or fumèe PMMA (polymethylmethacrylate) and silver or bronze on the inner surface, by vacuum aluminum coating. Injection-molded PC (polycarbonate) upper ring, completely transparent, or transparent brown for the outer bronze diffuser.
Halogen - 70W
Technical Drawing
Main specifications
EAN
8059607006177
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
70
Schematic light drawing
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Batteries inside
No
Physical
Colour
Transparent
Length (mm)
240
Net weight (kg)
1.7
Package volume (m3)
0.05
IP internal
20
Bulbs
Spare Parts
01.
transparent diffuser assembly
RF6255007
