La Plus Belle
F3680046 Bronze

La Plus Belle

Plus Belle is a mirror with incorporated light sources. The aluminium frame is available in various finishes (brushed gold, brushed copper, polished bronze and brill, and houses high chromatic rendering led light sources (CRI 95) and an optical opal silicone diffuser. The mirror is made of 6 mm extra-clear glass, with a layer of safety and aesthetic film to the rear, and it is fixed to the frame by means of a polycarbonate glazing bead. The Plus Belle mirror is hung from the wall by means of an aesthetic effect hook with a dual magnet fixing device to keep it in position. It is powered by means of a wall-mounted power supply unit or IEC cable and connector socket. The optic sensor command fitted to the mirror or remote 0-10/1-10 V - PUSH - DALI control can be used as a dimmer to adjust the light intensity by 10% to 100% in either direction.

60W - 2700K

Find a Flos store
Also available in:
Technical Drawing
laplusbelle
Main specifications
EAN
8059607005033
Mounting
Wall
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
60
Photometric
Light distribution
Asymmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable
Dimming interface
Dimmer Integrated
Plug type
Type C
Batteries inside
No
Physical
Colour
Bronze
Length (mm)
56
Net weight (kg)
24.5
Package height (mm)
1015
Package width (mm)
130
Package length (mm)
2315
Package volume (m3)
0.31
IP internal
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
Risk 0
03 - Italy
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F3680046-laplusbelle-flos-boom
01. La Plus Belle Opal silicone diffuser ring
RF3680100
02. La Plus Belle Anodized bronze mirror hook
RF3680246

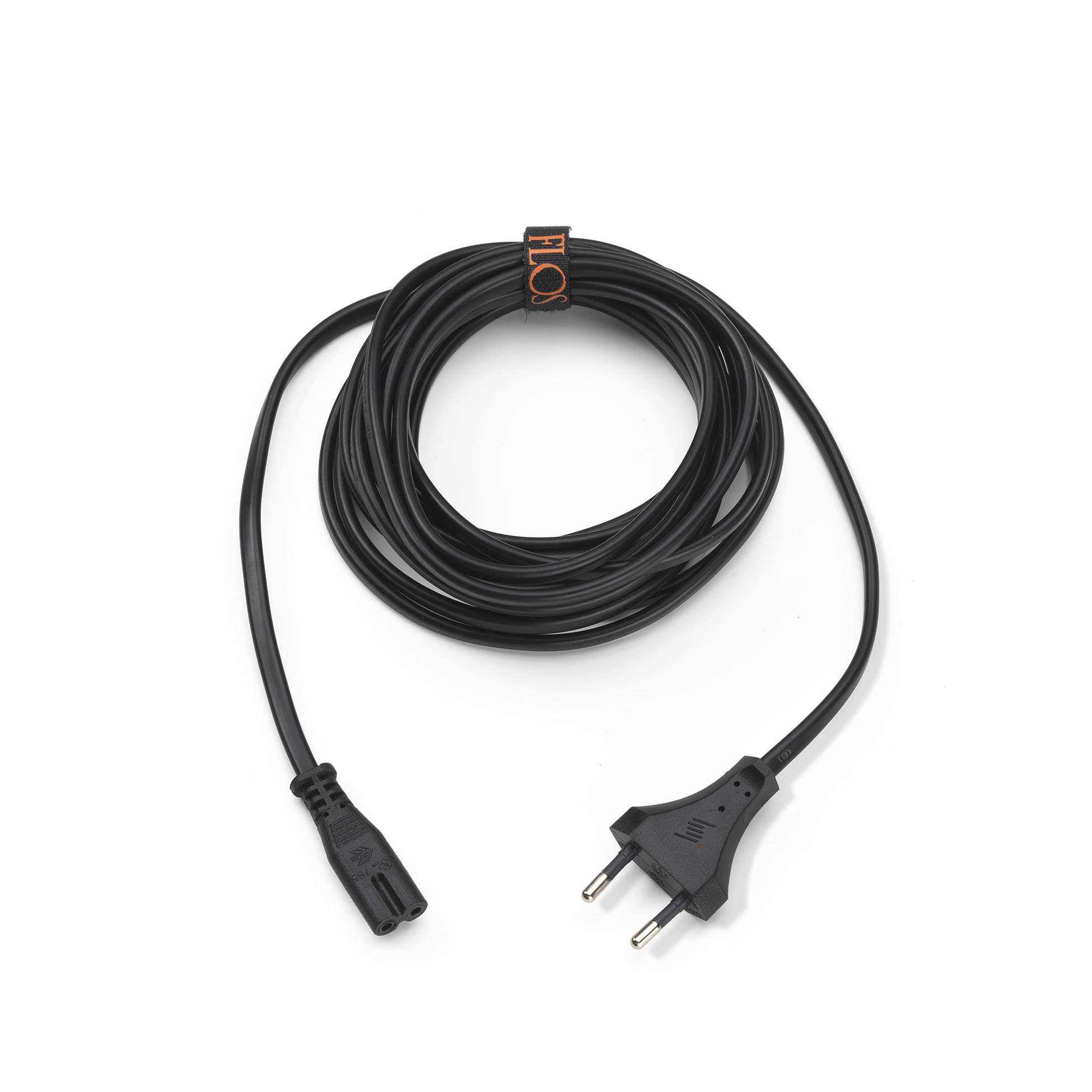

03. La Plus Belle Electrical mounting assembly
RF3680300
04. La Plus Belle Anodized bronze power unit
RF3680446
