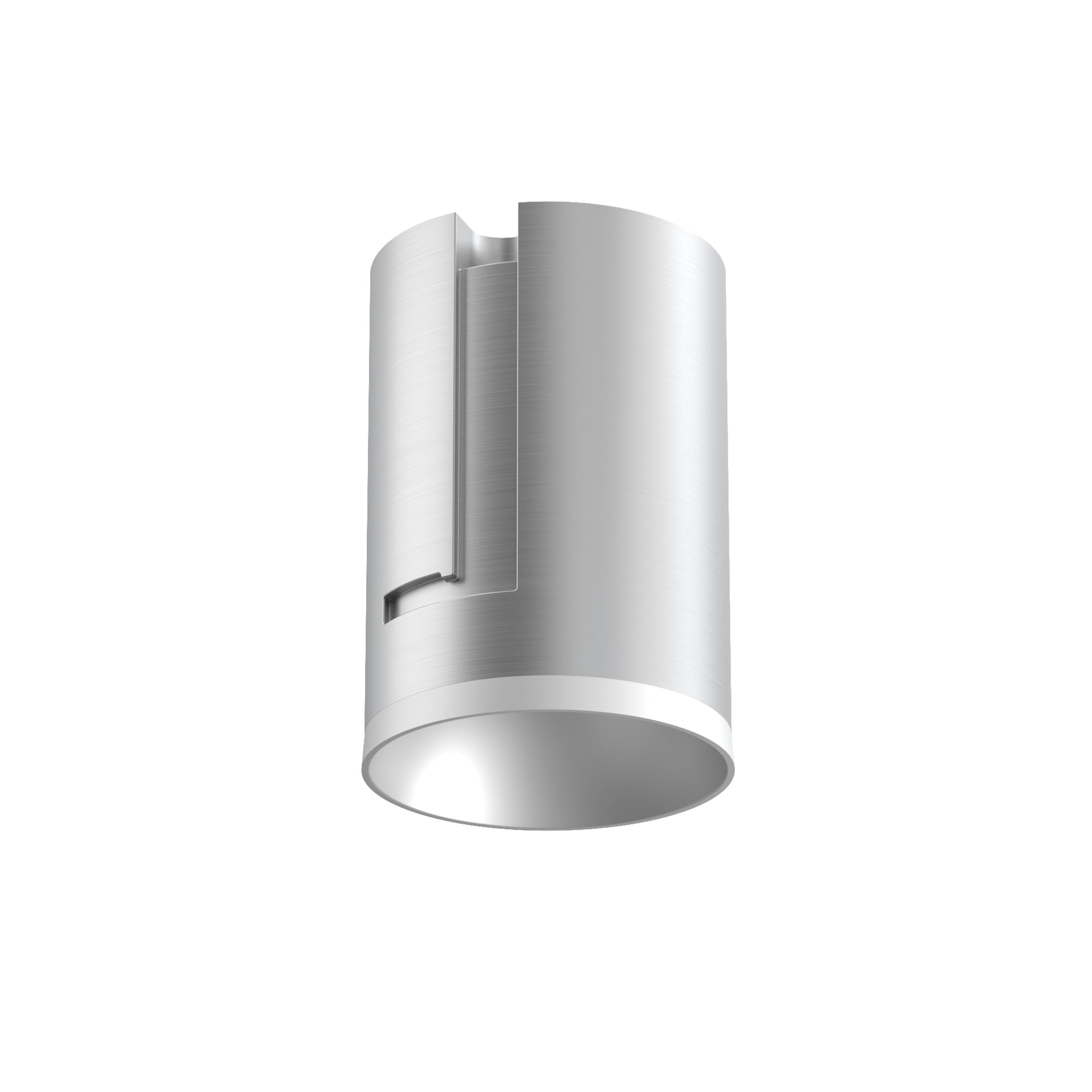

03.9951.40A WhiteLight Shadow Pro Ø 60 Fixed Optic Medium
Designed by FLOS Architectural, 2020
LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.
15W - 1180lm - 2700K - CRI> 90 - Beam° 25
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
Power (W)
15
Source flux (lm)
1402
Lumen Output (lm)
1180
Efficacy (lm/W)
79
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
2
Rf fidelity index
93
Rg gamut index
99
LED Life / Failure Ratio
L70B40 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
25
Beam angle C90-270 (º)
25
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
35.9
LED current (mA)
400
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable DALI 2, Dimmable, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming
Physical
Colour
White
Orientation
Fixed
Spot diameter (mm)
60
Net weight (kg)
0.22
Package height (mm)
157
Package width (mm)
210
Package length (mm)
135
IP internal
20
IP external
54
Notes
Please select 250 mA setting in the remote driver to match the power of the Adjustable version.
Replaceable (LED only) light source by a professional
