The Running Magnet

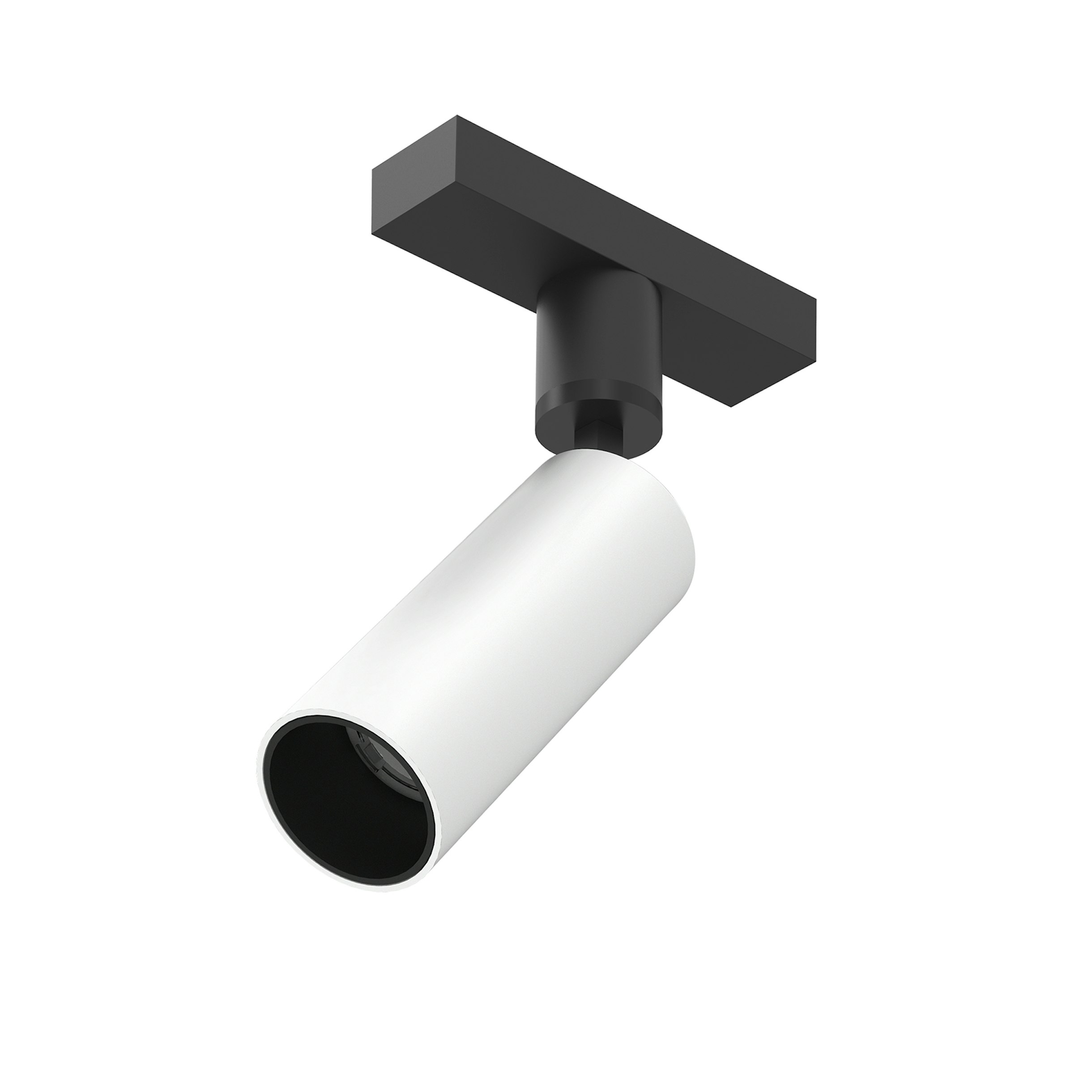

03.6285.40CCB WhiteSpot 120 Casambi integrated
Designed by FLOS Architectural, 2020
Accent lighting LED module to be installed in The Running Magnet System. Built-in DC/DC electronic voltage converter.
12.5W - 746lm - 2700K - CRI> 90 - Beam° 18
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
12.5
System power (W)
13
Source flux (lm)
1003
Lumen Output (lm)
746
Efficacy (lm/W)
51
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Rf fidelity index
90
Rg gamut index
99
LED Life / Failure Ratio
L80B20 >36.000h (Tc=85ºC)
Beam angle C0-180 (º)
18
Beam angle C90-270 (º)
18
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
24
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable Casambi
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
White
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Transversal tilting (°)
90
Length (mm)
46
Net weight (kg)
0.35
Package height (mm)
19
Package width (mm)
22
Package length (mm)
17
IP internal
20
Notes
Maximum 14 spots for a single driver. Accessories included (honeycomb and screening crosspiece). The control system with the Casambi version of light fixtures is directly and individually regulated wirelessly using the application FLOS Control® by Casambi.
Replaceable (LED only) light source by a professional
