Tatou
F7764009White

Tatou Floor

Floor lamp emitting diffused light. External diffuser in polycarbonate. Internal diffuser in injection-moulded opal polycarbonate. Base and support in painted steel.

Halogen - 205W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Floor-Tatou
Main specifications
EAN
8059607007402
Mounting
Floor
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
205
Schematic light drawing
F7764009WTATOU_F_205W-HL
Photometric
Lighting type
Direct, Indirect
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type C
Batteries inside
No
Physical
Colour
White
Length (mm)
500
Cord colour
Black
Cord length (mm)
1700
Net weight (kg)
16
Package volume (m3)
0.6
IP internal
20
CE
EAC
CMIM
ENEC
IECEC
RETILAP
Autoprotected Lamp
Gwt 850 (º)
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D

Bulbs

Thumbnail
x1
NOT INCLUDEDLED 21W E27 2450lm 3000K DIMMERRF26998
Thumbnail
x1
NOT INCLUDEDLED Opal Lamp E27 21W 2700K A65 DimmableRF30429

Spare Parts

F7764009-tatou-f-flos-boom
01. Tatou F/S White diffuser assembly
F7755009
02. Tatou F/S Kit with screws opal reflector assembly
RF7755100
03. Tatou F/S Reflector assembly
RF7755200
04. Black Led Dimmer 4W -25W
RF28209
05. Kit of 5 black feet for base
RF05574
Thumbnail
x1

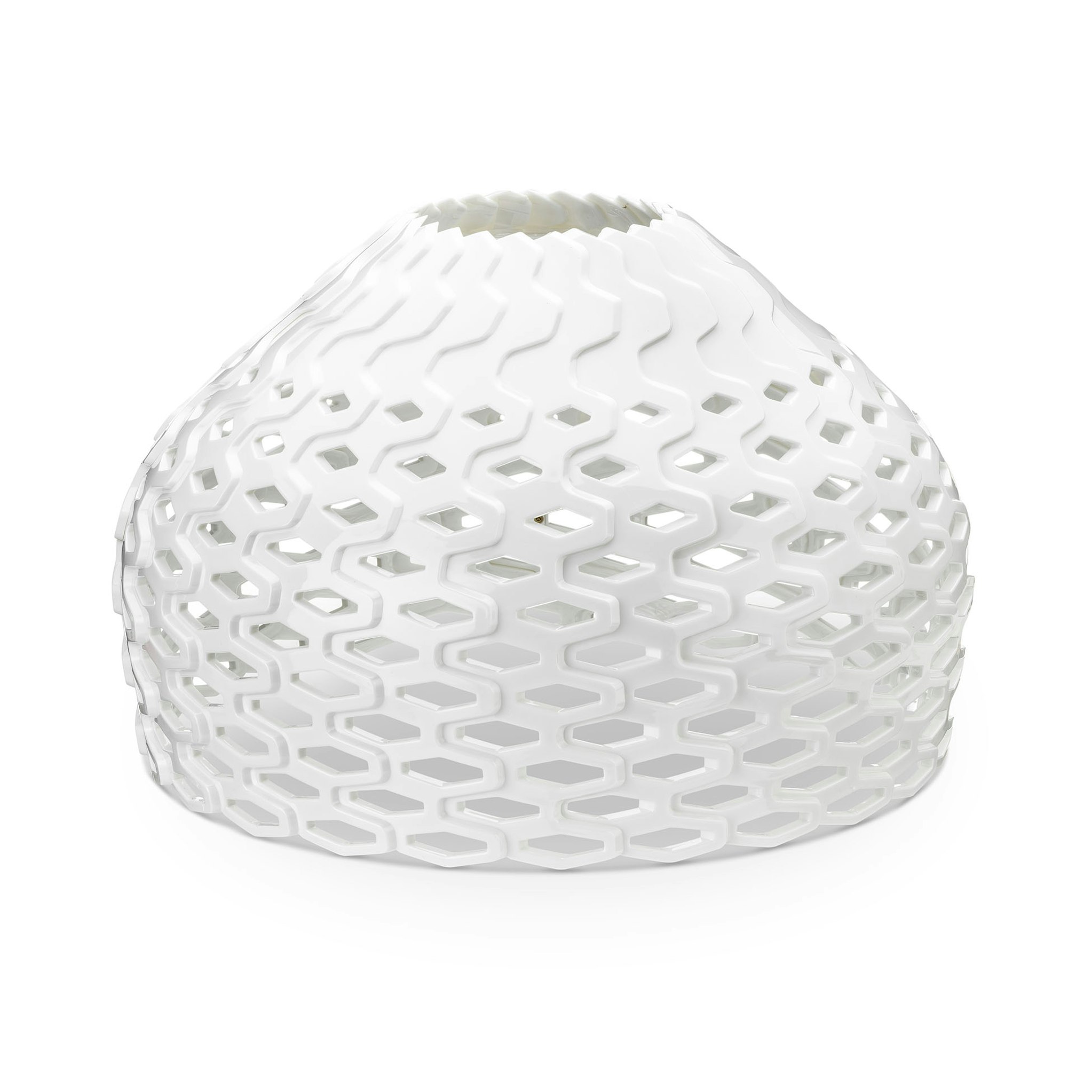

Tatou F/S White diffuser assemblyF7755009
Thumbnail
x1
Tatou F/S Kit with screws opal reflector assemblyRF7755100
Thumbnail
x1
Tatou F/S Reflector assemblyRF7755200
x1
Black Led Dimmer 4W -25WRF28209
x1
Kit of 5 black feet for baseRF05574
