The Glowing Track

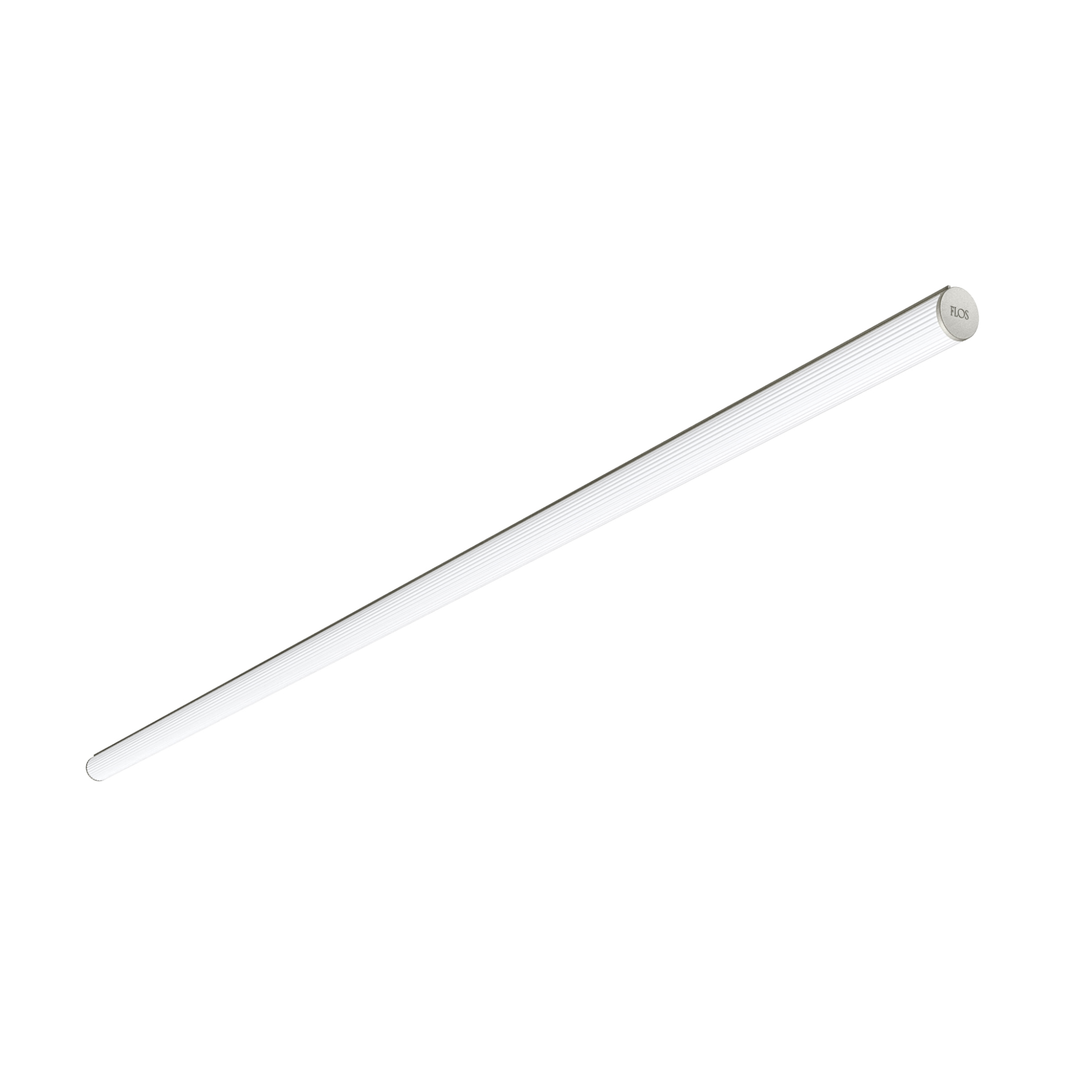

05.4574.ER.DA Brushed SteelThe Glowing Track 360 Surface Remote Driver Dali
Designed by FLOS Architectural, 2025
360º surface ambient lighting system that provides uniform light distribution. Available in four lengths (600 mm, 1200 mm, 1800 mm, and 2400 mm). Driver not included.
Length: 2410 - Surface
Technical Drawing
Main specifications
Mounting
Surface
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Top LED
Lamp category
LED
Number of lamps
1
Power (W)
49.6
System power (W)
55.2
Source flux (lm)
5648
Lumen Output (lm)
4053
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
87
Rg gamut index
104
LED Life / Failure Ratio
L80B10>72.000h_Tc65ºC
Electrical
Insulation class
III
Power supply
Remote
Dimmable
Yes
Power supply type
Dimmable DALI 2
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Brushed Steel
Orientation
Fixed
Length (mm)
2410
IP internal
20
Replaceable (LED only) light source by a professional
