The Glowing Track

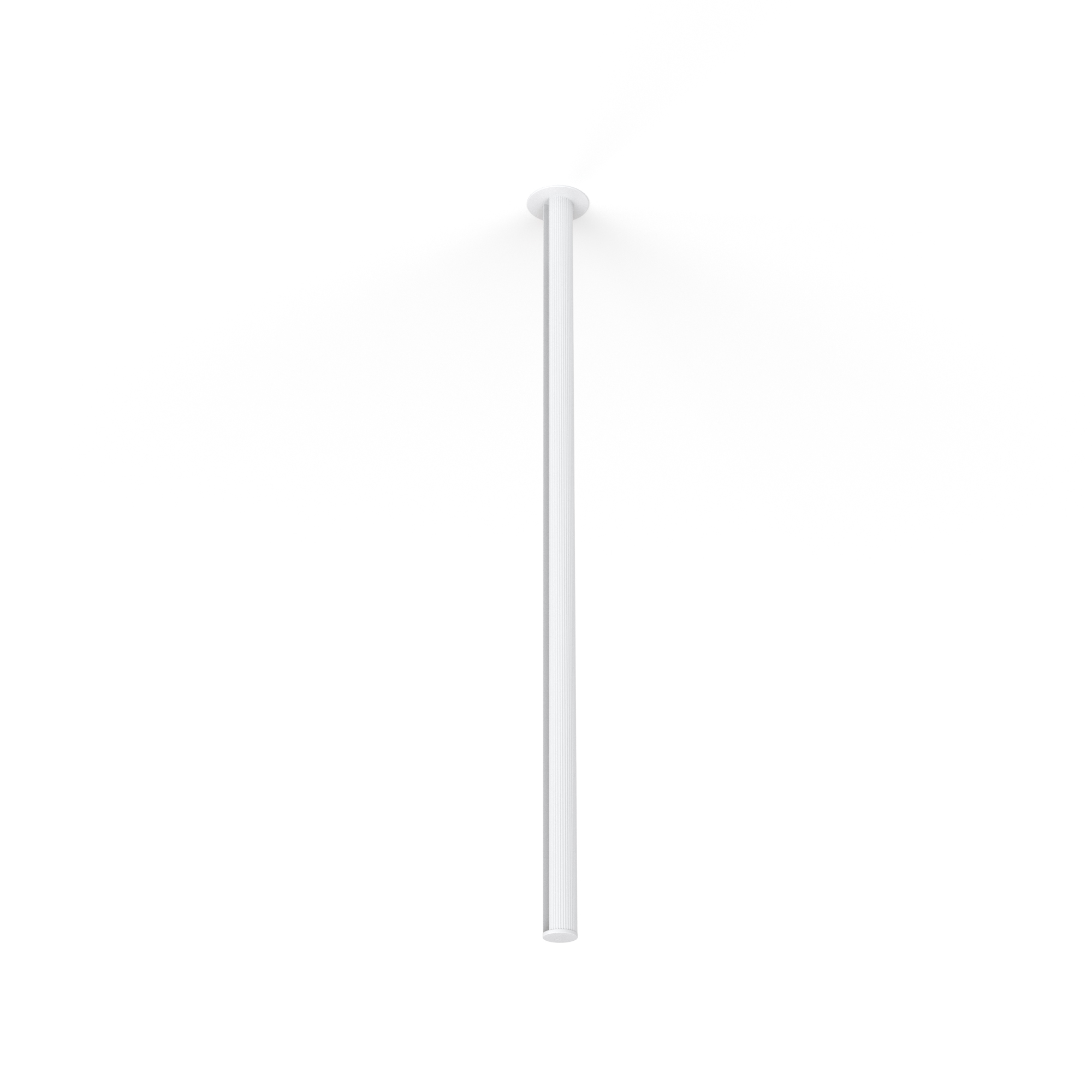

05.4533.40.DA WhiteThe Glowing Track Vertical Dali
Designed by FLOS Architectural, 2025
Surface lighting system with a vertical orientation that combines ambient lighting with a track that allows the installation of a wide range of projectors and accent lighting modules. Available in three lengths (1200 mm, 1800 mm, and 2400 mm). Driver not included.
Length: 1810 - Ceiling
Technical Drawing
Main specifications
Mounting
Ceiling
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Top LED
Lamp category
LED
Number of lamps
1
Power (W)
37.2
System power (W)
41.4
Source flux (lm)
4452
Lumen Output (lm)
2752
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
92
Rg gamut index
89
LED Life / Failure Ratio
L80B10>72.000h_Tc65ºC
UGRL
<16
Electrical
Insulation class
III
Power supply
Remote
Dimmable
Yes
Power supply type
Dimmable DALI 2
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Orientation
Fixed
Length (mm)
1810
Cord colour
Transparent
IP internal
20
Replaceable (LED only) light source by a professional
