Tight Light

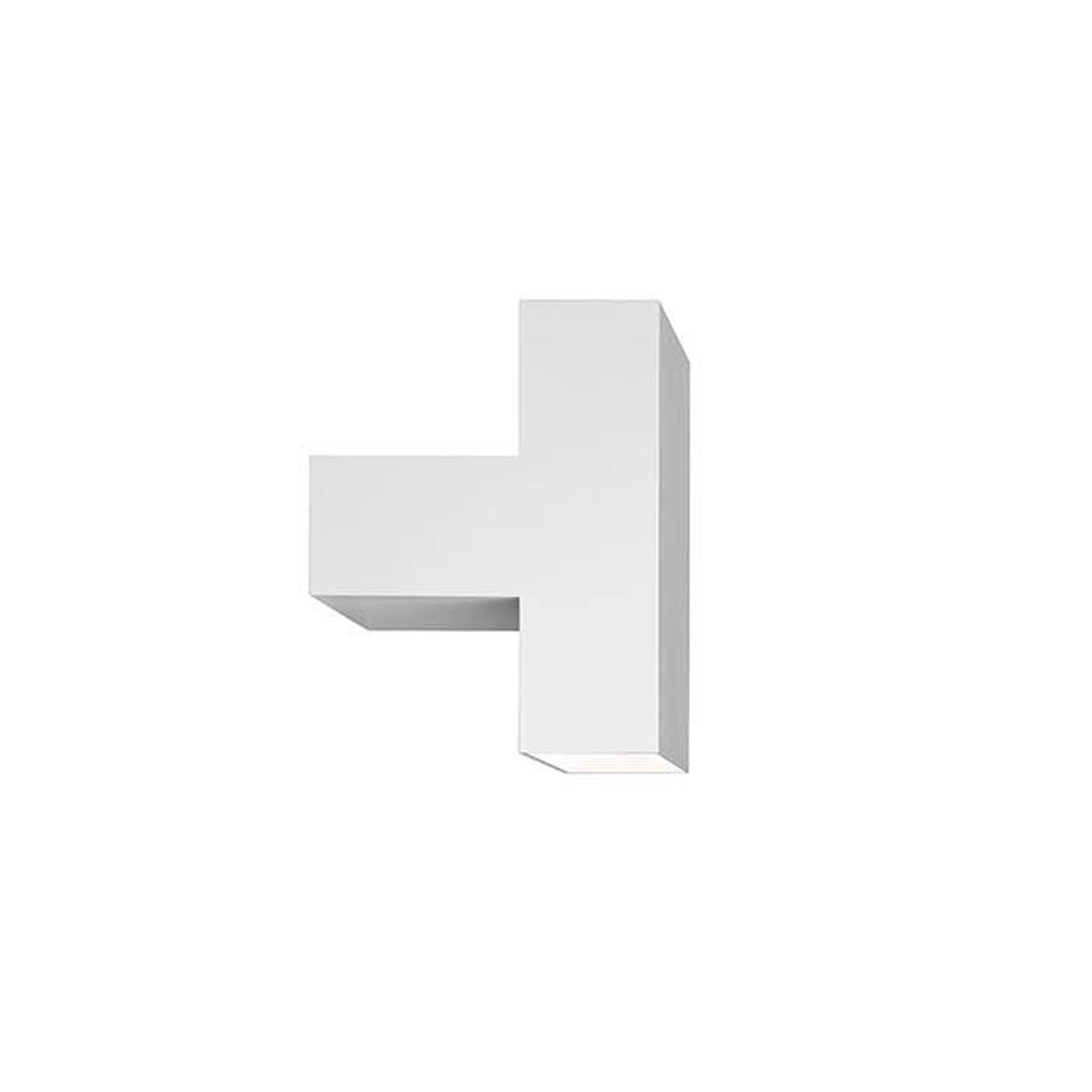

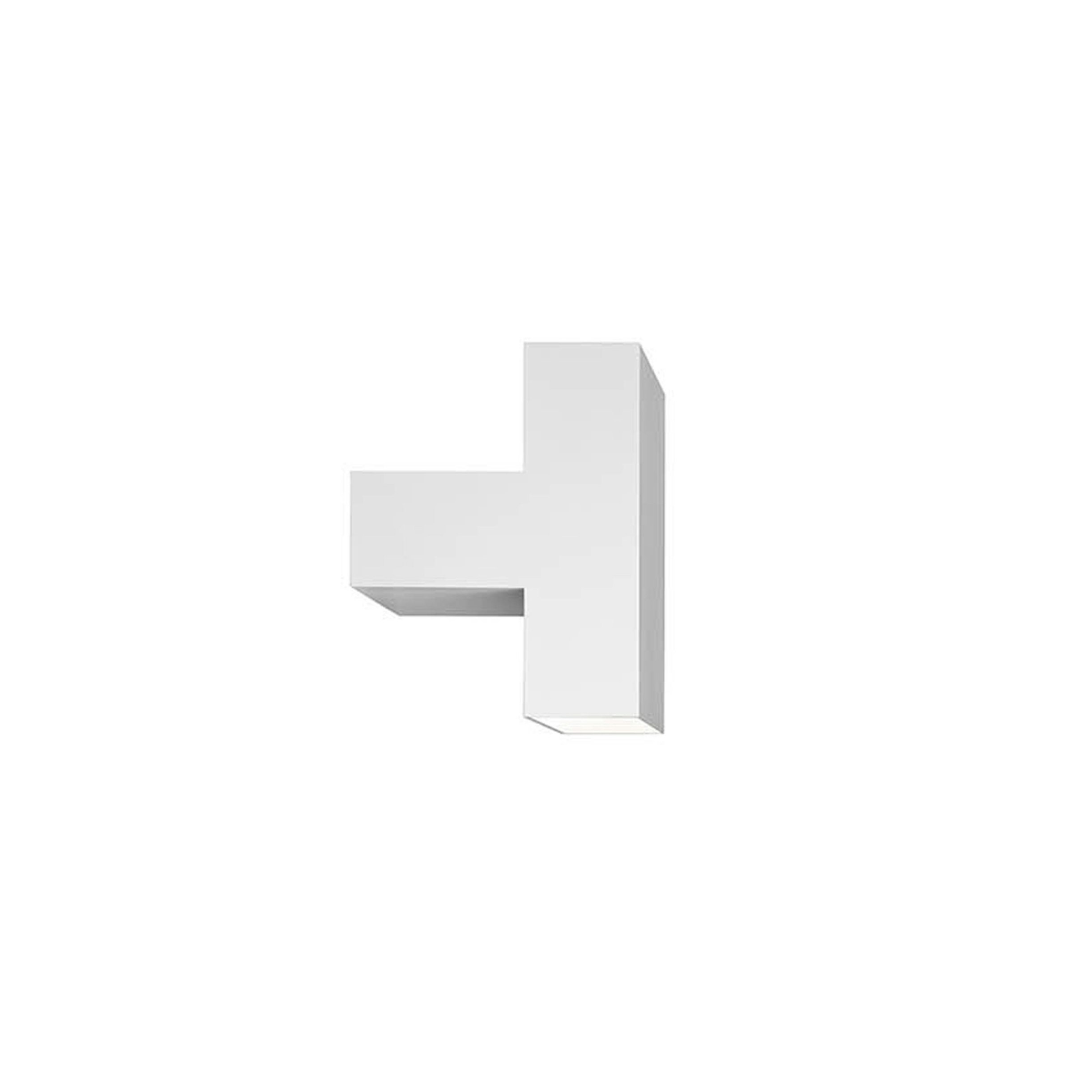

F0011009 WhiteTight Light
Designed by Piero Lissoni, 2011
Direct/indirect light wall lamp. Body in painted extruded aluminium. Lateral friezes in pressofused aluminium turned up to 45º on digital control for perfect mating with the lamp body. Diffusers in injection printed PMMA with photo-engraved finish. Injection printed wall attachment in PA66. Multi-voltage power pack integrated in the body.
20W - 1989lm - 3000K
Technical Drawing
Main specifications
EAN
8059607013045
Mounting
Wall
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
20
Lumen Output (lm)
1989
Schematic light drawing
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
CCT (K)
3000
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Batteries inside
No
Physical
Colour
White
Length (mm)
100
Net weight (kg)
1.1
Package height (mm)
160
Package width (mm)
180
Package length (mm)
210
Package volume (m3)
0.01
IP internal
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
Spare Parts
01.
Wall attachment
RF21151
02.
Driver assembly
RF0011100
03.
Kit with locking screws and termianal box
RF0011200
