09.7374.40.78 White/WhiteUT Pro 175 Lens GA-69 On Board Dimmer All White
Designed by FLOS Architectural, 2017

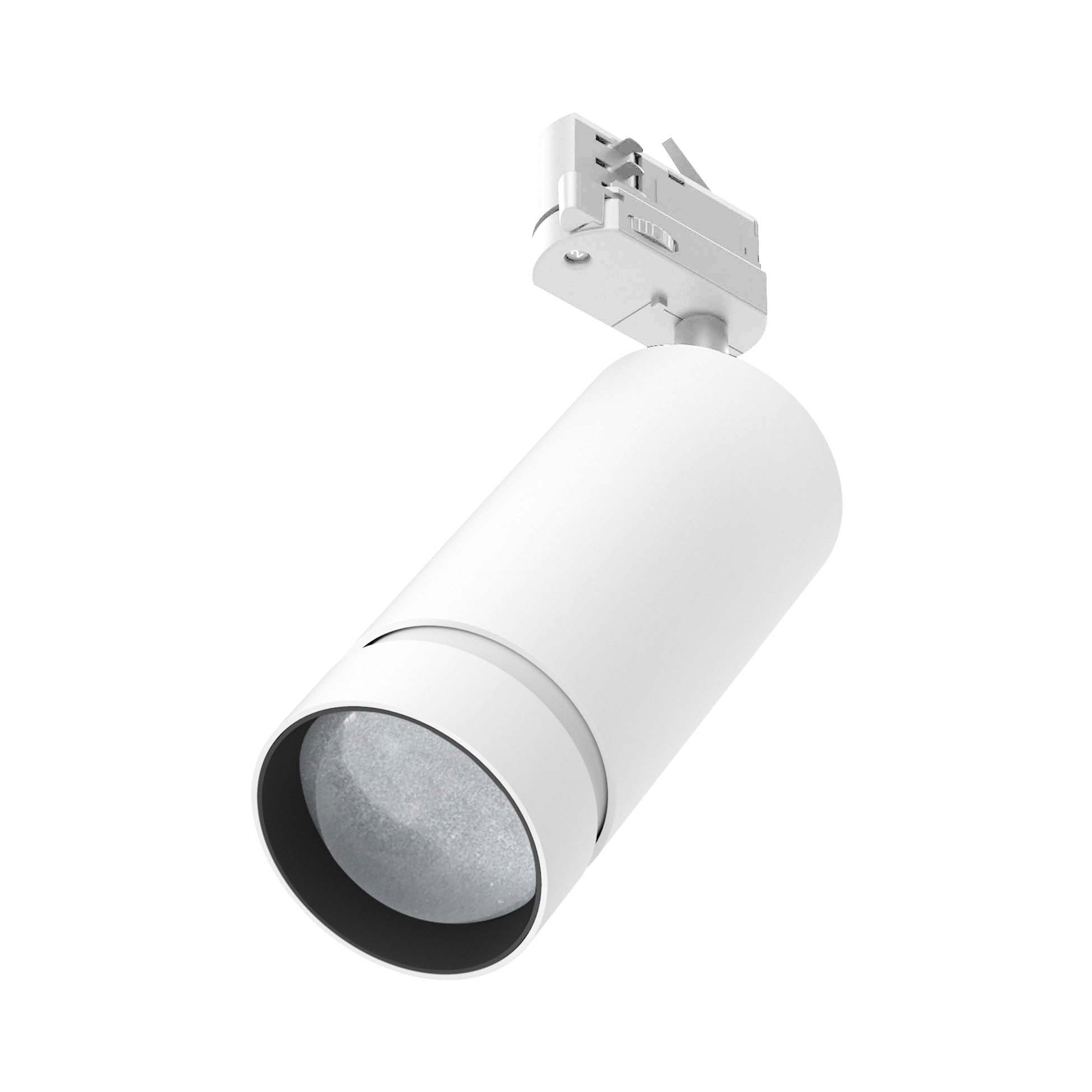

Spotlight to be installed in standard 3-phase track with LED light source. Includes adjustable lens allowing opening angle calibration from 13º to 56º. 120-270V power supply integrated. In the "All white" versions, the track adapter, the arm, the rear of the head and the head are white. Only the anti-glare ring is black.
LED - LED array - 35.3W - 2866lm - 3000K - CRI> 90 - Beam° 56
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
35.3
System power (W)
35.3
Source flux (lm)
3302.01
Lumen Output (lm)
2866
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
56
Beam angle C90-270 (º)
56
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Alternating current voltage (Vac)
230
LED current (mA)
940
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmer on board
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
White/White
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
75
Net weight (kg)
1.14
IP internal
20
IP external
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
