The Tracking Magnet

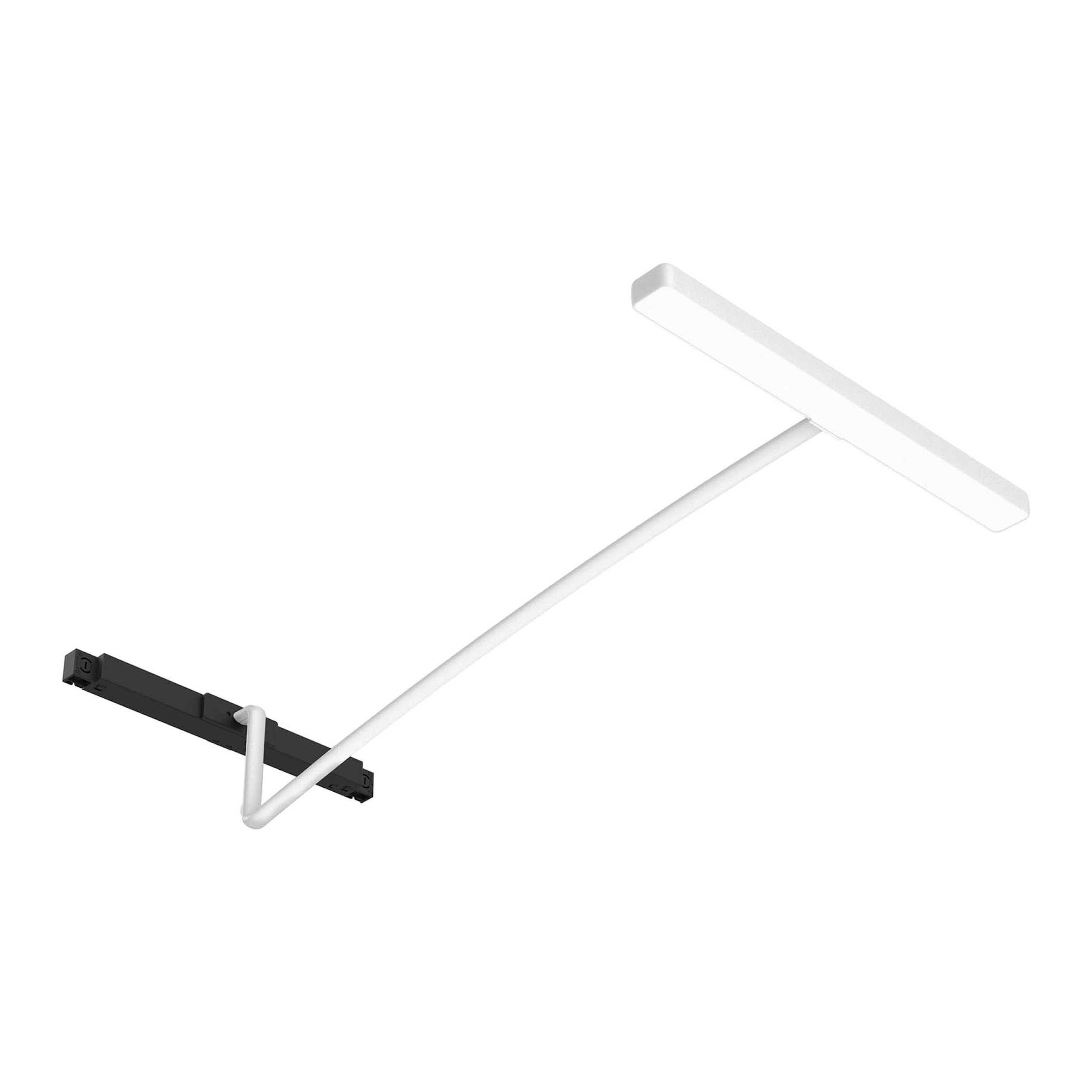

03.8090.40 WhiteWallee On Board Dimmer
Designed by Niels Bendtsen, 2017
Lighting LED module to be installed in The Tracking Magnet System.
LED - Top LED - 10W - 413lm - 2700K - CRI> 90 - Beam° 100
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Top LED
Lamp category
LED
Power (W)
10
System power (W)
9.3
Source flux (lm)
722
Lumen Output (lm)
413
Efficacy (lm/W)
44.41
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
100
Beam angle C90-270 (º)
100
Electrical
Insulation class
III
Forward voltage (V)
48
LED current (mA)
190
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmer on board
Dimming range (%)
20-100
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
White
Trim
No
Orientation
Adjustable
Rotation (º)
25
Longitudinal tilting (°)
25
Length (mm)
242
Net weight (kg)
0.22
IP internal
20
IP external
20
Notes
When installing Wallee, it may require a manual adjustment by the client/installer. Find information on how to carry out this adjustment in the instruction sheets. Only allowed with Tracking Magnet Recessed and horizontal installation.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
