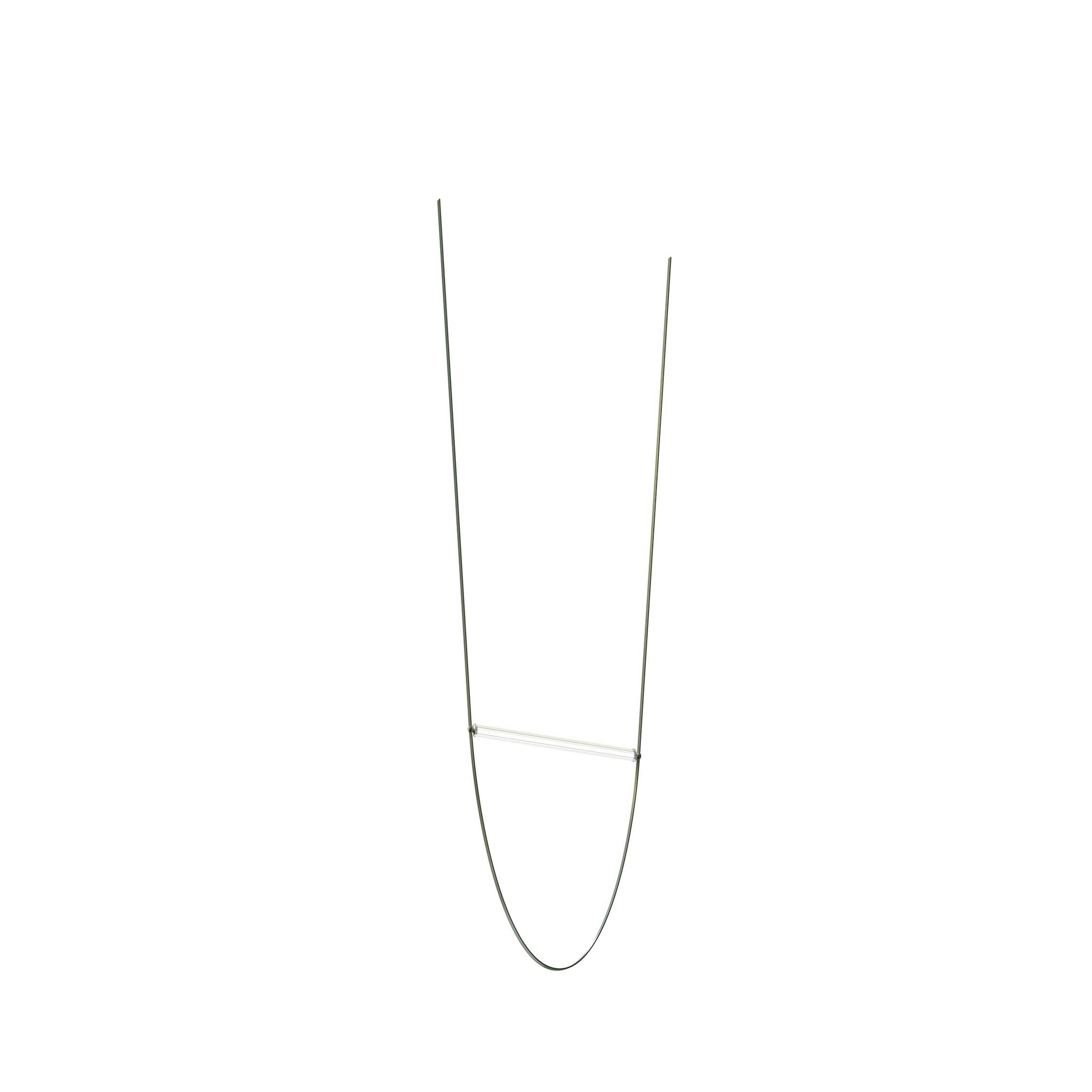

F9520039 GreenWireline
Designed by Formafantasma, 2019
Suspension lamp with diffused light. Tubular in transparent extruded glass and internal diffuser in opal PC. Ferrules made with CNC technology in satin stainless steel. Extruded cable in pink and forest green rubber. Injection molded PC rosette in the same finishes as the cable. The electronics integrated in the ceiling rose allows the use of different dimerization systems: push, 1-10, potentiometer, DALI. In the absence of these systems, the luminous flux can be set during installation, with the push system included in the canopy. Useful length of the cable 3mt.
45W - 2793lm - 2700K - CRI> 90
Also available in:
Technical Drawing
Main specifications
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
45
System power (W)
45
Lumen Output (lm)
2793
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable Push, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Green
Length (mm)
1300
Cord colour
Green
Cord length (mm)
4050
Canopy colour
Green
Canopy length/diameter (mm)
130
Canopy height (mm)
70
Net weight (kg)
7.8
Package volume (m3)
0.05
IP internal
20
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
Spare Parts
01.

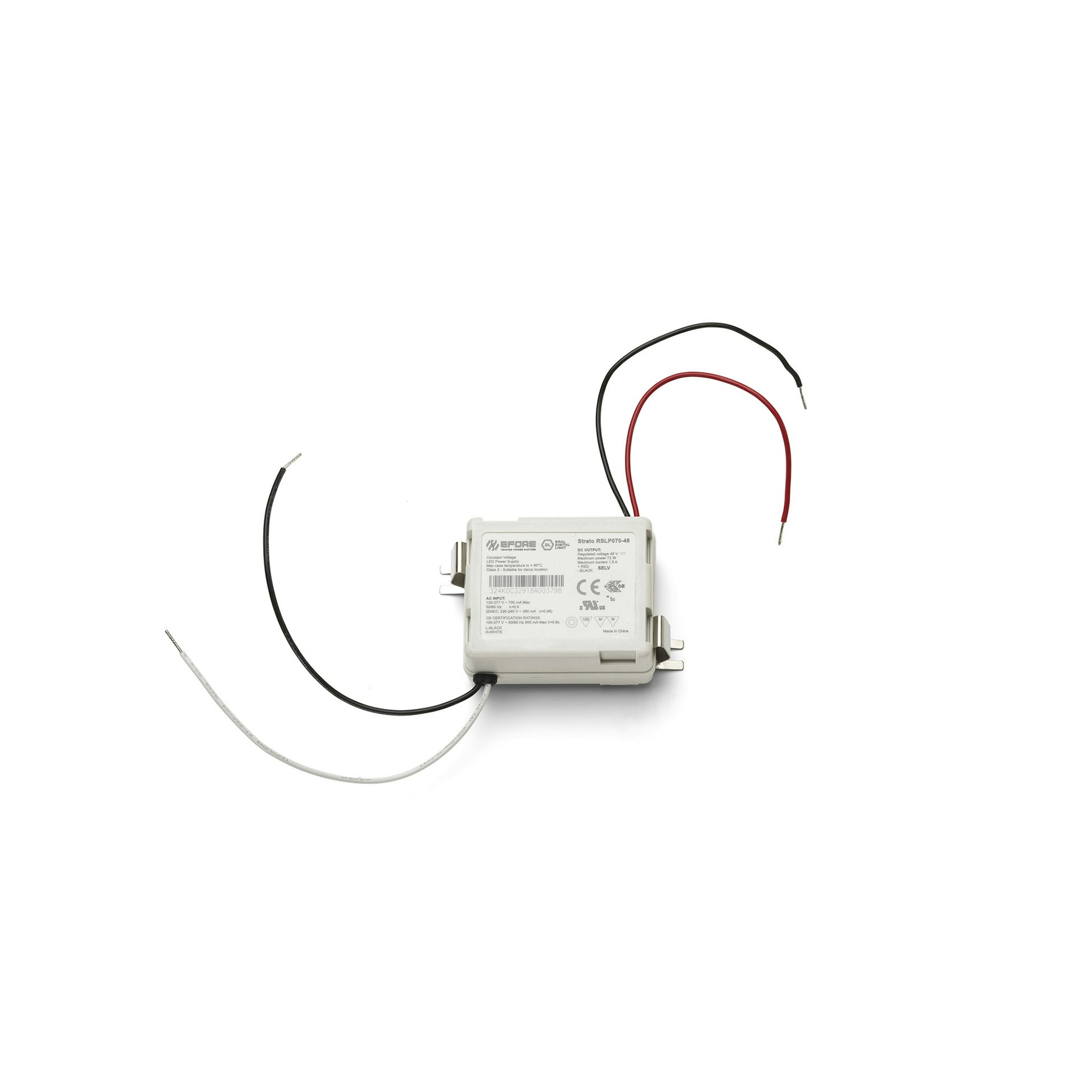

Power supply unit for led
RF22934
02.

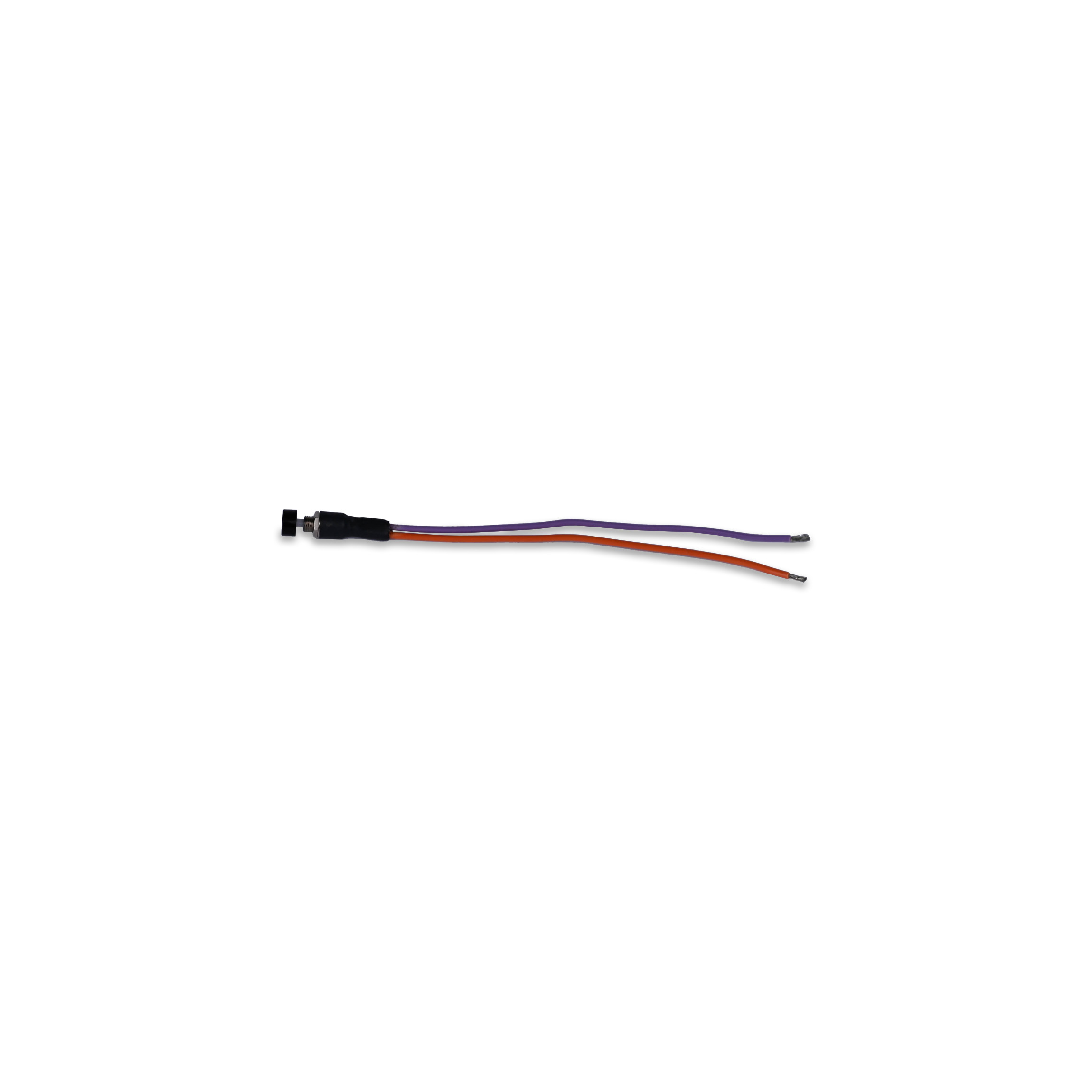

Led dimmer kit
RF34197
03.

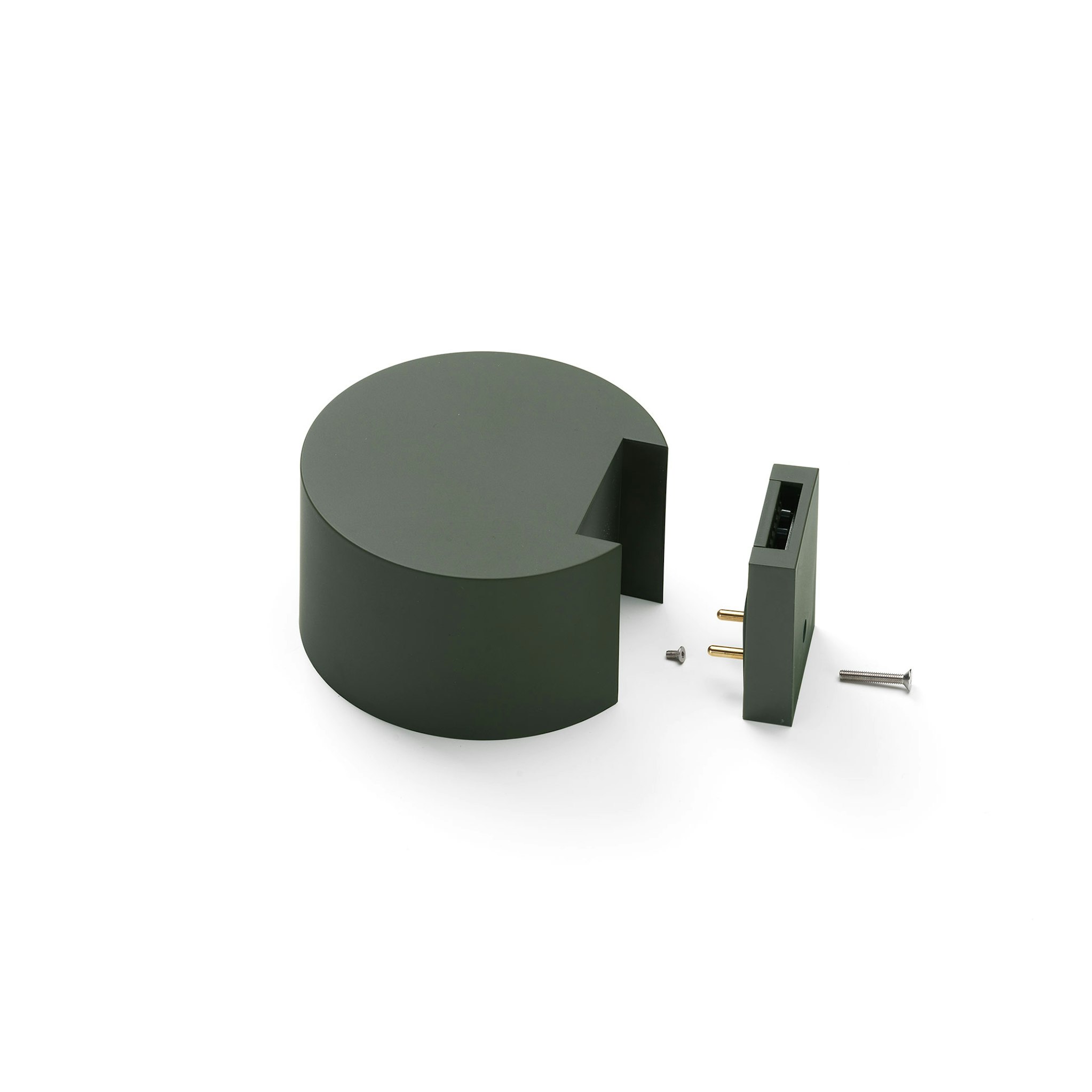

Wireline Assembly Rose Cover Green
RF9523139
04.

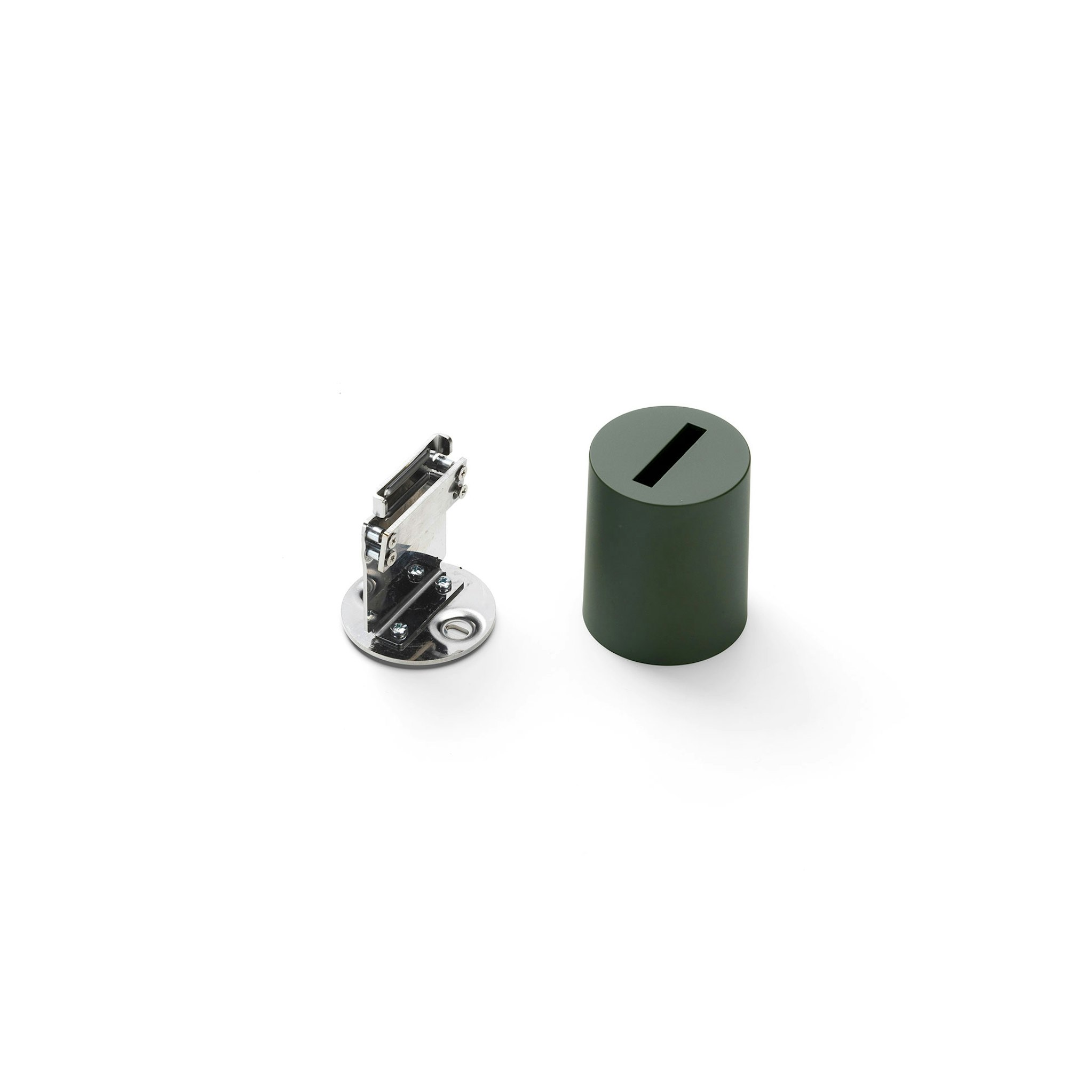

Wireline Assembly Suspension Rose for Wirelines Green
RF30045
05.

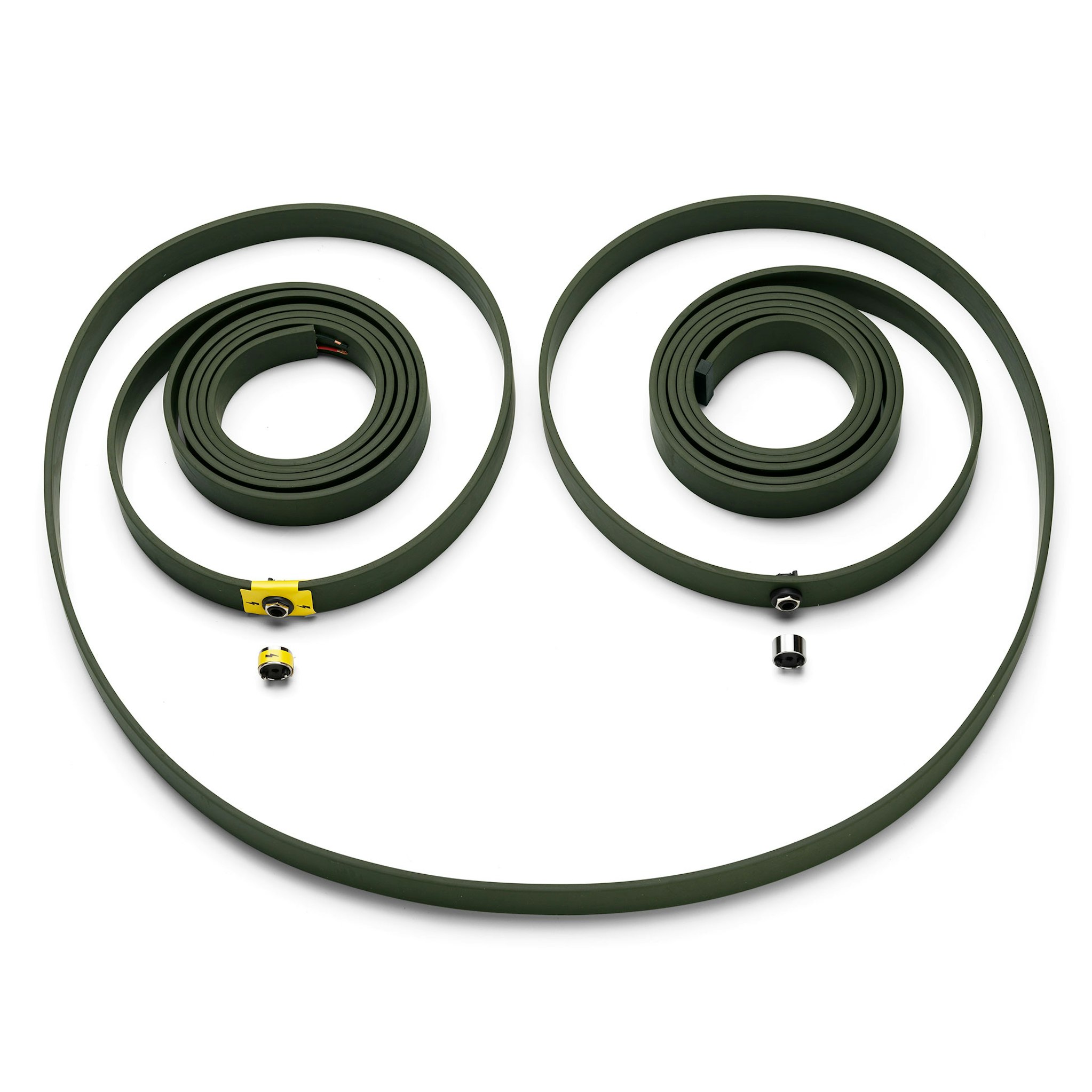

WireLine Green Wire
F9522039
06.

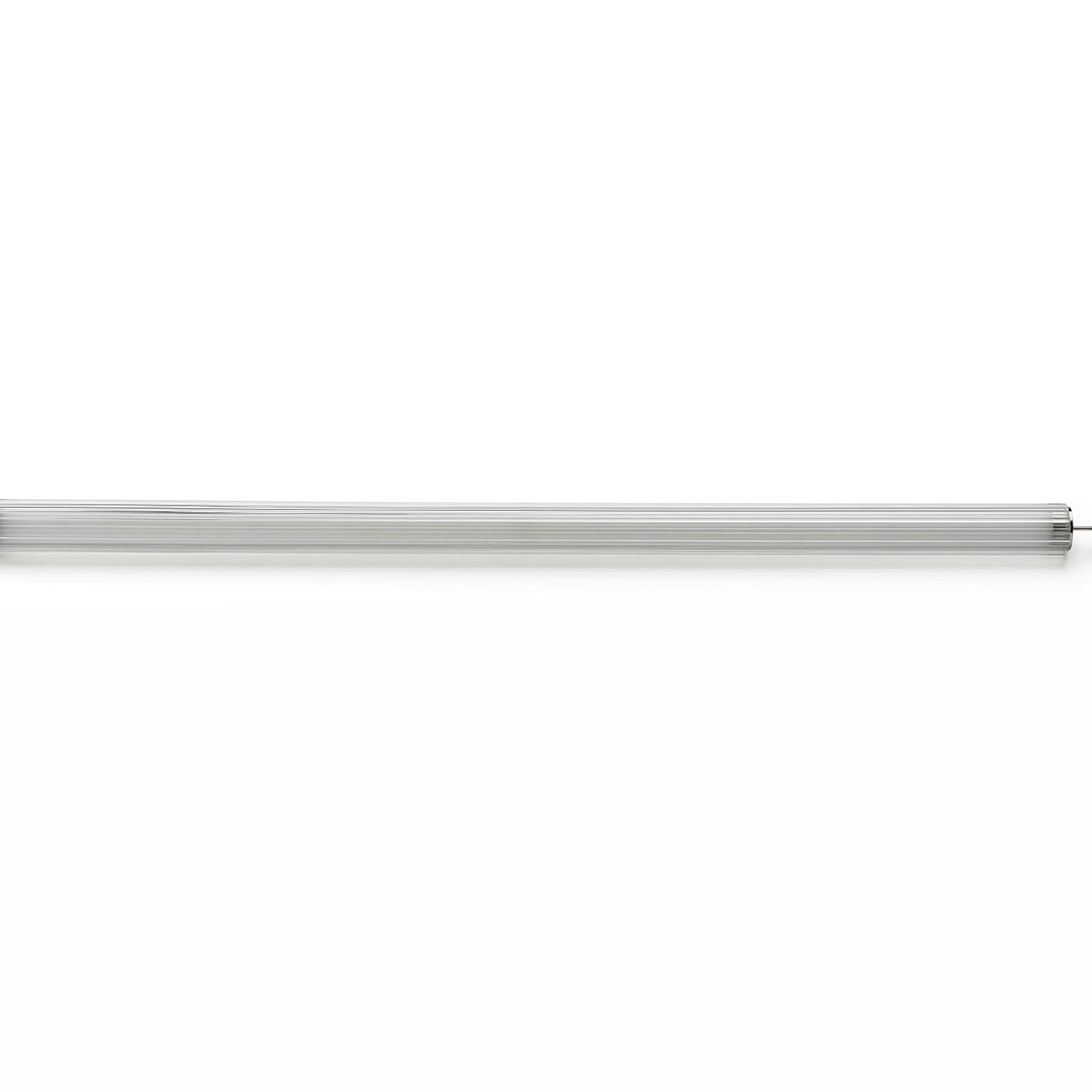

WireLine Body
F9521000
