Workmates
05.6220.40 White

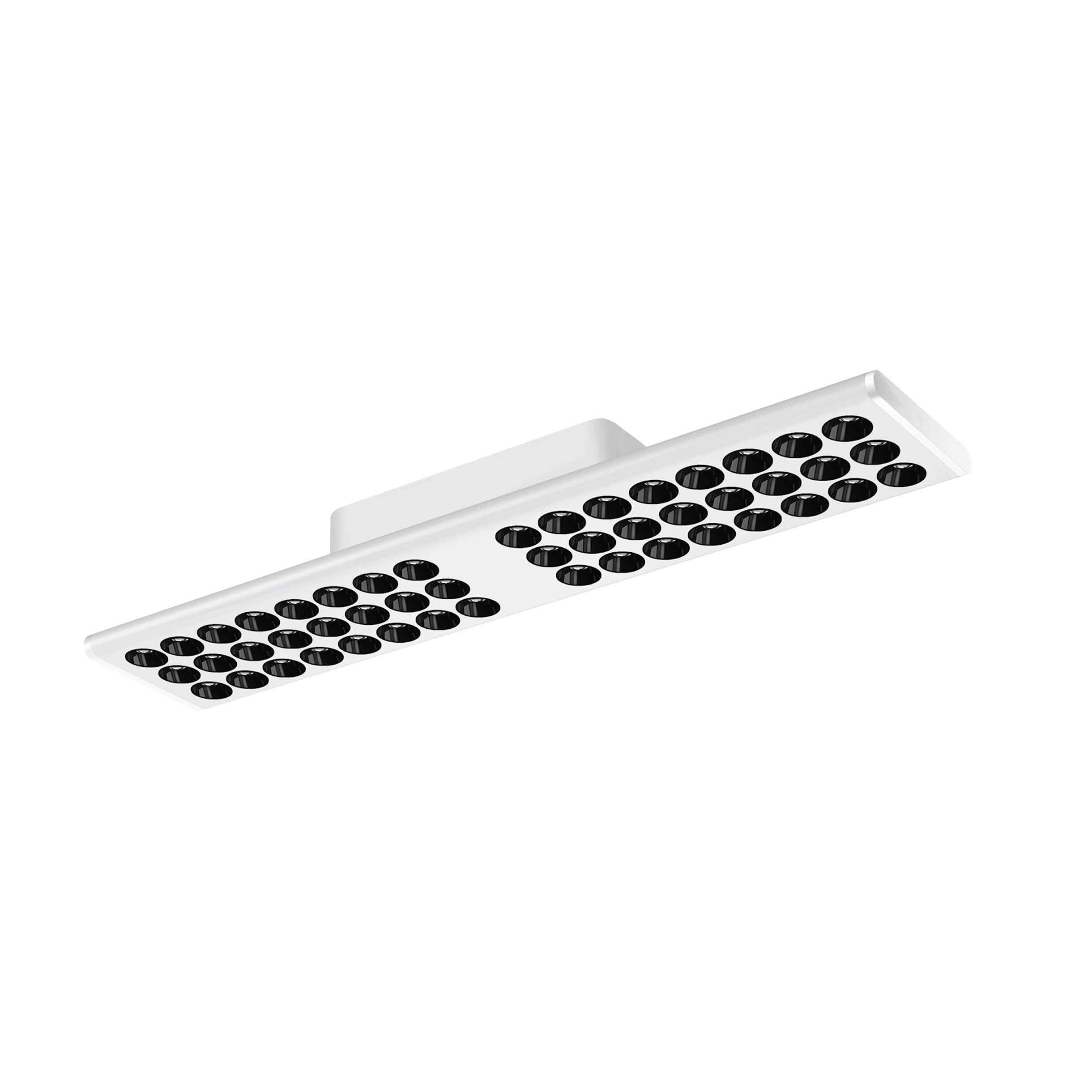

Workmates Surface Large High Efficiency No Dim
New
Designed by FLOS Architectural, 2023
Ceiling surface luminaire. Highefficiency light source. Integrated driver. UGR<19. EN12464 - cd/m2 @ 65º<3000 compliant.
LED - Top LED - 27.6W - 3186lm - 3000K - CRI> 90 - Beam° 75
Technical Drawing
Main specifications
Mounting
Ceiling surface
Light source type
LED
Light sources included
Yes
LED type
Top LED
Lamp category
LED
Number of lamps
1
Power (W)
27.6
System power (W)
28
Source flux (lm)
4138
Lumen Output (lm)
3186
Efficacy (lm/W)
114
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
87
Rg gamut index
103
LED Life / Failure Ratio
L80B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
75
Beam angle C90-270 (º)
75
Extreme cut off
Yes
UGRL
<19
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Forward voltage (V)
48
LED current (mA)
700
Power supply
Integrated
Dimmable
No
Physical
Colour
White
Orientation
Fixed
Net weight (kg)
0.97
IP internal
20
Notes
High Efficiency LEDs let you choose LEDs with a better "binning" so you can have an even higher lm/W ratio (contact us for special orders).
Before placing your order, please consult the product details also on the catalogue, in its technical data sheet and in the installation and assembly instructions to find all the information that may not be included in this site or that could be relevant to your specific project or installation.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
