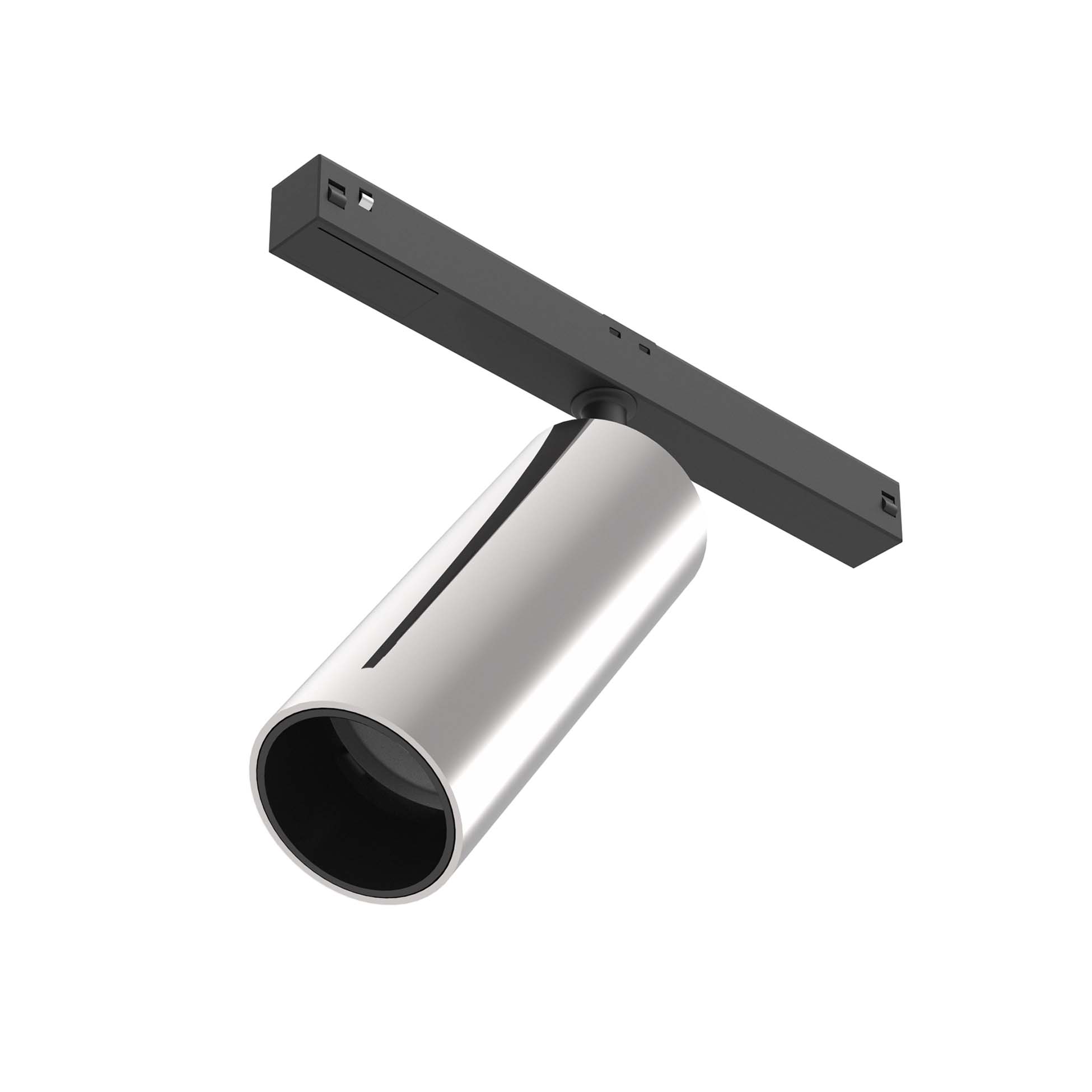

Spot 120

Designed by Vincent Van Duysen

Module d’éclairage LED d’accent.

Download Documentation

Product highlight

Rythme et séquences

Des structures essentielles à l’esthétique industrielle, créant une diffusion de la lumière dans l’espace.

Découvrez la Story


Luminaire

(93)

Type d’optique

Puissance de la source (W)

Flux du système (lm)

CCT (K)

Certifications

Couleur

Code	Name	Puissance de la source (W)	Flux du système (lm)	CCT (K)	CRI >	Beam angle (º)	Dimming Type	Montage
03.8157.40BDA	Spot 120 Dali Version	-	601	-	-	40	Dimmable DALI 2	Rail
03.8157.40BCB	Spot 120 Casambi integrated	-	601	-	-	40	Dimmable CASAMBI	Rail
03.8157.40B1V	Spot 120 Dimmable 1-10V	-	601	-	-	40	Dimmable 1-10 V	Rail
03.8157.40B	Spot 120 On Board Dimmer	-	601	-	-	40	Dimmer intégré	Rail
03.8157.14BDA	Spot 120 Dali Version	-	601	-	-	40	Dimmable DALI 2	Rail
03.8157.14BCB	Spot 120 Casambi integrated	-	601	-	-	40	Dimmable CASAMBI	Rail
03.8157.14B1V	Spot 120 Dimmable 1-10V	-	601	-	-	40	Dimmable 1-10 V	Rail
03.8157.14B	Spot 120 On Board Dimmer	-	601	-	-	40	Dimmer intégré	Rail
03.8157.05BDA	Spot 120 Dali Version	-	601	-	-	40	Dimmable DALI 2	Rail
03.8157.05BCB	Spot 120 Casambi integrated	-	601	3000	90	40	Dimmable CASAMBI	Rail
03.8157.05B1V	Spot 120 Dimmable 1-10V	-	601	-	-	40	Dimmable 1-10 V	Rail
03.8157.05B	Spot 120 On Board Dimmer	-	601	-	-	40	Dimmer intégré	Rail
03.8156.40BDA	Spot 120 Dali Version	-	571	-	-	40	Dimmable DALI 2	Rail
03.8156.40BCB	Spot 120 Casambi integrated	-	571	-	-	40	Dimmable CASAMBI	Rail
03.8156.40B1V	Spot 120 Dimmable 1-10V	-	571	-	-	40	Dimmable 1-10 V	Rail
03.8156.40B	Spot 120 On Board Dimmer	-	571	-	-	40	Dimmer intégré	Rail
03.8156.14BDA	Spot 120 Dali Version	-	571	-	-	40	Dimmable DALI 2	Rail
03.8156.14BCB	Spot 120 Casambi integrated	-	571	-	-	40	Dimmable CASAMBI	Rail
03.8156.14B1V	Spot 120 Dimmable 1-10V	-	571	-	-	40	Dimmable 1-10 V	Rail
03.8156.14B	Spot 120 On Board Dimmer	-	571	-	-	40	Dimmer intégré	Rail
03.8156.05BDA	Spot 120 Dali Version	-	571	-	-	40	Dimmable DALI 2	Rail
03.8156.05BCB	Spot 120 Casambi integrated	-	571	2700	90	40	Dimmable CASAMBI	Rail
03.8156.05B1V	Spot 120 Dimmable 1-10V	-	571	-	-	40	Dimmable 1-10 V	Rail
03.8156.05B	Spot 120 On Board Dimmer	-	571	-	-	40	Dimmer intégré	Rail
03.8156.05A	Spot 120 On Board Dimmer	12.5	599	2700	90	40	Dimmer intégré	Rail
03.8155.40BDA	Spot 120 Dali Version	-	625	-	-	17	Dimmable DALI 2	Rail
03.8155.40BCB	Spot 120 Casambi integrated	-	625	-	-	17	Dimmable CASAMBI	Rail
03.8155.40B1V	Spot 120 Dimmable 1-10V	-	625	-	-	17	Dimmable 1-10 V	Rail
03.8155.40B	Spot 120 On Board Dimmer	-	625	-	-	17	Dimmer intégré	Rail
03.8155.14BDA	Spot 120 Dali Version	-	625	-	-	17	Dimmable DALI 2	Rail
03.8155.14BCB	Spot 120 Casambi integrated	-	625	-	-	17	Dimmable CASAMBI	Rail
03.8155.14B1V	Spot 120 Dimmable 1-10V	-	625	-	-	17	Dimmable 1-10 V	Rail
03.8155.14B	Spot 120 On Board Dimmer	-	625	-	-	17	Dimmer intégré	Rail
03.8155.05BDA	Spot 120 Dali Version	-	625	-	-	17	Dimmable DALI 2	Rail
03.8155.05BCB	Spot 120 Casambi integrated	-	625	3000	90	17	Dimmable CASAMBI	Rail
03.8155.05B1V	Spot 120 Dimmable 1-10V	-	625	-	-	17	Dimmable 1-10 V	Rail
03.8155.05B	Spot 120 On Board Dimmer	-	625	-	-	17	Dimmer intégré	Rail
03.8154.40BDA	Spot 120 Dali Version	-	594	-	-	17	Dimmable DALI 2	Rail
03.8154.40BCB	Spot 120 Casambi integrated	-	594	-	-	17	Dimmable CASAMBI	Rail
03.8154.40B1V	Spot 120 Dimmable 1-10V	-	594	-	-	17	Dimmable 1-10 V	Rail
03.8154.40B	Spot 120 On Board Dimmer	-	594	-	-	17	Dimmer intégré	Rail
03.8154.14BDA	Spot 120 Dali Version	-	594	-	-	17	Dimmable DALI 2	Rail
03.8154.14BCB	Spot 120 Casambi integrated	-	594	-	-	17	Dimmable CASAMBI	Rail
03.8154.14B1V	Spot 120 Dimmable 1-10V	-	594	-	-	17	Dimmable 1-10 V	Rail
03.8154.14B	Spot 120 On Board Dimmer	-	594	-	-	17	Dimmer intégré	Rail
03.8154.05BDA	Spot 120 Dali Version	-	594	-	-	17	Dimmable DALI 2	Rail
03.8154.05BCB	Spot 120 Casambi integrated	-	594	2700	90	17	Dimmable CASAMBI	Rail
03.8154.05B1V	Spot 120 Dimmable 1-10V	-	594	-	-	17	Dimmable 1-10 V	Rail
03.8154.05B	Spot 120 On Board Dimmer	-	594	-	-	17	Dimmer intégré	Rail
03.8055.40ADA	Spot 120 Dali Version	12	505	3000	90	17	Dimmable DALI 2	Rail
03.8055.40ACB	Spot 120 Casambi integrated	12	505	3000	90	17	Dimmable CASAMBI	Rail
03.8055.40A1V	Spot 120 Dimmable 1-10V	12	505	3000	90	17	Dimmable 1-10 V	Rail
03.8055.40A	Spot 120 On Board Dimmer	12	505	3000	90	17	Dimmer intégré	Rail
03.8055.14ADA	Spot 120 Dali Version	12	505	3000	90	17	Dimmable DALI 2	Rail
03.8055.14ACB	Spot 120 Casambi integrated	12	505	3000	90	17	Dimmable CASAMBI	Rail
03.8055.14A1V	Spot 120 Dimmable 1-10V	12	505	3000	90	17	Dimmable 1-10 V	Rail
03.8055.14A	Spot 120 On Board Dimmer	12	505	3000	90	17	Dimmer intégré	Rail
03.8055.05BDA	Spot 120 Dali Version	12	505	3000	90	17	Dimmable DALI 2	Rail
03.8055.05B1V	Spot 120 Dimmable 1-10V	12	505	3000	90	17	Dimmable 1-10 V	Rail
03.8055.05B	Spot 120 On Board Dimmer	12	505	3000	90	17	Dimmer intégré	Rail
03.8054.40ADA	Spot 120 Dali Version	12	487	2700	90	17	Dimmable DALI 2	Rail
03.8054.40ACB	Spot 120 Casambi integrated	12	487	2700	90	17	Dimmable CASAMBI	Rail
03.8054.40A1V	Spot 120 Dimmable 1-10V	12	487	2700	90	17	Dimmable 1-10 V	Rail
03.8054.40A	Spot 120 On Board Dimmer	12	487	2700	90	17	Dimmer intégré	Rail
03.8054.14ADA	Spot 120 Dali Version	12	487	2700	90	17	Dimmable DALI 2	Rail
03.8054.14ACB	Spot 120 Casambi integrated	12	487	2700	90	17	Dimmable CASAMBI	Rail
03.8054.14A1V	Spot 120 Dimmable 1-10V	12	487	2700	90	17	Dimmable 1-10 V	Rail
03.8054.14A	Spot 120 On Board Dimmer	12	487	2700	90	17	Dimmer intégré	Rail
03.8054.05BDA	Spot 120 Dali Version	12	487	2700	90	17	Dimmable DALI 2	Rail
03.8054.05B1V	Spot 120 Dimmable 1-10V	12	487	2700	90	17	Dimmable 1-10 V	Rail
03.8054.05B	Spot 120 On Board Dimmer	12	487	2700	90	17	Dimmer intégré	Rail
03.8053.40ADA	Spot 120 Dali Version	12	558	3000	90	11	Dimmable DALI 2	Rail
03.8053.40ACB	Spot 120 Casambi integrated	12	558	3000	90	11	Dimmable CASAMBI	Rail
03.8053.40A1V	Spot 120 Dimmable 1-10V	12	558	3000	90	11	Dimmable 1-10 V	Rail
03.8053.40A	Spot 120 On Board Dimmer	12	558	3000	90	11	Dimmer intégré	Rail
03.8053.14ADA	Spot 120 Dali Version	12	558	3000	90	11	Dimmable DALI 2	Rail
03.8053.14ACB	Spot 120 Casambi integrated	12	558	3000	90	11	Dimmable CASAMBI	Rail
03.8053.14A1V	Spot 120 Dimmable 1-10V	12	558	3000	90	11	Dimmable 1-10 V	Rail
03.8053.14A	Spot 120 On Board Dimmer	12	558	3000	90	11	Dimmer intégré	Rail
03.8053.05BDA	Spot 120 Dali Version	12	558	3000	90	11	Dimmable DALI 2	Rail
03.8053.05B1V	Spot 120 Dimmable 1-10V	12	558	3000	90	11	Dimmable 1-10 V	Rail
03.8053.05B	Spot 120 On Board Dimmer	12	558	3000	90	11	Dimmer intégré	Rail
03.8052.40ADA	Spot 120 Dali Version	12	539	2700	90	11	Dimmable DALI 2	Rail
03.8052.40ACB	Spot 120 Casambi integrated	12	539	2700	90	11	Dimmable CASAMBI	Rail
03.8052.40A1V	Spot 120 Dimmable 1-10V	12	539	2700	90	11	Dimmable 1-10 V	Rail
03.8052.40A	Spot 120 On Board Dimmer	12	539	2700	90	11	Dimmer intégré	Rail
03.8052.14ADA	Spot 120 Dali Version	12	539	2700	90	11	Dimmable DALI 2	Rail
03.8052.14ACB	Spot 120 Casambi integrated	12	539	2700	90	11	Dimmable CASAMBI	Rail
03.8052.14A1V	Spot 120 Dimmable 1-10V	12	539	2700	90	11	Dimmable 1-10 V	Rail
03.8052.14A	Spot 120 On Board Dimmer	12	539	2700	90	11	Dimmer intégré	Rail
03.8052.05BDA	Spot 120 Dali Version	12	539	2700	90	11	Dimmable DALI 2	Rail
03.8052.05B1V	Spot 120 Dimmable 1-10V	12	539	2700	90	11	Dimmable 1-10 V	Rail
03.8052.05B	Spot 120 On Board Dimmer	12	539	2700	90	11	Dimmer intégré	Rail
