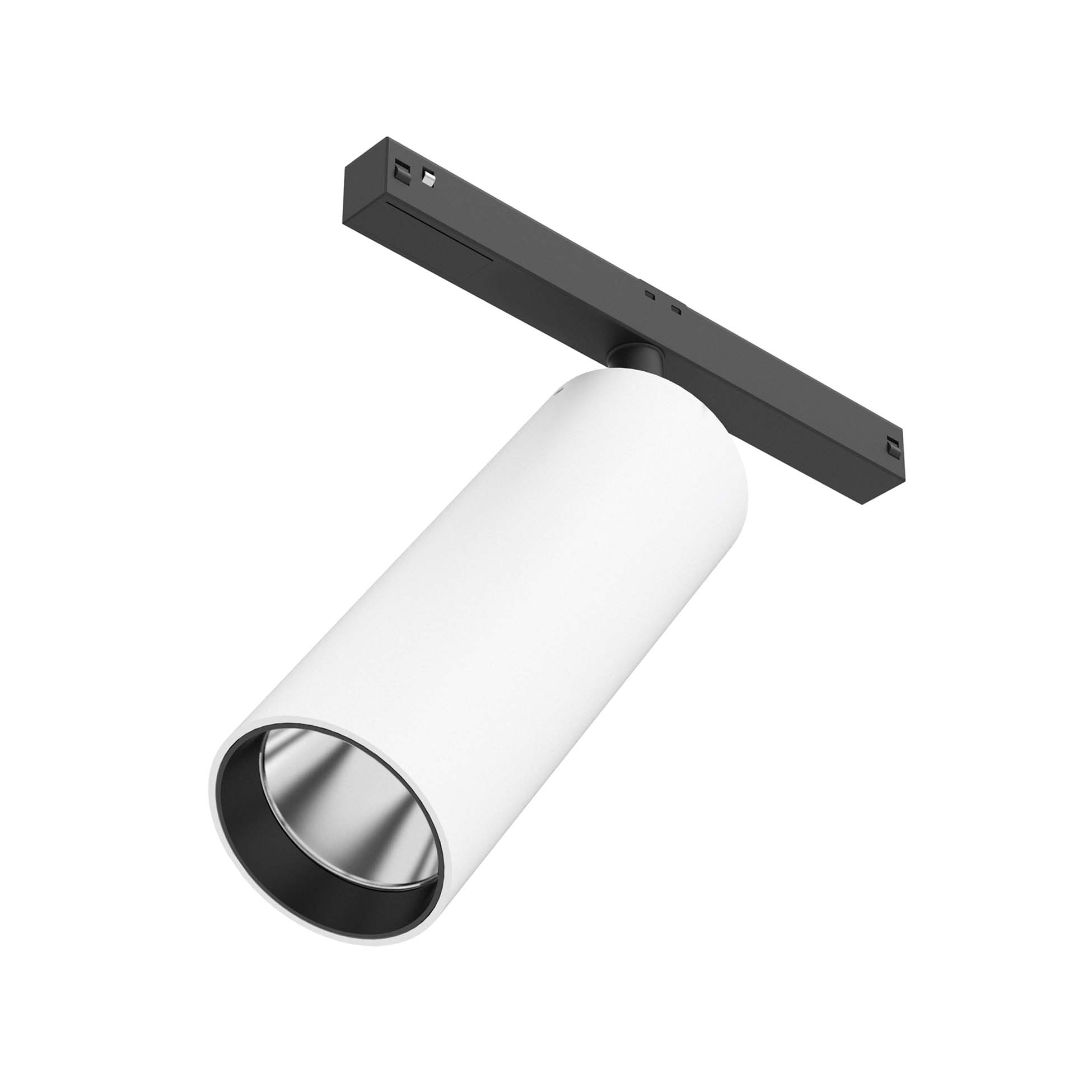

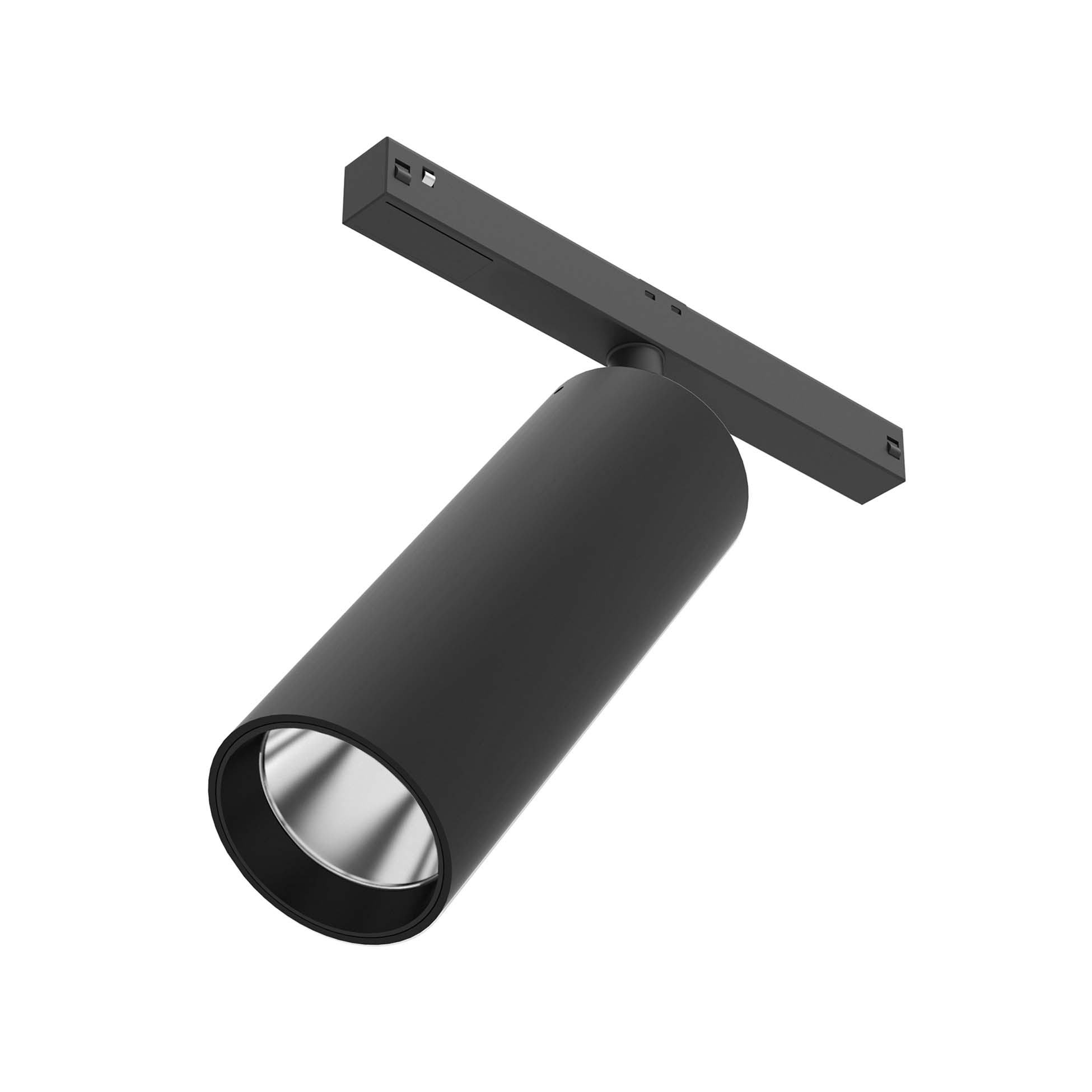

Spot 150

Designed by Vincent Van Duysen

Module d’éclairage LED d’accent.

Download Documentation

Product highlight

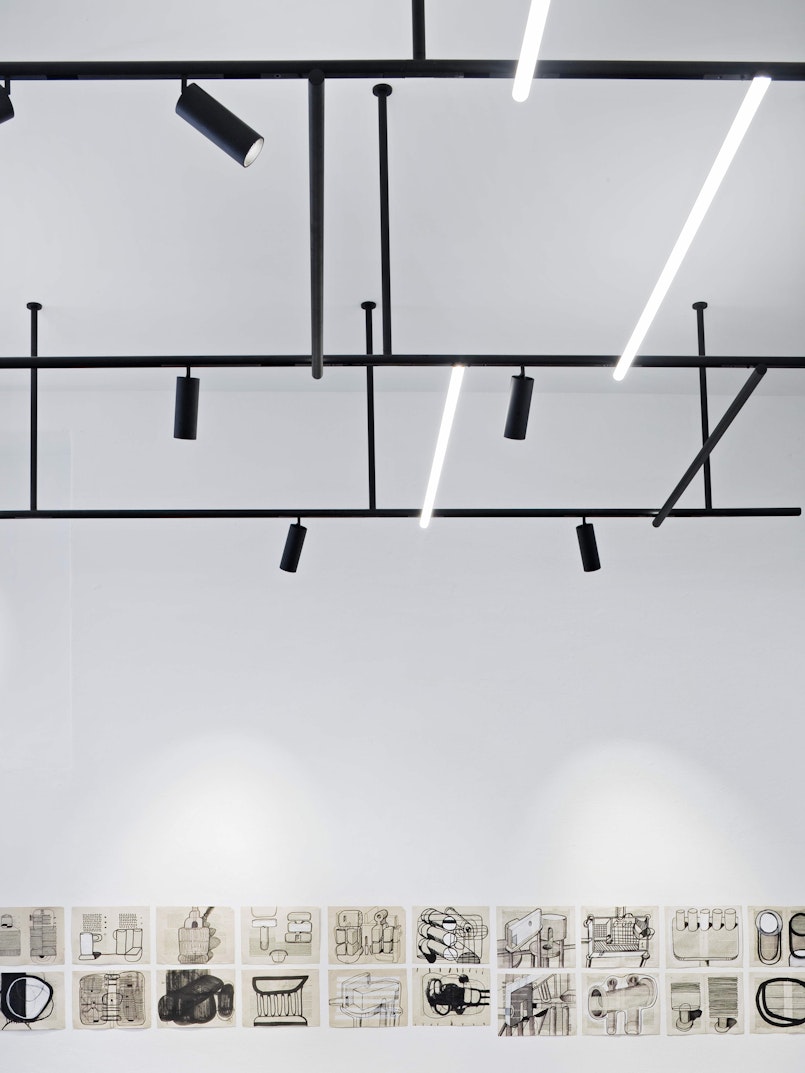

Rythme et séquences

Des structures essentielles à l’esthétique industrielle, créant une diffusion de la lumière dans l’espace.

Découvrez la Story


Luminaire

(72)

Type d’optique

Flux du système (lm)

CCT (K)

Certifications

Couleur

Code	Name	Puissance de la source (W)	Flux du système (lm)	CCT (K)	CRI >	Beam angle (º)	Dimming Type	Montage
03.8077.40ADA	Spot 150 Dali Version	22.5	1672	3000	90	36	Dimmable DALI 2	Rail
03.8077.40ACB	Spot 150 Casambi integrated	22.5	1672	3000	90	36	Dimmable CASAMBI	Rail
03.8077.40A1V	Spot 150 Dimmable 1-10V	22.5	1672	3000	90	36	Dimmable 1-10 V	Rail
03.8077.40A	Spot 150 On Board Dimmer	22.5	1672	3000	90	36	Dimmer intégré	Rail
03.8077.14ADA	Spot 150 Dali Version	22.5	1672	3000	90	36	Dimmable DALI 2	Rail
03.8077.14ACB	Spot 150 Casambi integrated	22.5	1672	3000	90	36	Dimmable CASAMBI	Rail
03.8077.14A1V	Spot 150 Dimmable 1-10V	22.5	1672	3000	90	36	Dimmable 1-10 V	Rail
03.8077.14A	Spot 150 On Board Dimmer	22.5	1672	3000	90	36	Dimmer intégré	Rail
03.8077.05BDA	Spot 150 Dali Version	22.5	1672	3000	90	36	Dimmable DALI 2	Rail
03.8077.05B1V	Spot 150 Dimmable 1-10V	22.5	1672	3000	90	36	Dimmable 1-10 V	Rail
03.8077.05B	Spot 150 On Board Dimmer	22.5	1672	3000	90	36	Dimmer intégré	Rail
03.8077.05ACB	Spot 150 Casambi integrated	22.5	1672	3000	90	36	Dimmable CASAMBI	Rail
03.8076.40ADA	Spot 150 Dali Version	22.5	1569	2700	90	36	Dimmable DALI 2	Rail
03.8076.40ACB	Spot 150 Casambi integrated	22.5	1569	2700	90	36	Dimmable CASAMBI	Rail
03.8076.40A1V	Spot 150 Dimmable 1-10V	22.5	1569	2700	90	36	Dimmable 1-10 V	Rail
03.8076.40A	Spot 150 On Board Dimmer	22.5	1569	2700	90	36	Dimmer intégré	Rail
03.8076.14ADA	Spot 150 Dali Version	22.5	1569	2700	90	36	Dimmable DALI 2	Rail
03.8076.14ACB	Spot 150 Casambi integrated	22.5	1569	2700	90	36	Dimmable CASAMBI	Rail
03.8076.14A1V	Spot 150 Dimmable 1-10V	22.5	1569	2700	90	36	Dimmable 1-10 V	Rail
03.8076.14A	Spot 150 On Board Dimmer	22.5	1569	2700	90	36	Dimmer intégré	Rail
03.8076.05BDA	Spot 150 Dali Version	22.5	1569	2700	90	36	Dimmable DALI 2	Rail
03.8076.05B1V	Spot 150 Dimmable 1-10V	22.5	1569	2700	90	36	Dimmable 1-10 V	Rail
03.8076.05B	Spot 150 On Board Dimmer	22.5	1569	2700	90	36	Dimmer intégré	Rail
03.8076.05ACB	Spot 150 Casambi integrated	22.5	1569	2700	90	36	Dimmable CASAMBI	Rail
03.8075.40ADA	Spot 150 Dali Version	22.5	1667	3000	90	27	Dimmable DALI 2	Rail
03.8075.40ACB	Spot 150 Casambi integrated	22.5	1667	3000	90	27	Dimmable CASAMBI	Rail
03.8075.40A1V	Spot 150 Dimmable 1-10V	22.5	1667	3000	90	27	Dimmable 1-10 V	Rail
03.8075.40A	Spot 150 On Board Dimmer	22.5	1667	3000	90	27	Dimmer intégré	Rail
03.8075.14ADA	Spot 150 Dali Version	22.5	1667	3000	90	27	Dimmable DALI 2	Rail
03.8075.14ACB	Spot 150 Casambi integrated	22.5	1667	3000	90	27	Dimmable CASAMBI	Rail
03.8075.14A1V	Spot 150 Dimmable 1-10V	22.5	1667	3000	90	27	Dimmable 1-10 V	Rail
03.8075.14A	Spot 150 On Board Dimmer	22.5	1667	3000	90	27	Dimmer intégré	Rail
03.8075.05BDA	Spot 150 Dali Version	22.5	1667	3000	90	27	Dimmable DALI 2	Rail
03.8075.05B1V	Spot 150 Dimmable 1-10V	22.5	1667	3000	90	27	Dimmable 1-10 V	Rail
03.8075.05B	Spot 150 On Board Dimmer	22.5	1667	3000	90	27	Dimmer intégré	Rail
03.8075.05ACB	Spot 150 Casambi integrated	22.5	1667	3000	90	27	Dimmable CASAMBI	Rail
03.8074.40ADA	Spot 150 Dali Version	22.5	1564	2700	90	27	Dimmable DALI 2	Rail
03.8074.40ACB	Spot 150 Casambi integrated	22.5	1564	2700	90	27	Dimmable CASAMBI	Rail
03.8074.40A1V	Spot 150 Dimmable 1-10V	22.5	1564	2700	90	27	Dimmable 1-10 V	Rail
03.8074.40A	Spot 150 On Board Dimmer	22.5	1564	2700	90	27	Dimmer intégré	Rail
03.8074.14ADA	Spot 150 Dali Version	22.5	1564	2700	90	27	Dimmable DALI 2	Rail
03.8074.14ACB	Spot 150 Casambi integrated	22.5	1564	2700	90	27	Dimmable CASAMBI	Rail
03.8074.14A1V	Spot 150 Dimmable 1-10V	22.5	1564	2700	90	27	Dimmable 1-10 V	Rail
03.8074.14A	Spot 150 On Board Dimmer	22.5	1564	2700	90	27	Dimmer intégré	Rail
03.8074.05BDA	Spot 150 Dali Version	22.5	1564	2700	90	27	Dimmable DALI 2	Rail
03.8074.05B1V	Spot 150 Dimmable 1-10V	22.5	1564	2700	90	27	Dimmable 1-10 V	Rail
03.8074.05B	Spot 150 On Board Dimmer	22.5	1564	2700	90	27	Dimmer intégré	Rail
03.8074.05ACB	Spot 150 Casambi integrated	22.5	1564	2700	90	27	Dimmable CASAMBI	Rail
03.8073.40ADA	Spot 150 Dali Version	22.5	1937	3000	90	21	Dimmable DALI 2	Rail
03.8073.40ACB	Spot 150 Casambi integrated	22.5	1937	3000	90	21	Dimmable CASAMBI	Rail
03.8073.40A1V	Spot 150 Dimmable 1-10V	22.5	1937	3000	90	21	Dimmable 1-10 V	Rail
03.8073.40A	Spot 150 On Board Dimmer	22.5	1937	3000	90	21	Dimmer intégré	Rail
03.8073.14ADA	Spot 150 Dali Version	22.5	1937	3000	90	21	Dimmable DALI 2	Rail
03.8073.14ACB	Spot 150 Casambi integrated	22.5	1937	3000	90	21	Dimmable CASAMBI	Rail
03.8073.14A1V	Spot 150 Dimmable 1-10V	22.5	1937	3000	90	21	Dimmable 1-10 V	Rail
03.8073.14A	Spot 150 On Board Dimmer	22.5	1937	3000	90	21	Dimmer intégré	Rail
03.8073.05BDA	Spot 150 Dali Version	22.5	1937	3000	90	21	Dimmable DALI 2	Rail
03.8073.05B1V	Spot 150 Dimmable 1-10V	22.5	1937	3000	90	21	Dimmable 1-10 V	Rail
03.8073.05B	Spot 150 On Board Dimmer	22.5	1937	3000	90	21	Dimmer intégré	Rail
03.8073.05ACB	Spot 150 Casambi integrated	22.5	1937	3000	90	21	Dimmable CASAMBI	Rail
03.8072.40ADA	Spot 150 Dali Version	22.5	1818	2700	90	21	Dimmable DALI 2	Rail
03.8072.40ACB	Spot 150 Casambi integrated	22.5	1818	2700	90	21	Dimmable CASAMBI	Rail
03.8072.40A1V	Spot 150 Dimmable 1-10V	22.5	1818	2700	90	21	Dimmable 1-10 V	Rail
03.8072.40A	Spot 150 On Board Dimmer	22.5	1818	2700	90	21	Dimmer intégré	Rail
03.8072.14ADA	Spot 150 Dali Version	22.5	1818	2700	90	21	Dimmable DALI 2	Rail
03.8072.14ACB	Spot 150 Casambi integrated	22.5	1818	2700	90	21	Dimmable CASAMBI	Rail
03.8072.14A1V	Spot 150 Dimmable 1-10V	22.5	1818	2700	90	21	Dimmable 1-10 V	Rail
03.8072.14A	Spot 150 On Board Dimmer	22.5	1818	2700	90	21	Dimmer intégré	Rail
03.8072.05BDA	Spot 150 Dali Version	22.5	1818	2700	90	21	Dimmable DALI 2	Rail
03.8072.05B1V	Spot 150 Dimmable 1-10V	22.5	1818	2700	90	21	Dimmable 1-10 V	Rail
03.8072.05B	Spot 150 On Board Dimmer	22.5	1818	2700	90	21	Dimmer intégré	Rail
03.8072.05ACB	Spot 150 Casambi integrated	22.5	1818	2700	90	21	Dimmable CASAMBI	Rail
