Easy Kap 30 Non IC

Designed by FLOS Architectural

Minimal recessed downlights with main voltage source, Easy Kap Non IC is available in different colors and finishes.

Download Documentation

Product highlight

Functional minimalism

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Discover the Story


Luminaires

(96)

Orientation

Optical type

System flux (lm)

CCT (K)

CRI>

Certifications

Color


Easy Kap 30 Fixed. Set of 4 Spots

24 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7628.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	174	3000	95	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7628.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	185	3000	95	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7628.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	163	3000	95	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7627.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	198	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7627.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	203	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7627.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	192	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7626.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	208	3000	95	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7626.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	215	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7626.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	202	3000	95	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7625.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	211	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7625.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	218	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7625.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	200	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7623.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	169	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7623.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	179	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7623.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	158	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7622.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	193	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7622.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	197	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7622.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	186	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7621.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	202	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7621.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	209	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7621.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	196	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7620.GLA9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	205	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7620.B1A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7620.74A9S	Easy Kap Ø30 Fixed Set of 4 spots Non-IC	2.5	194	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

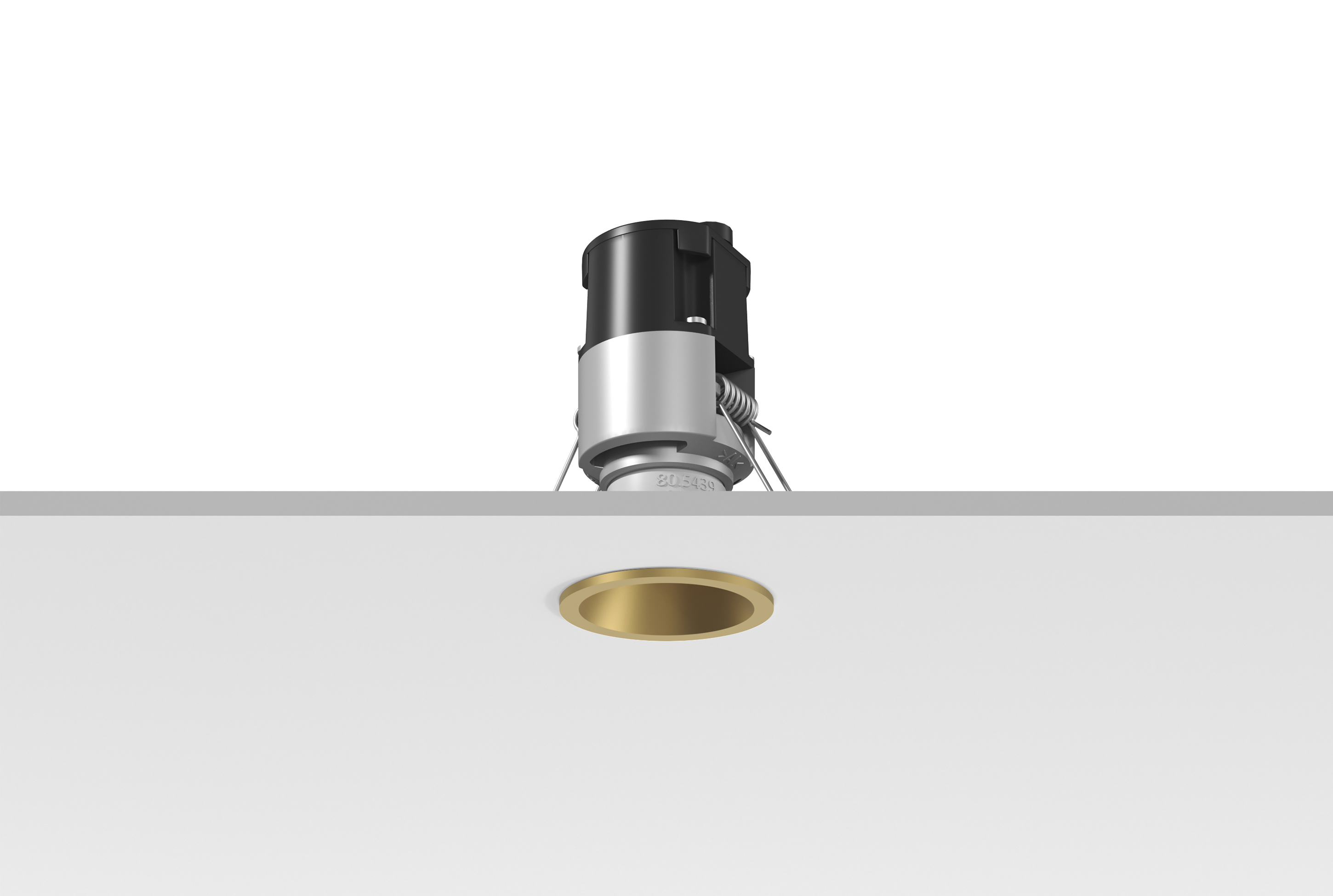

Easy Kap 30 Fixed. Set of 1 Spot

24 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7608.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	174	3000	95	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7608.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	185	3000	95	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7608.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	163	3000	95	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7607.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	198	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7607.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	203	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7607.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	192	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7606.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	208	3000	95	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7606.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	215	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7606.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	202	3000	95	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7605.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	211	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7605.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	218	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7605.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	200	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7603.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	169	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7603.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	179	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7603.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	158	2700	90	53	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7602.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	193	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7602.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	197	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7602.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	186	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7601.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	202	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7601.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	209	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7601.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	196	2700	90	27	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7600.GLA9S	Easy Kap Ø30 Fixed Non-IC	2.5	205	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7600.B1A9S	Easy Kap Ø30 Fixed Non-IC	2.5	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7600.74A9S	Easy Kap Ø30 Fixed Non-IC	2.5	194	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

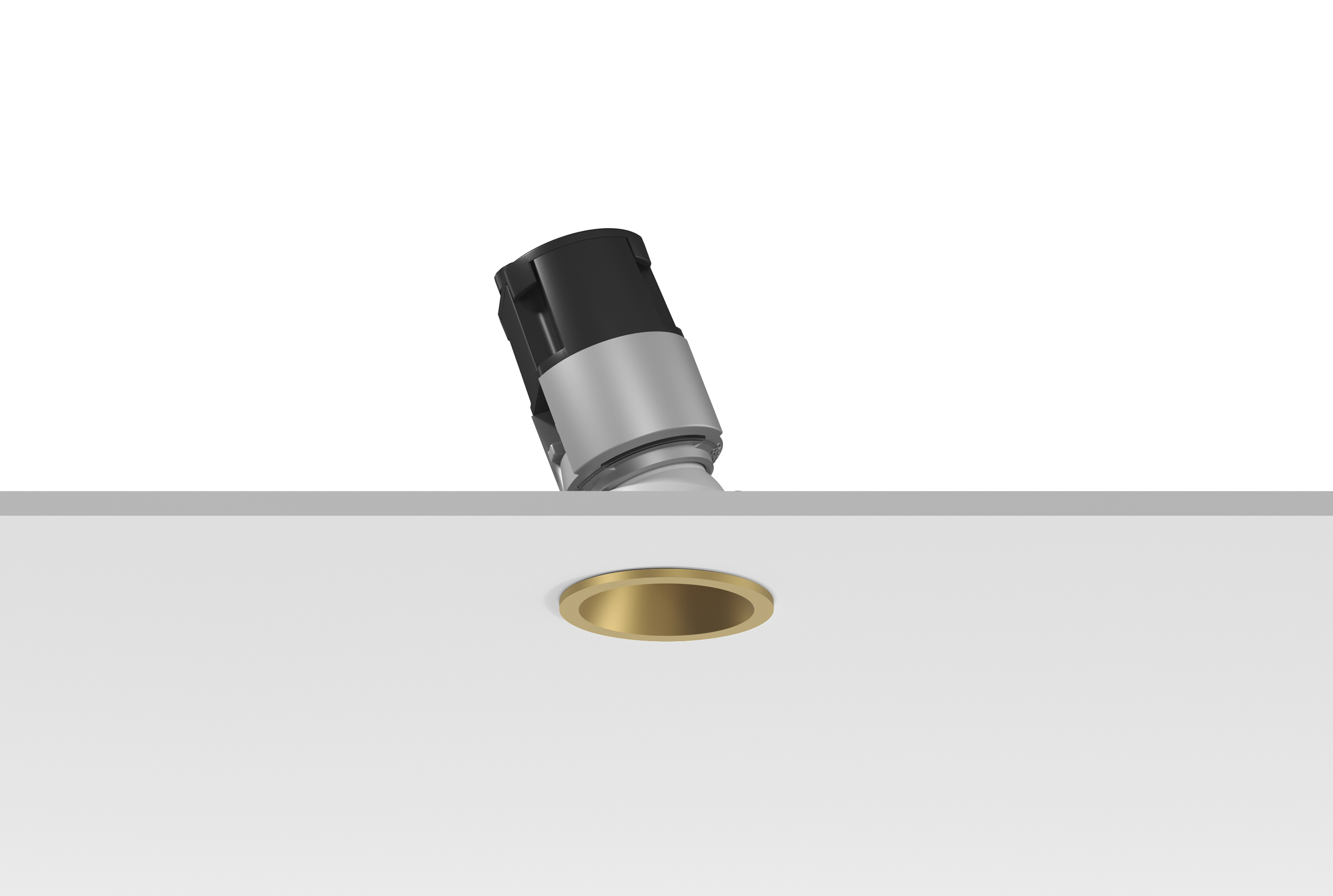

Easy Kap 30 Adjustable. Set of 4 Spot

24 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7638.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	177	3000	95	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7638.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	187	3000	95	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7638.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	164	3000	95	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7637.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	191	3000	95	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7637.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	203	3000	95	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7637.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	190	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7636.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	205	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7636.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	213	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7636.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	203	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7635.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	207	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7635.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	218	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7635.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	203	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7633.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	172	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7633.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	182	2700	90	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7633.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	159	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7632.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	185	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7632.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	197	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7632.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	184	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7631.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	199	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7631.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	207	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7631.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	197	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7630.GLA9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	201	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7630.B1A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7630.74A9S	Easy Kap Ø30 Adjustable Set of 4 spots Non-IC	2.5	197	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed

Easy Kap 30 Adjustable. Set of 1 Spot

24 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7618.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	177	3000	95	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7618.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	187	3000	95	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7618.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	164	3000	95	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7617.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	191	3000	95	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7617.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	203	3000	95	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7617.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	190	3000	95	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7616.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	205	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7616.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	213	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7616.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	203	3000	95	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7615.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	207	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7615.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	218	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7615.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	203	3000	95	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7613.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	172	2700	90	50	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7613.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	182	2700	90	51	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7613.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	159	2700	90	52	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7612.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	185	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7612.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	197	2700	90	35	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7612.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	184	2700	90	34	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7611.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	199	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7611.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	207	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7611.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	197	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7610.GLA9S	Easy Kap Ø30 Adjustable Non-IC	2.5	201	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7610.B1A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	212	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
05.7610.74A9S	Easy Kap Ø30 Adjustable Non-IC	2.5	197	2700	90	19	Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming	Ceiling recessed
