Easy Kap 80 IC Rated JA8

Designed by FLOS Architectural

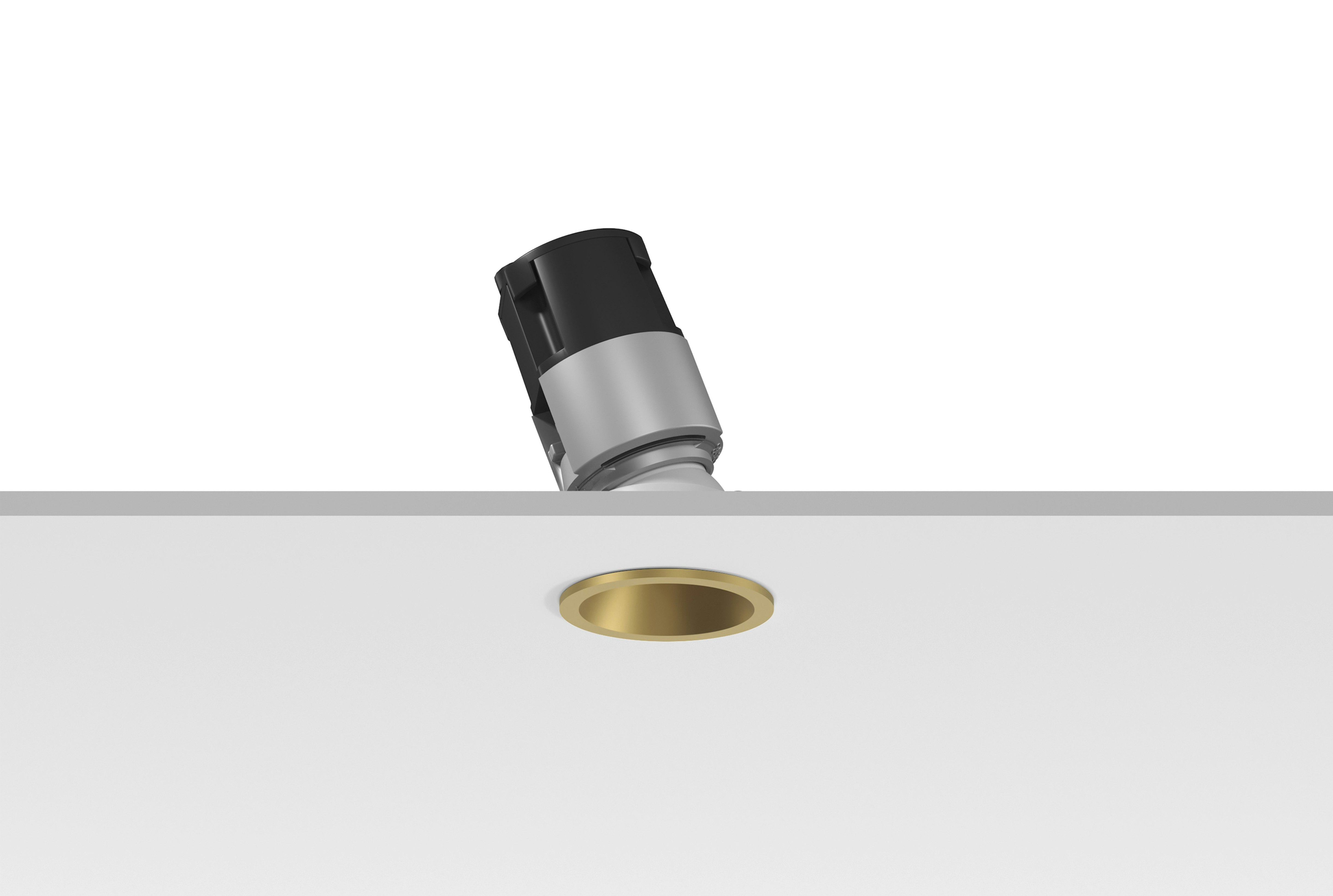

Easy Kap 80 Airtight Housing for New construction JA8 CA Title 24 Listed, is aminimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Download Documentation

Product highlight

Functional minimalism

Minimal recessed downlights with main voltage source, Easy Kap is available in different colors and finishes.

Discover the Story


Luminaires

(84)

Shape

Orientation

Optical type

System flux (lm)

CCT (K)

Certifications

Color


Easy Kap 80 Wall-Washer

12 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.4199.GL.98	Easy Kap 80 Square Wall-Washer - Airtight IC Rated T24 JA8	9.2	711	2700	90	28	-	Ceiling recessed
03.4199.B1.98	Easy Kap 80 Square Wall-Washer - Airtight IC Rated T24 JA8	9.2	625	2700	90	27	-	Ceiling recessed
03.4199.74.98	Easy Kap 80 Square Wall-Washer - Airtight IC Rated T24 JA8	9.2	571	2700	90	26	-	Ceiling recessed
03.4198.GL.98	Easy Kap 80 Square Wall-Washer - Airtight IC Rated T24 JA8	9.2	739	3000	90	28	-	Ceiling recessed
03.4198.B1.98	Easy Kap 80 Square Wall-Washer - Airtight IC Rated T24 JA8	9.2	650	3000	90	27	-	Ceiling recessed
03.4198.74.98	Easy Kap 80 Square Wall-Washer - Airtight IC Rated T24 JA8	9.2	594	3000	90	26	-	Ceiling recessed
03.4197.GL.98	Easy Kap Ø 80 Wall-Washer - Airtight IC Rated T24 JA8	9.2	567	2700	90	30	-	Ceiling recessed
03.4197.B1.98	Easy Kap Ø 80 Wall-Washer - Airtight IC Rated T24 JA8	9.2	598	2700	90	28	-	Ceiling recessed
03.4197.74.98	Easy Kap Ø 80 Wall-Washer - Airtight IC Rated T24 JA8	9.2	545	2700	90	26	-	Ceiling recessed
03.4196.GL.98	Easy Kap Ø 80 Wall-Washer - Airtight IC Rated T24 JA8	9.2	590	3000	90	30	-	Ceiling recessed
03.4196.B1.98	Easy Kap Ø 80 Wall-Washer - Airtight IC Rated T24 JA8	9.2	622	3000	90	28	-	Ceiling recessed
03.4196.74.98	Easy Kap Ø 80 Wall-Washer - Airtight IC Rated T24 JA8	9.2	567	3000	90	26	-	Ceiling recessed


Easy Kap 80 Fixed

36 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.4298.GL.98	Easy Kap Ø 80 Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	660	2700	90	45	-	Ceiling recessed
03.4298.B1.98	Easy Kap Ø 80 Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	688	2700	90	50	-	Ceiling recessed
03.4298.74.98	Easy Kap Ø 80 Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	599	2700	90	50	-	Ceiling recessed
03.4297.GL.98	Easy Kap Ø 80 Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	687	3000	90	45	-	Ceiling recessed
03.4297.B1.98	Easy Kap Ø 80 Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	715	3000	90	50	-	Ceiling recessed
03.4297.74.98	Easy Kap Ø 80 Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	623	3000	90	50	-	Ceiling recessed
03.4288.GL.98	Easy Kap Ø 80 Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	684	2700	90	19	-	Ceiling recessed
03.4288.B1.98	Easy Kap Ø 80 Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	710	2700	90	19	-	Ceiling recessed
03.4288.74.98	Easy Kap Ø 80 Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	628	2700	90	19	-	Ceiling recessed
03.4287.GL.98	Easy Kap Ø 80 Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	712	3000	90	19	-	Ceiling recessed
03.4287.B1.98	Easy Kap Ø 80 Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	739	3000	90	19	-	Ceiling recessed
03.4287.74.98	Easy Kap Ø 80 Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	654	3000	90	19	-	Ceiling recessed
03.4195.GL.98	Easy Kap 80 Square Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	600	2700	90	25	-	Ceiling recessed
03.4195.B1.98	Easy Kap 80 Square Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	615	2700	90	25	-	Ceiling recessed
03.4195.74.98	Easy Kap 80 Square Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	559	2700	90	25	-	Ceiling recessed
03.4194.GL.98	Easy Kap 80 Square Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	624	3000	90	25	-	Ceiling recessed
03.4194.B1.98	Easy Kap 80 Square Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	640	3000	90	25	-	Ceiling recessed
03.4194.74.98	Easy Kap 80 Square Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	582	3000	90	25	-	Ceiling recessed
03.4193.GL.98	Easy Kap Ø 80 Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	594	2700	90	26	-	Ceiling recessed
03.4193.B1.98	Easy Kap Ø 80 Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	606	2700	90	26	-	Ceiling recessed
03.4193.74.98	Easy Kap Ø 80 Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	541	2700	90	25	-	Ceiling recessed
03.4192.GL.98	Easy Kap Ø 80 Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	618	3000	90	26	-	Ceiling recessed
03.4192.B1.98	Easy Kap Ø 80 Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	630	3000	90	26	-	Ceiling recessed
03.4192.74.98	Easy Kap Ø 80 Fixed Optic Medium - Airtight IC Rated T24 JA8	9.2	563	3000	90	25	-	Ceiling recessed
03.4179.GL.98	Easy Kap 80 Square Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	704	2700	90	53	-	Ceiling recessed
03.4179.B1.98	Easy Kap 80 Square Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	723	2700	90	55	-	Ceiling recessed
03.4179.74.98	Easy Kap 80 Square Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	640	2700	90	55	-	Ceiling recessed
03.4178.GL.98	Easy Kap 80 Square Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	732	3000	90	53	-	Ceiling recessed
03.4178.B1.98	Easy Kap 80 Square Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	752	3000	90	55	-	Ceiling recessed
03.4178.74.98	Easy Kap 80 Square Fixed Optic Flood - Airtight IC Rated T24 JA8	9.2	666	3000	90	55	-	Ceiling recessed
03.4177.GL.98	Easy Kap 80 Square Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	732	2700	90	18	-	Ceiling recessed
03.4177.B1.98	Easy Kap 80 Square Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	741	2700	90	18	-	Ceiling recessed
03.4177.74.98	Easy Kap 80 Square Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	669	2700	90	17	-	Ceiling recessed
03.4176.GL.98	Easy Kap 80 Square Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	762	3000	90	18	-	Ceiling recessed
03.4176.B1.98	Easy Kap 80 Square Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	771	3000	90	18	-	Ceiling recessed
03.4176.74.98	Easy Kap 80 Square Fixed Optic Spot - Airtight IC Rated T24 JA8	9.2	696	3000	90	17	-	Ceiling recessed


Easy Kap 80 Adjustable

36 items

Collapse

Code	Name	Power (W)	System flux (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.4296.GL.98	Easy Kap 80 Square Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	698	2700	90	50	-	Ceiling recessed
03.4296.B1.98	Easy Kap 80 Square Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	722	2700	90	53	-	Ceiling recessed
03.4296.74.98	Easy Kap 80 Square Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	642	2700	90	55	-	Ceiling recessed
03.4295.GL.98	Easy Kap 80 Square Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	726	3000	90	50	-	Ceiling recessed
03.4295.B1.98	Easy Kap 80 Square Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	751	3000	90	53	-	Ceiling recessed
03.4295.74.98	Easy Kap 80 Square Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	668	3000	90	55	-	Ceiling recessed
03.4294.GL.98	Easy Kap 80 Square Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	722	2700	90	17	-	Ceiling recessed
03.4294.B1.98	Easy Kap 80 Square Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	738	2700	90	18	-	Ceiling recessed
03.4294.74.98	Easy Kap 80 Square Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	674	2700	90	18	-	Ceiling recessed
03.4293.GL.98	Easy Kap 80 Square Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	642	3000	90	17	-	Ceiling recessed
03.4293.B1.98	Easy Kap 80 Square Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	768	3000	90	18	-	Ceiling recessed
03.4293.74.98	Easy Kap 80 Square Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	702	3000	90	18	-	Ceiling recessed
03.4201.GL.98	Easy Kap 80 Square Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	609	2700	90	26	-	Ceiling recessed
03.4201.B1.98	Easy Kap 80 Square Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	630	2700	90	25	-	Ceiling recessed
03.4201.74.98	Easy Kap 80 Square Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	571	2700	90	27	-	Ceiling recessed
03.4200.GL.98	Easy Kap 80 Square Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	634	3000	90	26	-	Ceiling recessed
03.4200.B1.98	Easy Kap 80 Square Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	656	3000	90	25	-	Ceiling recessed
03.4200.74.98	Easy Kap 80 Square Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	594	3000	90	27	-	Ceiling recessed
03.4172.GL.98	Easy Kap Ø 80 Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	694	3000	90	45	-	Ceiling recessed
03.4172.B1.98	Easy Kap Ø 80 Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	716	3000	90	47	-	Ceiling recessed
03.4172.74.98	Easy Kap Ø 80 Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	622	3000	90	53	-	Ceiling recessed
03.4171.GL.98	Easy Kap Ø 80 Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	648	3000	90	26	-	Ceiling recessed
03.4171.B1.98	Easy Kap Ø 80 Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	691	3000	90	26	-	Ceiling recessed
03.4171.74.98	Easy Kap Ø 80 Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	585	3000	90	27	-	Ceiling recessed
03.4170.GL.98	Easy Kap Ø 80 Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	722	3000	90	18	-	Ceiling recessed
03.4170.B1.98	Easy Kap Ø 80 Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	732	3000	90	18	-	Ceiling recessed
03.4170.74.98	Easy Kap Ø 80 Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	656	3000	90	18	-	Ceiling recessed
03.4157.GL.98	Easy Kap Ø 80 Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	668	2700	90	45	-	Ceiling recessed
03.4157.B1.98	Easy Kap Ø 80 Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	688	2700	90	47	-	Ceiling recessed
03.4157.74.98	Easy Kap Ø 80 Adjustable Optic Flood - Airtight IC Rated T24 JA8	9.2	598	2700	90	53	-	Ceiling recessed
03.4155.GL.98	Easy Kap Ø 80 Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	623	2700	90	26	-	Ceiling recessed
03.4155.B1.98	Easy Kap Ø 80 Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	664	2700	90	26	-	Ceiling recessed
03.4155.74.98	Easy Kap Ø 80 Adjustable Optic Medium - Airtight IC Rated T24 JA8	9.2	562	2700	90	27	-	Ceiling recessed
03.4153.GL.98	Easy Kap Ø 80 Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	694	2700	90	18	-	Ceiling recessed
03.4153.B1.98	Easy Kap Ø 80 Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	704	2700	90	18	-	Ceiling recessed
03.4153.74.98	Easy Kap Ø 80 Adjustable Optic Spot - Airtight IC Rated T24 JA8	9.2	630	2700	90	18	-	Ceiling recessed
