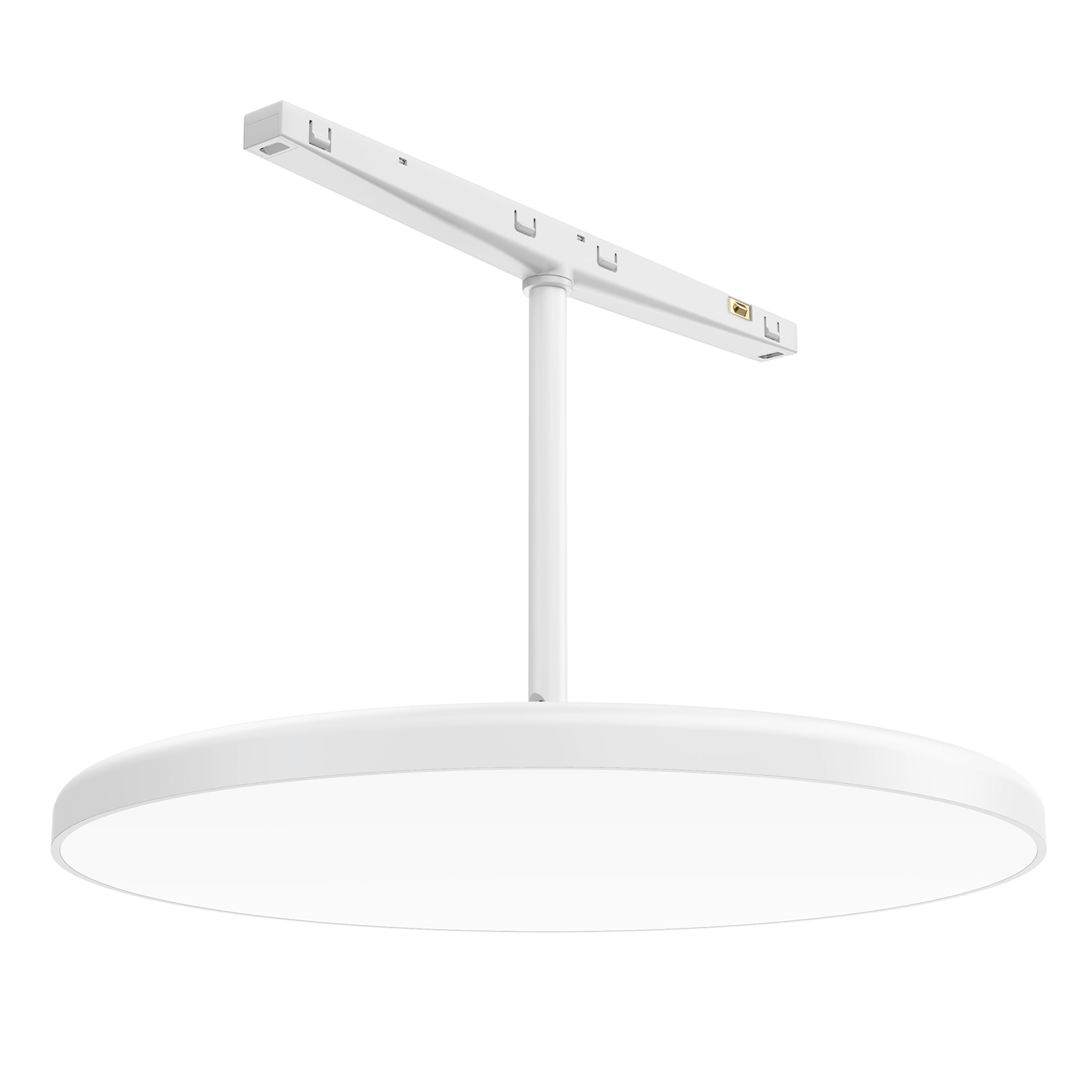

05.5161.40.DA WhiteAtom 200 Dali Dimmable
Designed by FLOS Architectural, 2023
LED general lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual control via DALI protocol and broadcast mode via 1-10V.
10.5W - 424lm - 3000K - CRI> 90 - Beam° 110
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Top LED
Number of lamps
1
Power (W)
10.5
Source flux (lm)
1080
System flux (lm)
424
Efficacy (lm/W)
41
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
650
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable DALI 2
Dimming range (%)
1-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
White
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
IP internal
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class G
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
