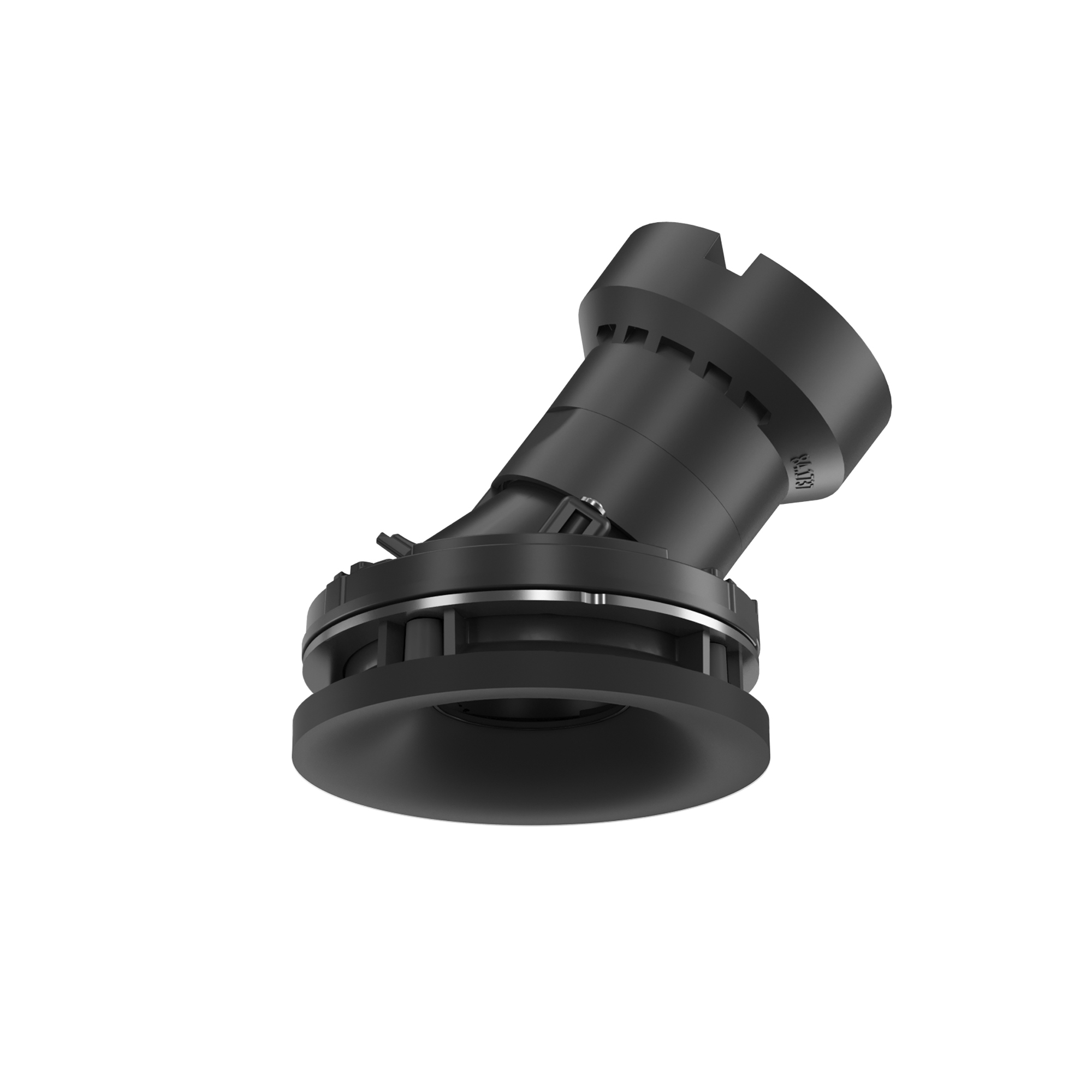

05.8034.14.QS BlackEclectic 70 Adjustable Soft - Non IC Quick Ship
Designed by FLOS Architectural, 2022
Eclectic Ø70. Adjustable Downlight (35º tilt, 360º rotation). “Soft” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts.
LED - LED array - 7.5W - 557lm - 3000K - CRI> 90 - Beam° 23
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
7.5
System flux (lm)
557
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
Rf fidelity index
92
Rg gamut index
98
LED Life / Failure Ratio
L70B50>55.000h_Tc=85°C
Beam angle C0-180 (º)
23
Beam angle C90-270 (º)
23
Extreme cut off
No
Electrical
Forward voltage (V)
12.3
LED current (mA)
600
Driver
Remote
Physical
Color
Black
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
35
Transversal tilting (°)
35
Recessed depth (in)
5.27
Net weight (lb)
0.36
Package volume (in)
61.02
IP internal
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class G
Replaceable (LED only) light source by an end-user
Replaceable control gear by a professional
Accessories & Power Supply
Spare Parts
.
Spot Lens for Eclectic 70
08.0711.00
.
Medium Lens for Eclectic 70
08.0712.00
.
Flood Lens for Eclectic 70
08.0713.00
.

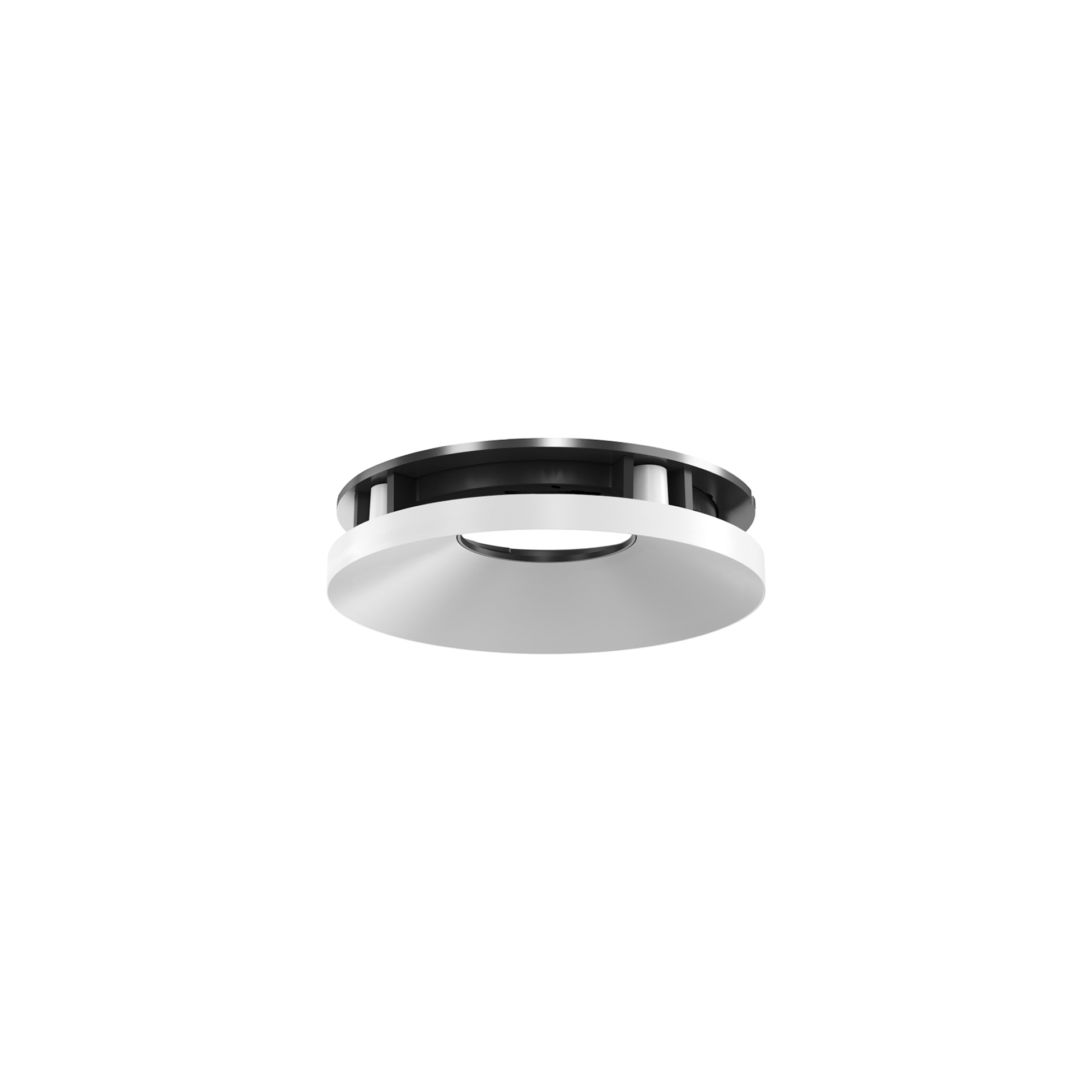

Cone Frontal for Eclectic 70
08.0721.14
.

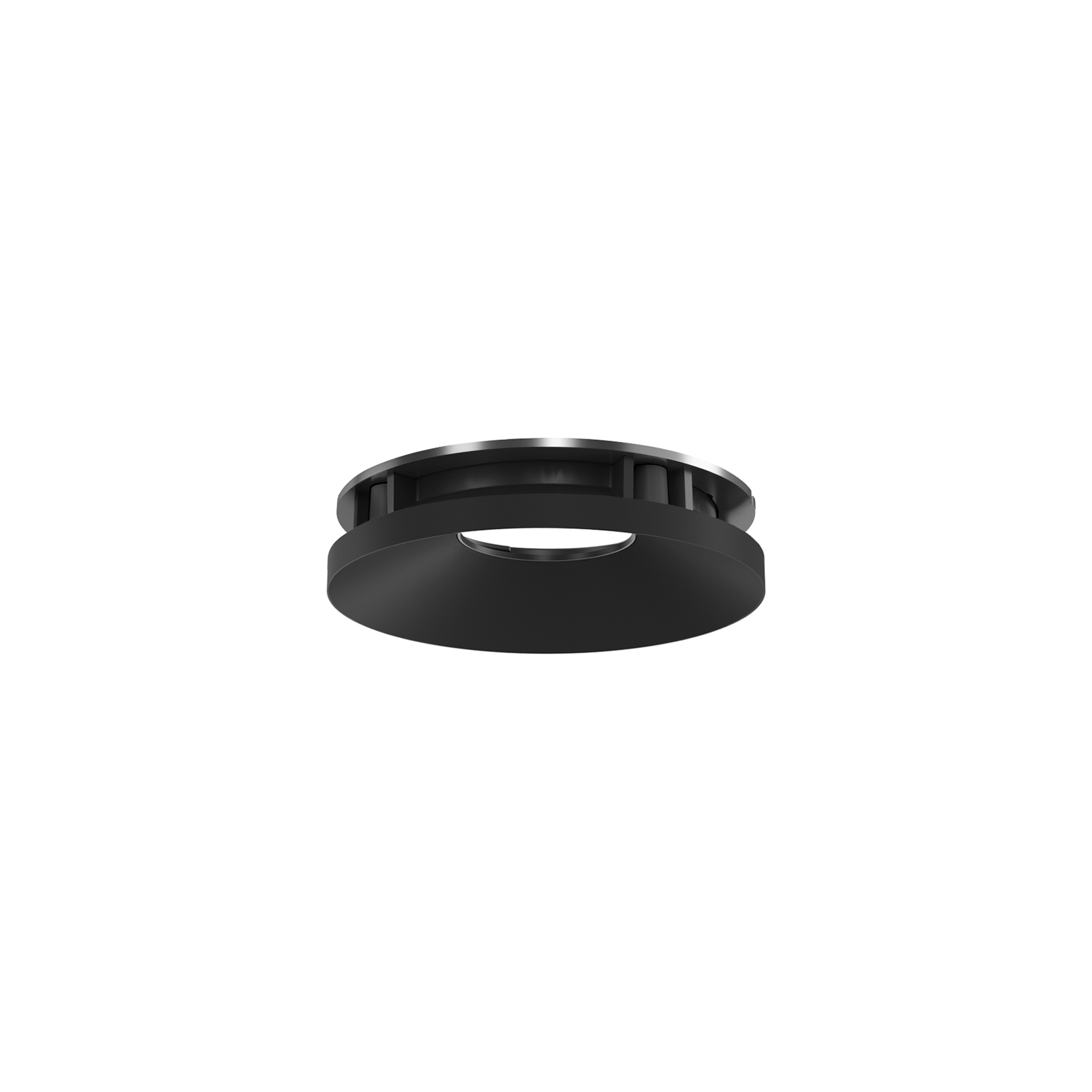

Cone Frontal for Eclectic 70
08.0721.40
.

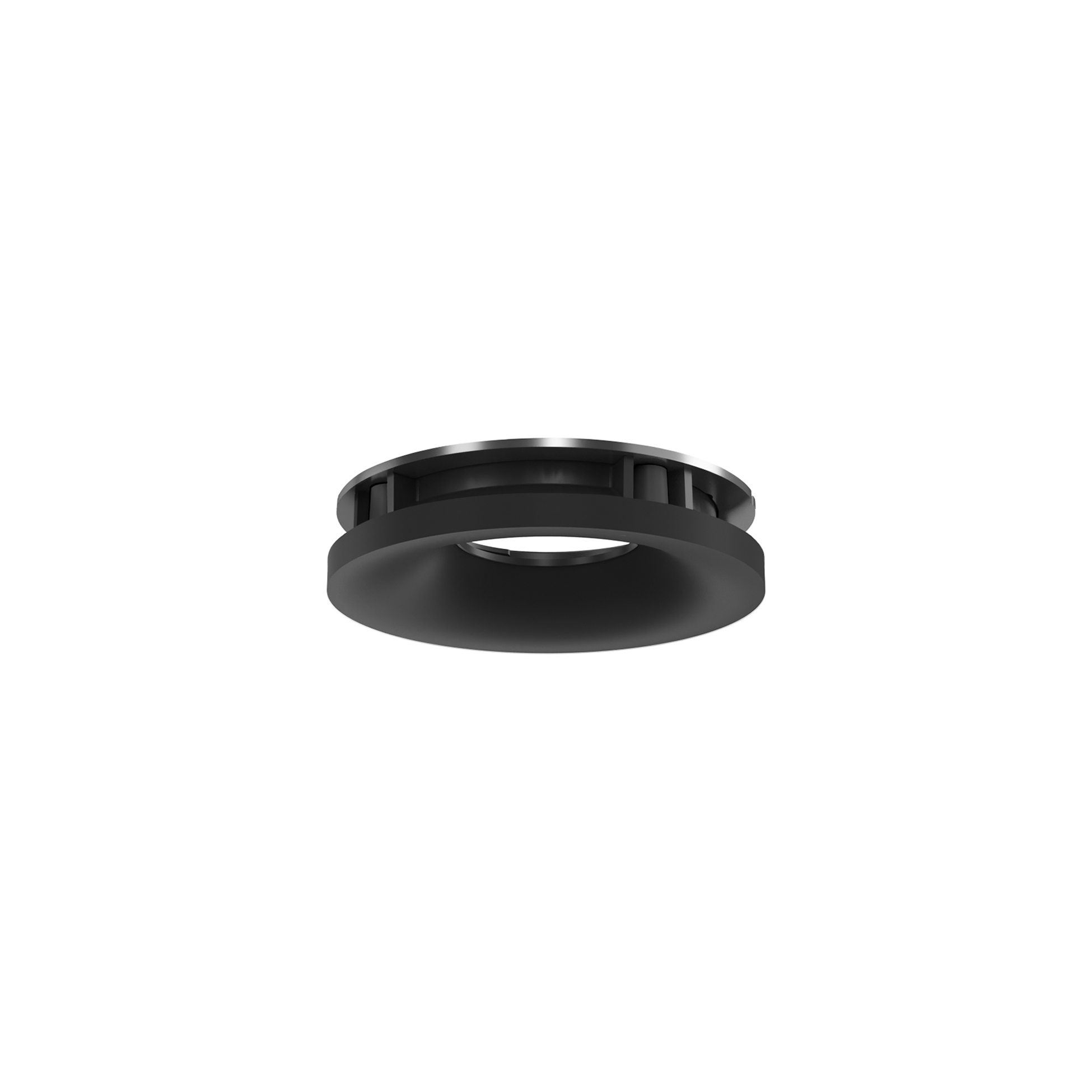

Soft Frontal for Eclectic 70
08.0722.14
.

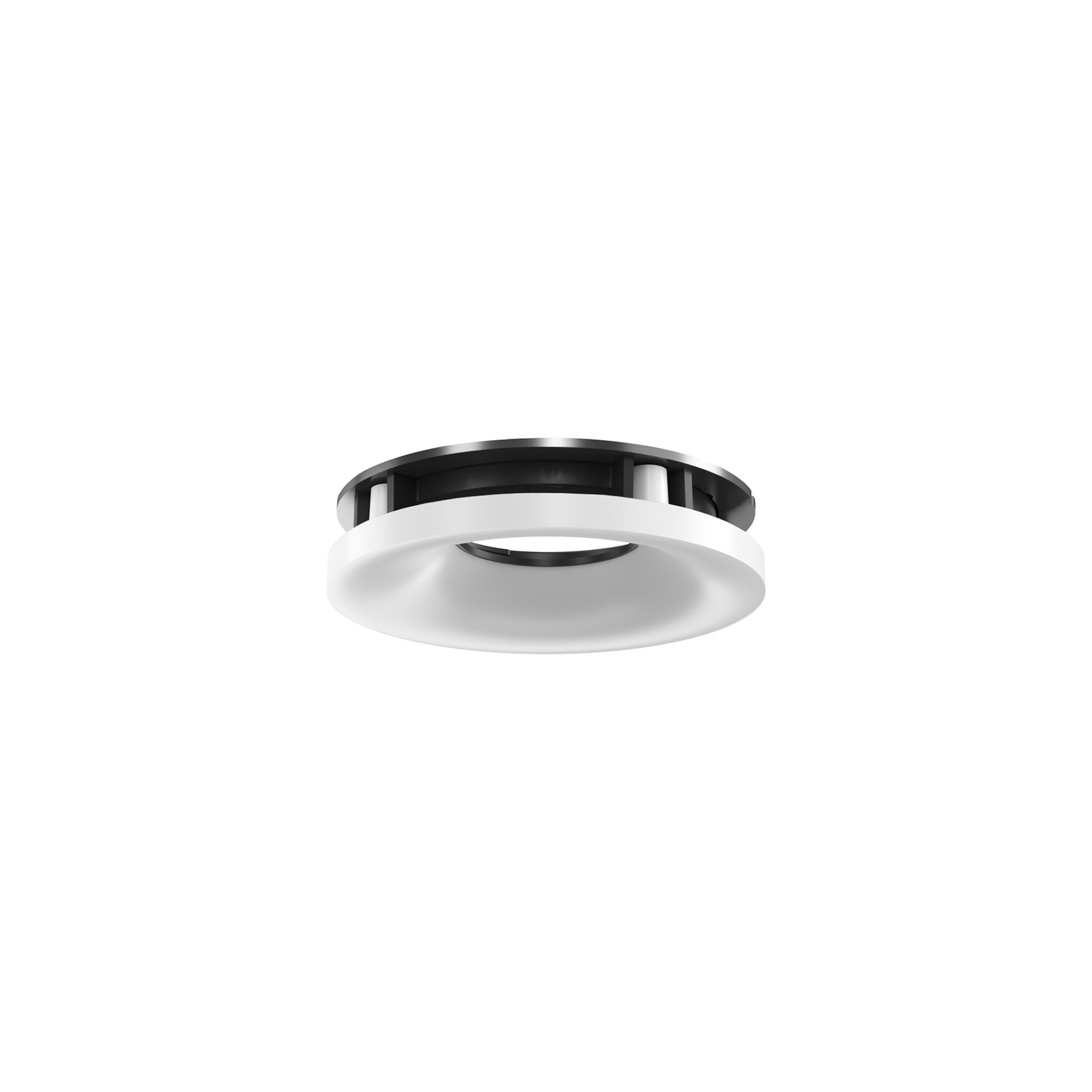

Soft Frontal for Eclectic 70
08.0722.40
.

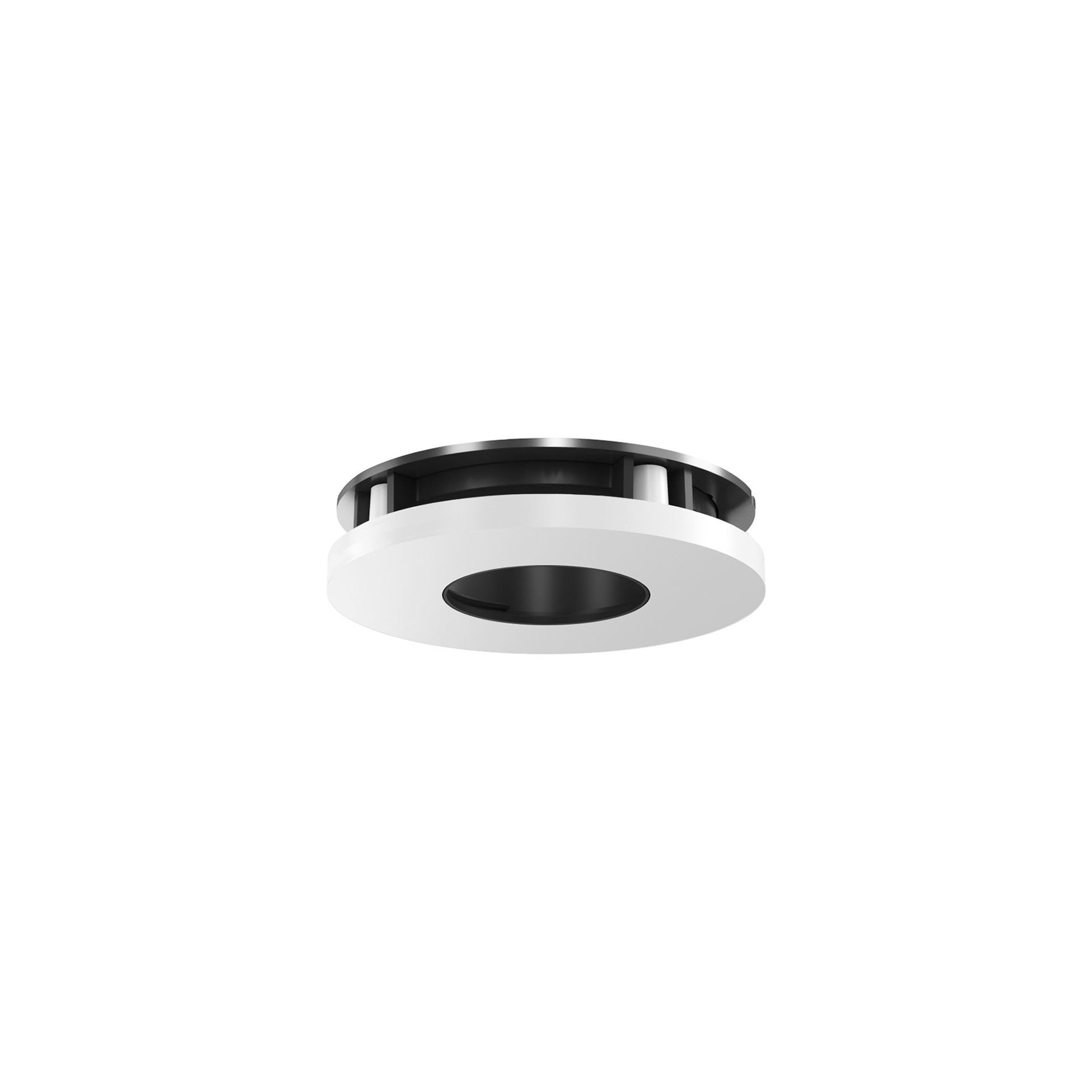

Flat Frontal for Eclectic 70
08.0723.14
.
Flat Frontal for Eclectic 70
08.0723.40
.
Module Fix for Eclectic 70
08.0739.00
.
Module Adjustable for Eclectic 70
08.0740.00
