08.7066.00A90

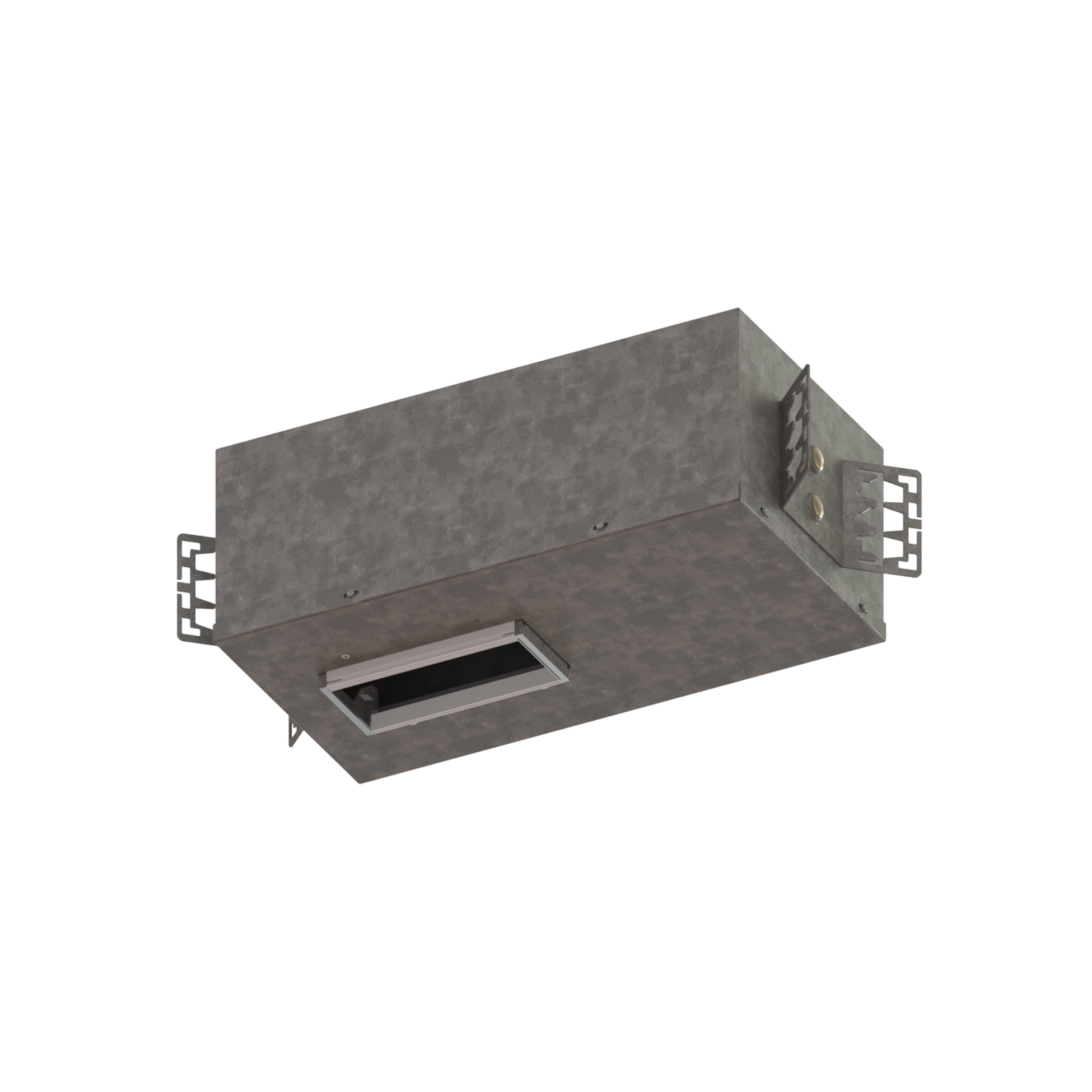

Light Shadow 4 Lights Adjustable Trim-Trimsless, Airtight Housing for New construction, Integral 0-10V dimmable driver. CCEA Chicago Plenum

Light Shadow 4L adjustable Airtight Housing for New construction, Integral 0-10V dimmable driver. CCEA Chicago Plenum

Technical Drawing
08.7066.00.90-in
Main specifications
Environments
Indoor dry location
Power (W)
10.8
Electrical
Frequency (Hz)
50/60
Main voltage (Vac)
120-277
LED current (mA)
900
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable 0-10V
Dimming range (%)
1-100%
Physical
Length (in)
11.9
Net weight (lb)
10.37
CE
UL

Download

Tech spec pdf
Mounting instructions
