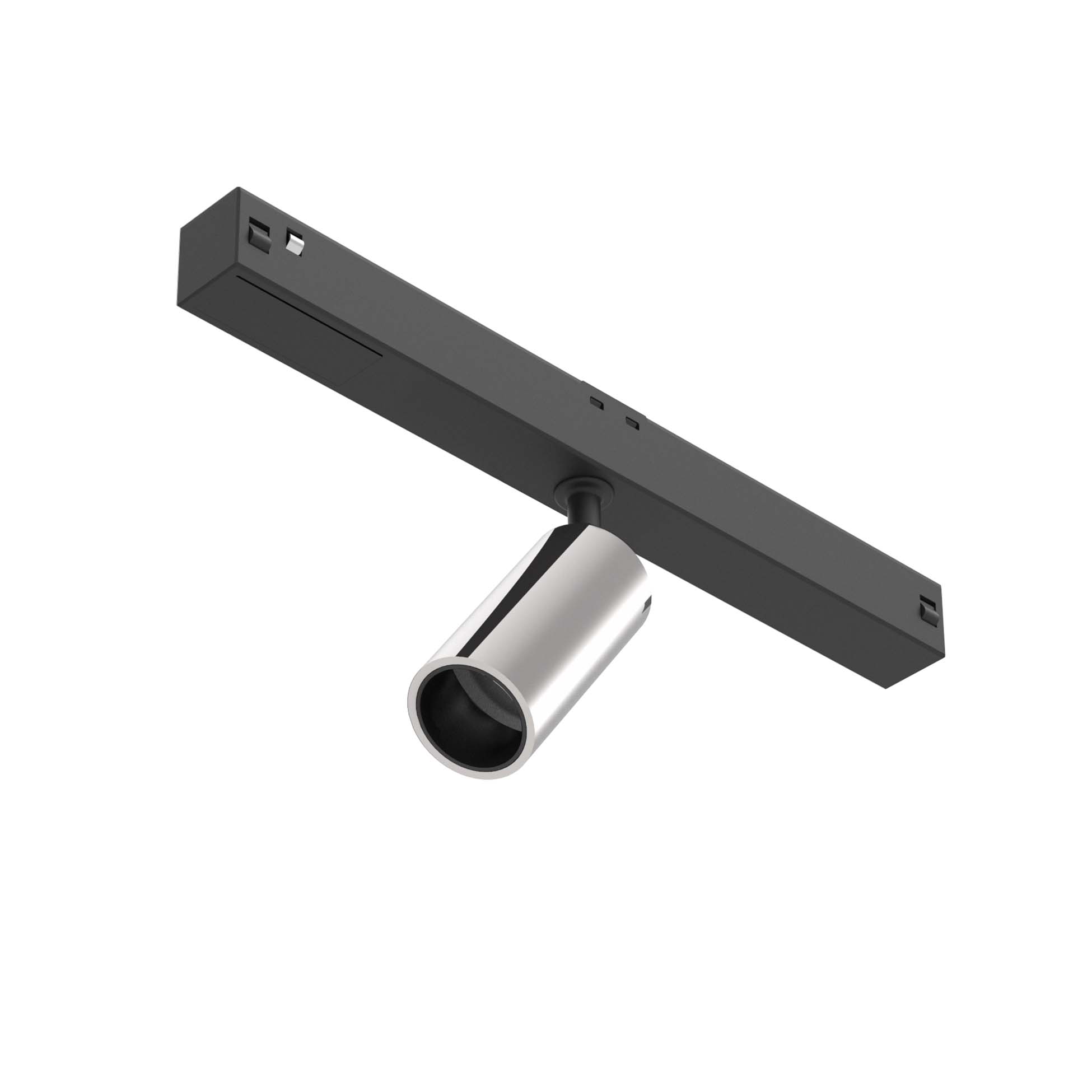

03.8032.05BDA Polished AluminiumSpot 50 Dali Version
Designed by FLOS Architectural, 2017
Accent lighting LED module.
LED - Power LED - 3.5W - 205lm - 2700K - CRI> 90 - Beam° 26
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light Source Type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
3.5
System power (W)
3.5
Source flux (lm)
286
System flux (lm)
205
Efficacy (lm/W)
58.57
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
26
Beam angle C90-270 (º)
26
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
III
Forward voltage (V)
48
LED current (mA)
250
Driver
Remote excluded
Dimmable
Yes
Dimming type
Dimmable DALI 2
Dimming range (%)
30-100
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Color
Polished Aluminium
Trim
No
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
90
Length (in)
7.01
IP internal
20
Notes
Only compatible with DALI profile version.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
